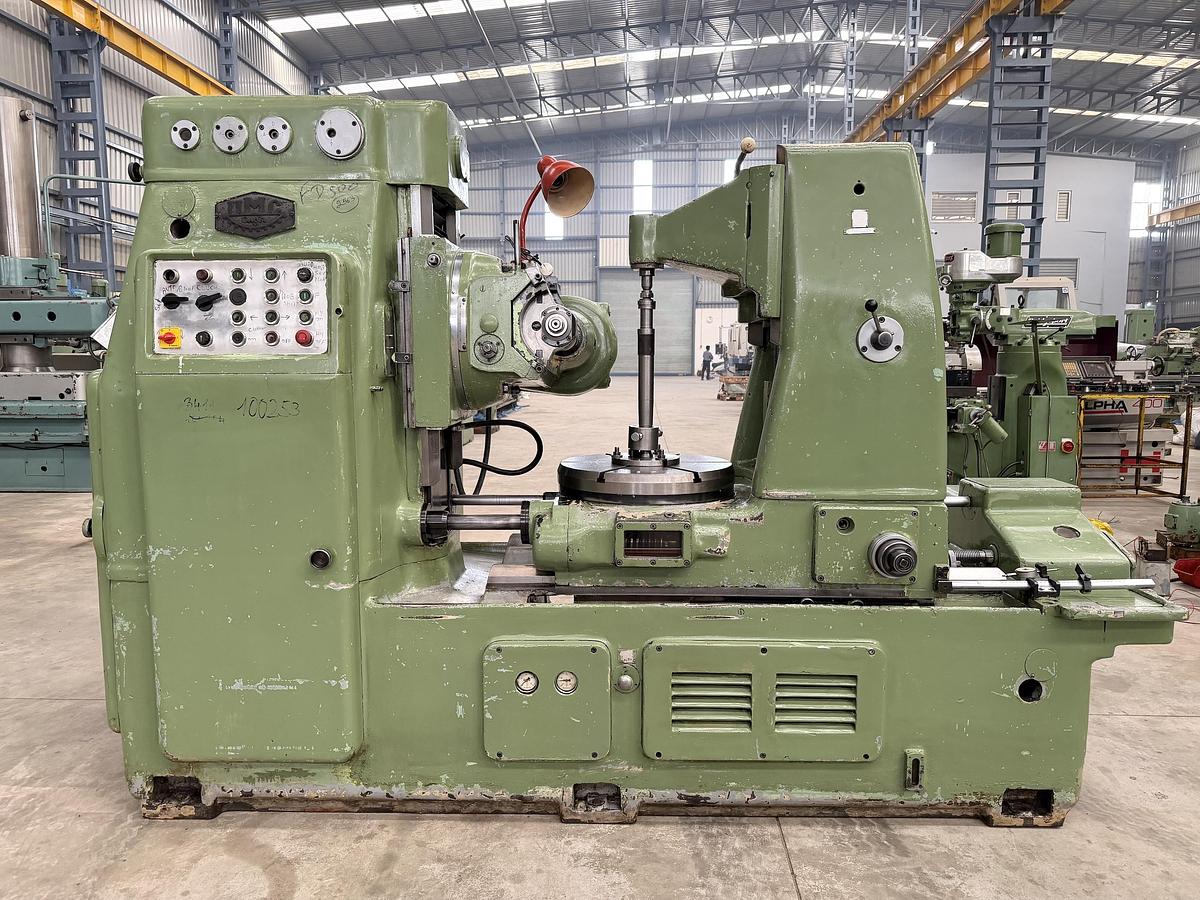

Cugir FD-500 Hydraulic Gear Hobbing Machine

Cugir (Romania) make Hydraulic Gear Hobbing Machine in excellent working condition. The model of the machine is FD-500 and the Maximum Module Capacity is 8 Modules and Maximum Gear Diameter is 500 mm. It is a complete Auto-Cycle type machine suitable for Spur Gears, Helical Gears, Worm-Wheels, Sprockets and all other Gear Hobbing applications. The machine is complete with lots of Arbours, Mandrels, complete set of Change Gears, Coolant Tank, Pump and many other accessories. The technical details are as follows -

Make - Cugir (Romania)

Model - FD-500

Max. Module - 8 modules

Max. Diameter of the Gear - 500 mm

Max. Vertical Travel of Hob-Slide - 280 mm

Table Diameter - 500 mm

Max. Hob Cutter Size - Diameter 170 mm x 180 mm Length

Max. Hob Shifting - 110 mm

Max. Height between Table Top to Center - 550 mm

Total Weight of the Machine - 6.20 Tons (Approximately)

- It is an Auto-Cycle High-Production Hydraulic Gear Hobbing Machine.

- Complete with lots of Arbours, Mandrels, Change Gears, & many other accessories.

- Complete with Coolant Tank, Pump, Splash Guards, etc.

- Machine is in excellent working condition.
