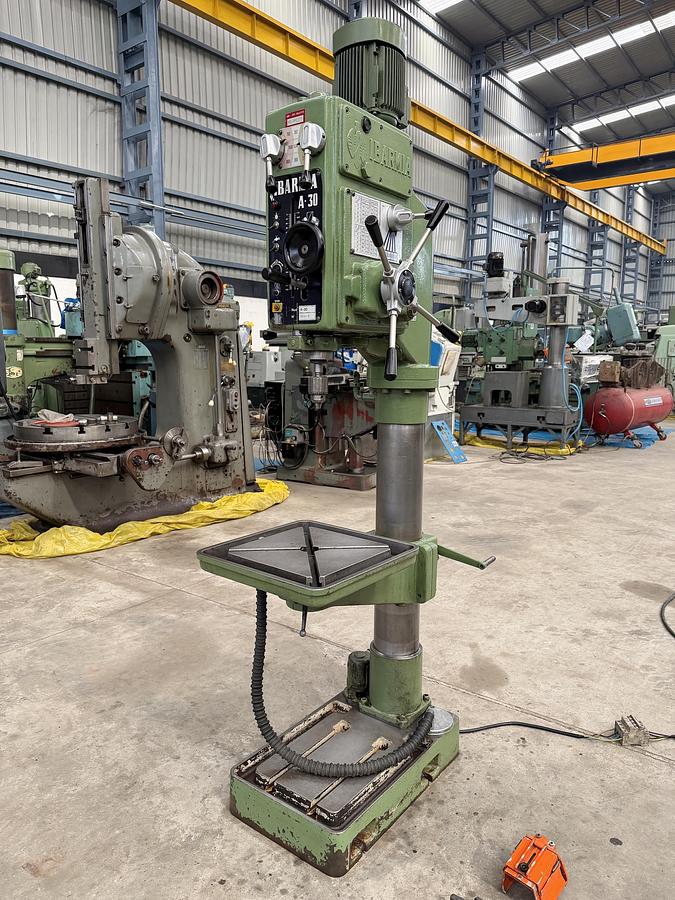

Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine
Ibarmia Spain 32 mm Capacity Auto-Feed Pillar Drilling Machine
Contact us for price
Location:New Delhi, India
Description
Automatic Feed type All-Geared Pillar Drilling Machine made by Ibarmia (Spain) in excellent working condition. The model of the machine is A-30 and the Drilling Capacity is 32 mm. The machine is also complete with its Coolant Tank and Pump. The technical details are as follows -
Make - Ibarmia (Spain)
Model - A-30
Capacity - 32 mm
Spindle Diameter - 75 mm
Spindle Taper - MT-3
Spindle Feed Travel - 170 mm
Spindle Speeds - 95 rpm to 1500 rpm
Spindle Feed Travel Rates - 0.1 mm/rev to 0.3 mm/rev
Table Size - 450 mm x 450 mm
Base Clamping Size - 295 mm x 380 mm
Distance between Spindle Center to Vertical Pillar - 340 mm
Max. Height between Spindle to Table Top - 680 mm
Max. Height between Spindle to Base Top - 1150 mm
Vertical Pillar Diameter - 150 mm
- Equipped with a Rotating Type Table.
- Complete with Coolant Pump & In-built Tank.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Ibarmia |
| Model | A-30 |
| Condition | Used |
| Stock Number | 2509 |
| Make | Ibarmia (Spain) |
| Model | A-30 |
| Capacity | 32 mm |
| Spindle Diameter | 75 mm |
| Spindle Taper | MT-3 |
| Spindle Feed Travel | 170 mm |
| Spindle Speeds | 95 rpm to 1500 rpm |
| Spindle Feed Travel Rates | 0.1 mm/rev to 0.3 mm/rev |
| Table Size | 450 mm x 450 mm |
| Base Clamping Size | 295 mm x 380 mm |
| Distance between Spindle Center to Vertical Pillar | 340 mm |
| Max. Height between Spindle to Table Top | 680 mm |
| Max. Height between Spindle to Base Top | 1150 mm |
| Vertical Pillar Diameter | 150 mm |
| Other Information 1 | - Equipped with a Rotating Type Table. |
| Other Information 2 | - Complete with Coolant Pump & In-built Tank. |
| Other Information 3 | - Machine is in excellent working condition. |
