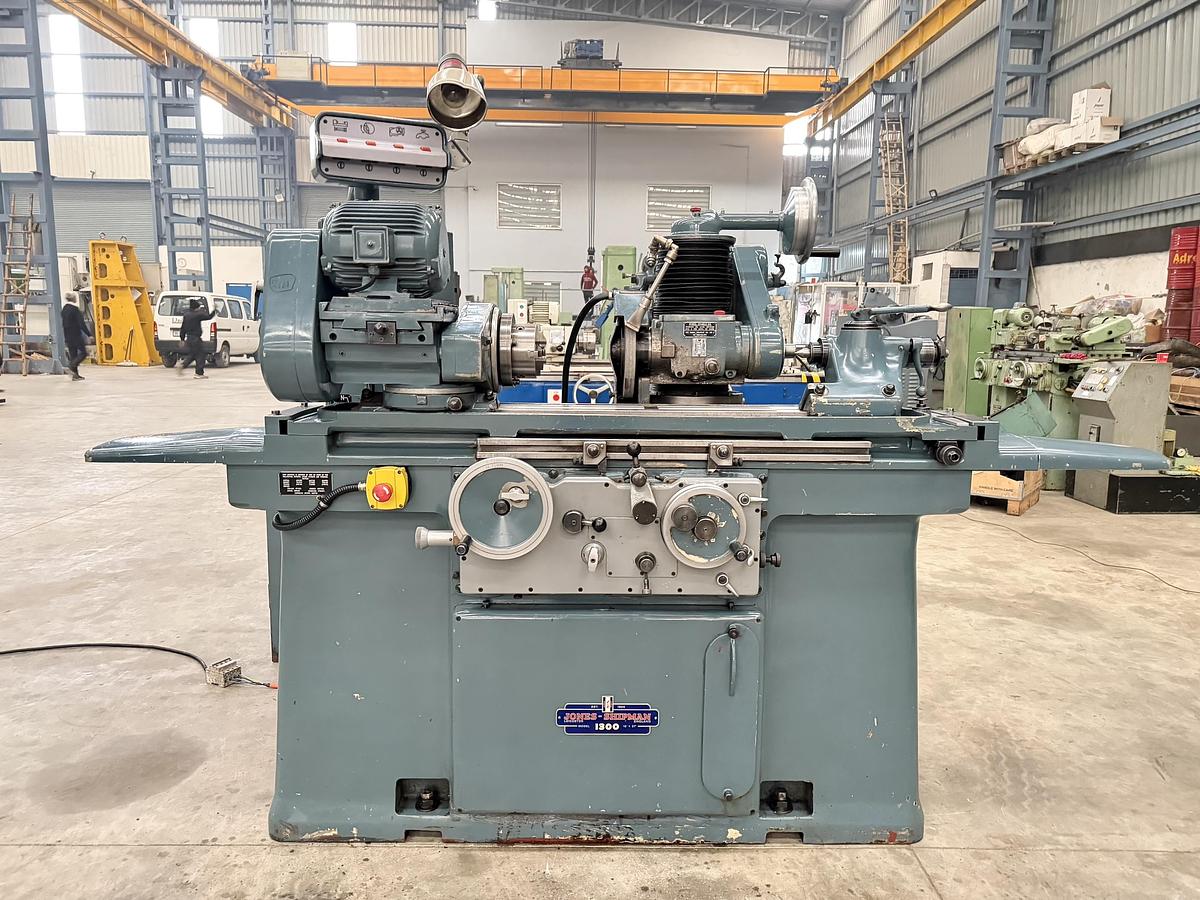

Jones & Shipman 1300 Type EIUR Universal Cylindrical Grinder Machine

Precision Universal Cylindrical Grinding Machine made by Jones & Shipman (England) in excellent working condition. The model of the machine is 1300 Type EIUR and it is designed for external precision grinding of all kinds, and fitted with a rising and falling swivelling wheel-head for handling all types of tool and cutter grinding operations. The wheel spindle carries an external grinding wheel for cylindrical grinding and a cup or saucer wheel for tool and cutter grinding. Internal grinding is provided by swivelling the wheel-head through 180 degrees. The machine is complete with a 3-point steady, 2-point steady, wheel dresser, coolant tank and pump, and many other accessories. The technical details are as follows -

Make - Jones & Shipman (England)

Model - 1300 Type EIUR

Center Height - 127 mm (5")

Max. Job Diameter - 254 mm (10")

Max. Length of Job - 686 mm (27")

Grinding Wheel Size - Diameter 254 mm x 31.75 mm Width

Work-Head Speeds - 40 rpm to 320 rpm

Table Swivel Angle - +20 degree to -18 degree

- Equipped with Internal Grinding Attachment.

- Vertical Travel of the Wheel-Head for all types of Tool & Cutter Grinding Applications.

- Features like Automatic Depth Adjustment "Auto-Cut".

- Micro-Feed Adjustments on both Table & Wheel-Head Travel.

- With a 3-point steady, 2-point steady, Wheel Dresser, & many other accessories.

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.
