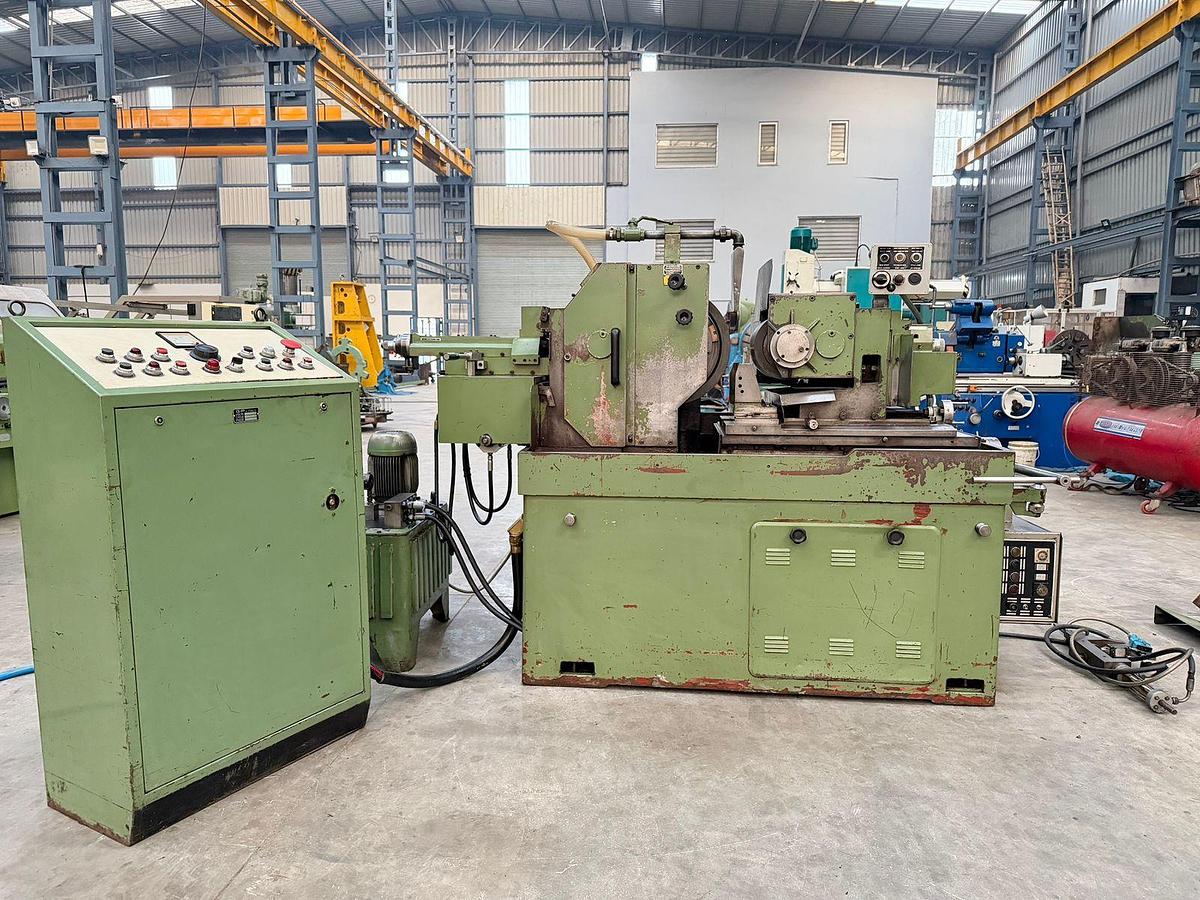

Ghiringhelli (Italy) make Centerless Grinding Machine in excellent working condition. The model of the machine is 200 and it is a Fully Auto-Cycle type Machine having features like Automatic Rapid Travels, Automatic Feed Travels, Spark-Out etc. The machine can be used in Automatic Mode, Semi-Automatic Mode as well as in Manual Mode. The technical details are as follows -


Make - Ghiringhelli (Italy)

Model - 200

Grinding Wheel Diameter - 500 mm

Wheel Width - 200 mm

Control Wheel Diameter - 300 mm

Control Wheel Feed Angle - +5 degree to -5 degree

Control Wheel Slide Swivel Angle - +5 degree to -5 degree (for Taper Jobs)

Main Spindle Motor - 15 kW

- Feature of Fully Automatic & Semi-Automatic In-Feed Grinding Cycles.

- The Machine can work in Manual Mode as well.

- Equipped with Hydraulic Wheel Dressers.

- Control Wheel can be titled for Through-Feed Grinding.

- Control Wheel can be rotated for Taper Grinding Operations.

- Infinitely Variable Speeds of the Control Wheel.

- Complete with a Hydraulic type Automatic Job Ejector Unit.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerGhiringhelli
Model200
ConditionUsed
Stock Number2549
MakeGhiringhelli (Italy)
Model200
Grinding Wheel Diameter500 mm
Wheel Width200 mm
Control Wheel Diameter300 mm
Control Wheel Feed Angle+5 degree to -5 degree
Control Wheel Slide Swivel Angle+5 degree to -5 degree (for Taper Jobs)
Main Spindle Motor15 kW
Other Information 1- Feature of Fully Automatic & Semi-Automatic In-Feed Grinding Cycles.
Other Information 2- The Machine can work in Manual Mode as well.
Other Information 3- Equipped with Hydraulic Wheel Dressers.
Other Information 4- Control Wheel can be titled for Through-Feed Grinding.
Other Information 5- Control Wheel can be rotated for Taper Grinding Operations.
Other Information 6- Infinitely Variable Speeds of the Control Wheel.
Other Information 7- Complete with a Hydraulic type Automatic Job Ejector Unit.
Other Information 8- Machine is in excellent working condition.
