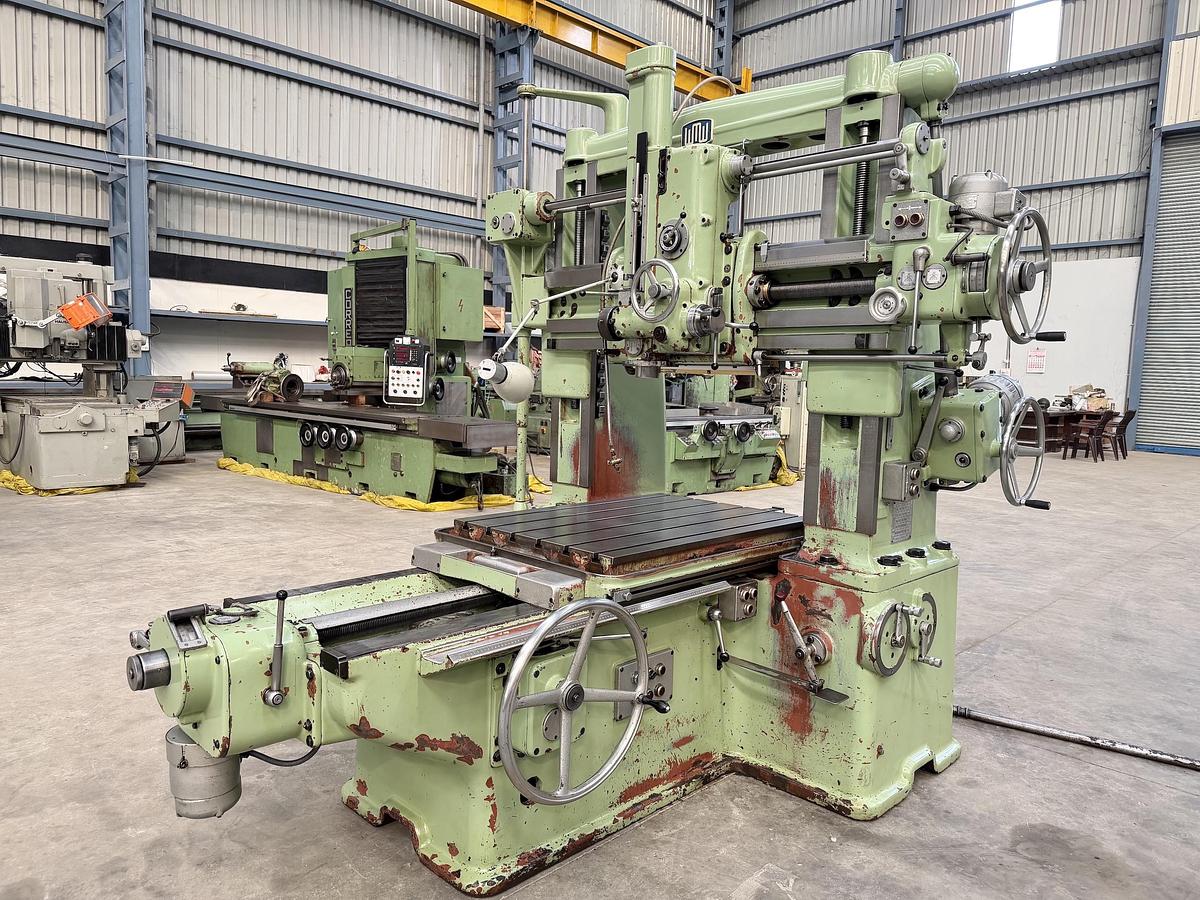

WMW Germany BL-5 Vertical Jig Boring Machine

Description

WMW (Germany) make Vertical Jig Boring Machine in excellent working condition. It is a Double Column type High-Precision Jig Boring Machine having a Table Size of 760 mm x 1090 mm. The technical details are as follows -

Make - WMW (Germany)

Model - BL-5

Table Size - 760 mm x 1090 mm

Longitudinal Travel of Table - 1000 mm

Cross Travel of the Boring-Head - 700 mm

Spindle Speeds - 3 rpm to 750 rpm

Spindle Feed Travel - 250 mm

Spindle Feed Rates - 0.03 mm/rev - 0.18 mm/rev

Spindle Taper - MT-4

Spindle Diameter - 90 mm

Distance between Columns - 1020 mm

Max. Height between Table to Spindle - 900 mm

Weight of the Machine - 4.88 Tons (approximately)

- Motorised Rapid Travels on Longitudinal, Cross & Vertical Travels.

- Machine is in excellent working condition.

Specifications

Manufacturer	WMW
Model	BL-5
Condition	Used
Stock Number	2675
Make	WMW (Germany)
Model	BL-5
Table Size	760 mm x 1090 mm
Longitudinal Travel of Table	1000 mm
Cross Travel of the Boring-Head	700 mm
Spindle Speeds	3 rpm to 750 rpm
Spindle Feed Travel	250 mm
Spindle Feed Rates	0.03 mm/rev - 0.18 mm/rev
Spindle Taper	MT-4
Spindle Diameter	90 mm
Distance between Columns	1020 mm
Max. Height between Table to Spindle	900 mm
Weight of the Machine	4.88 Tons (approximately)
Other Information 1	- Motorised Rapid Travels on Longitudinal, Cross & Vertical Travels.
Other Information 2	- Machine is in excellent working condition.
