Stanko Russia 5350 Spline Shaft Hobbing Machine
Stanko Russia 5350 Spline Shaft Hobbing Machine
Contact us for price
Location:New Delhi, India
Description

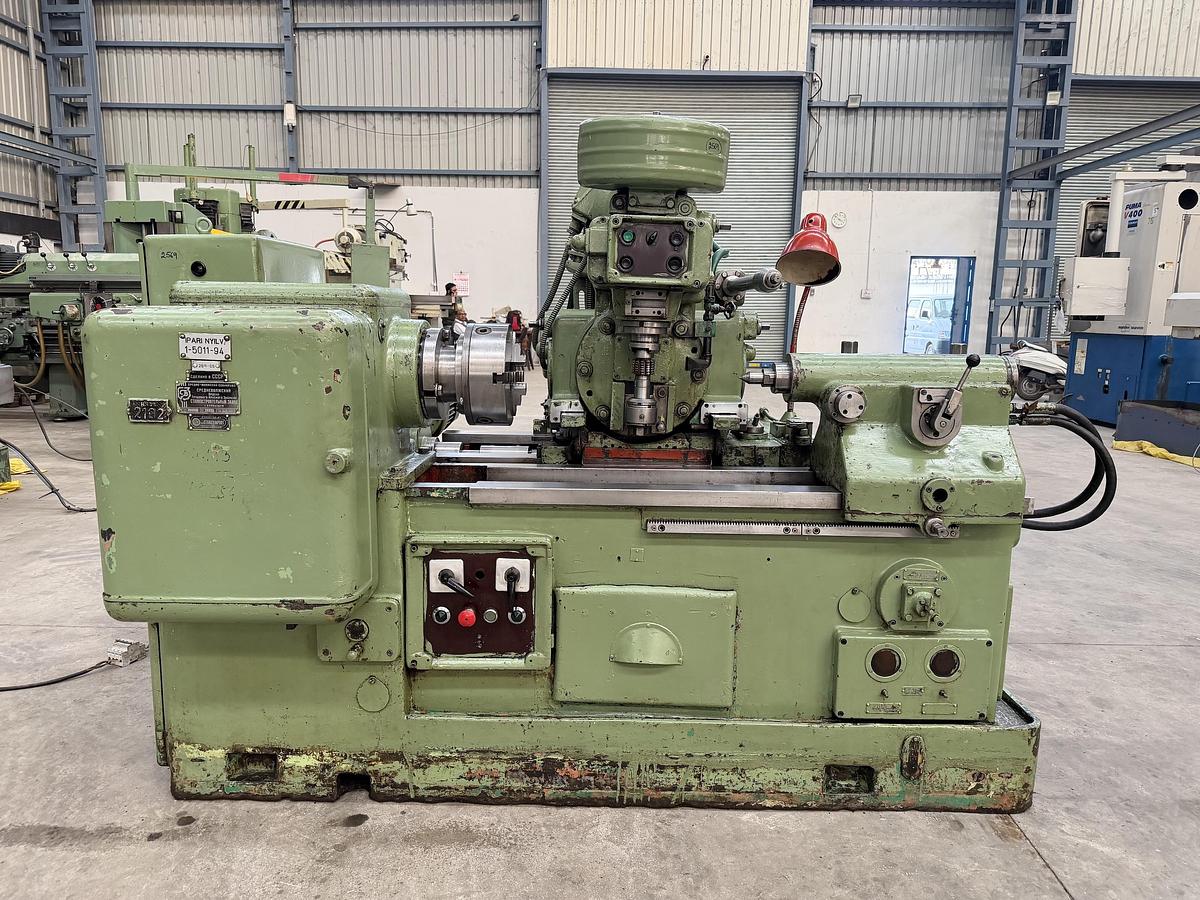

Stanko (Russia) make Spline Shaft Hobbing Machine, model 5350, in excellent working condition. This is a horizontal type machine, ideally suited for spline shaft hobbing as well as for machining gears that are integrated with shafts. The technical details are as follows -
Make - Stanko (Russia)
Model - 5350
Max. Module Capacity - 6 Modules
Max. Hobbing Length - 500 mm
Max. Gear Cutting Diameter - 150 mm
Max. Distance between Centers - 750 mm
Spindle Bore - 105 mm
Hob Cutter Rotation Speeds - 80 rpm to 250 rpm
No. of Teeth - 4 to 36
Max. Swing Diameter over Bed - 500 mm
Max. Swing Diameter over Hob-Cutter Slide - 300 mm
- Equipped with Hydraulic Tail-Stock & complete with many accessories.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Stanko |
| Model | 5350 |
| Condition | Used |
| Stock Number | 2569 |
| Make | Stanko (Russia) |
| Model | 5350 |
| Max. Module Capacity | 6 Modules |
| Max. Hobbing Length | 500 mm |
| Max. Gear Cutting Diameter | 150 mm |
| Max. Distance between Centers | 750 mm |
| Spindle Bore | 105 mm |
| Hob Cutter Rotation Speeds | 80 rpm to 250 rpm |
| No. of Teeth | 4 to 36 |
| Max. Swing Diameter over Bed | 500 mm |
| Max. Swing Diameter over Hob-Cutter Slide | 300 mm |
| Other Information 1 | - Equipped with Hydraulic Tail-Stock & complete with many accessories. |
| Other Information 2 | - Machine is in excellent working condition. |
