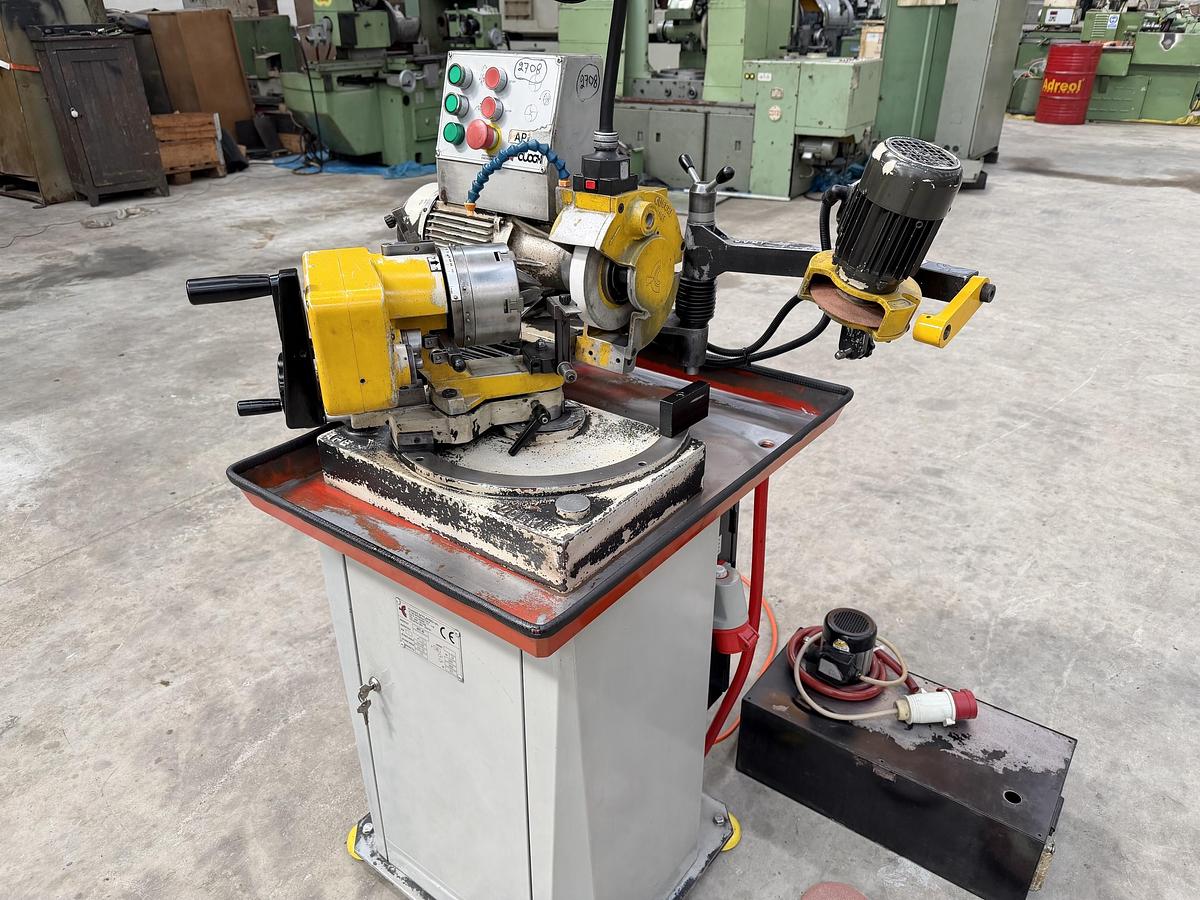

Cuoghi Italy APE-40 Tool Sharpening Machine

Cuoghi (Italy) make Tool Sharpening Machine in excellent working condition. The model of the machine is APE-40 and the Diameter Range Capacity is 2 mm to 40 mm. It is a semi-automatic sharpening machine designed & built to sharpen twist drills, 2-rake drills, plate drills, dead hole drills, Multi-diameter drills, countersinking drills, pilot bits, diamond drills, prismatic and self-centering drills, 2-12 cutting edge left or right flute drills, end mills, taps etc. The machine is equipped with its Web-Thinning attachment as well. The technical details are as follows -

Make - Cuoghi (Italy)

Model - APE-40

Diameter Range - 2 mm to 40 mm

Min. & Max. Drill Angle - 40 degree to 180 degree

Grinding Wheel Size - Diameter 200 mm x 32 mm Width

Chuck Diameter - 130 mm (6-jaw type)

- Machine is equipped with its Web Thinning Attachment.

- Suitable for both Dry Grinding and for Wet Grinding applications.

- Equipped with a Wheel Dresser, Coolant Tank & Coolant Pump.

- Complete with spare Cams, Wheels, Wheel Flange & other accessories.

- Operating Manual & Electrical Drawing of the machine is available.

- Machine is in excellent working condition.
