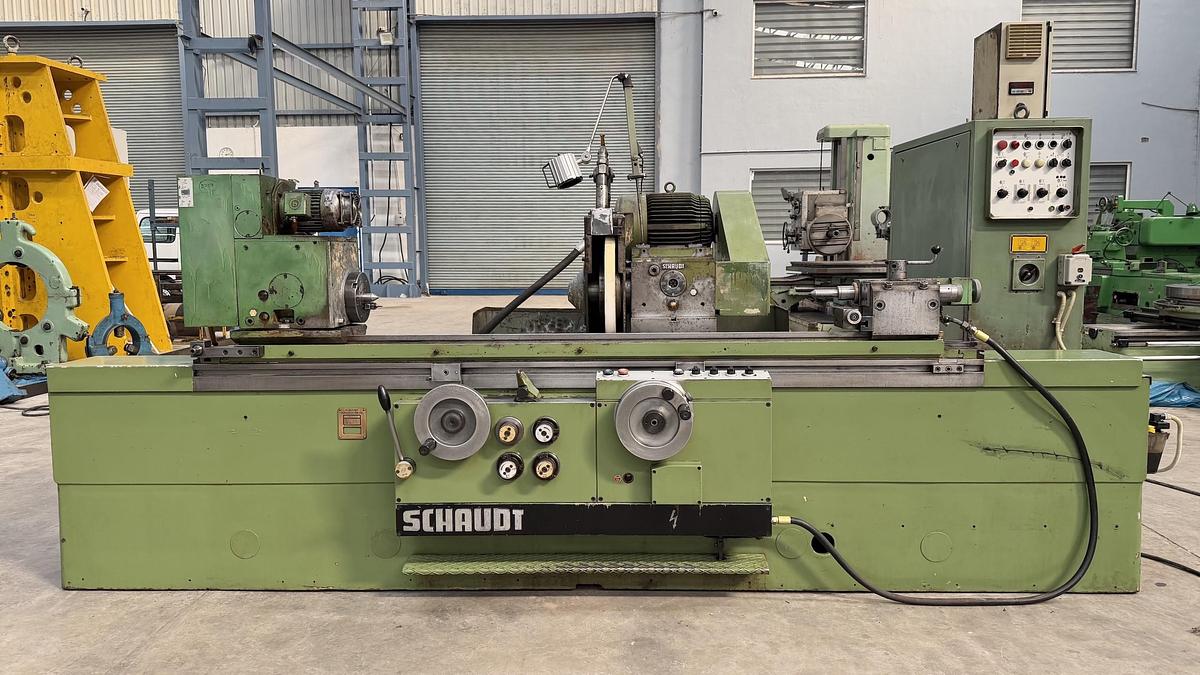

Schaudt Germany 1500 mm Heavy Duty Cylindrical Grinder Machine

Heavy Duty Cylindrical Grinding Machine made by Schaudt (Germany) in excellent working condition. The model of this machine is A401 N1500 and the Maximum Length of Job is 1500 mm. It is a complete Auto-Cycle machine having features of Automatic Depth Adjustment, Auto-Compensation, Automatic Plunge Cycles etc. The machine is complete with spare Wheel Flanges, many Centers, Wheel Balancing Shaft, Wheel Dresser, Job Carriers, Coolant Tank, Coolant Pump etc. All types of technical documentation - Operating Manual, Electrical Drawings etc are also available. The technical details are as follows -

Make - Schaudt (Germany)

Model - A401 N1500

Center Height - 150 mm

Max. Diameter of Job - 300 mm

Max. Grinding Length of Job - 1500 mm

Max. Clamping Length of Job - 1650 mm

Grinding Wheel Size - Diameter 500 mm x 80 mm Width

Least Count of the Machine - 2 Microns (0.002 mm)

Table Rotation - +5 degree to -7 degree

- Machine can work in complete Auto-Cycle Mode.

- Features like Delay, Hydraulic Tail-Stock, Manual Hydraulic Travel of Wheel-Head etc.

- Features like Auto-Cut, Auto-Compensation, Plunge Grinding, Spark-Out etc.

- With Wheel Dresser, Wheel Flanges, Centers, Job Carriers, Wheel Balancing Shaft etc.

- Complete with Coolant Tank, Coolant Pump, Splash Guards etc.

- Operating Manual, Electrical Drawings, and other documentation are available.

- Machine is in excellent working condition.
