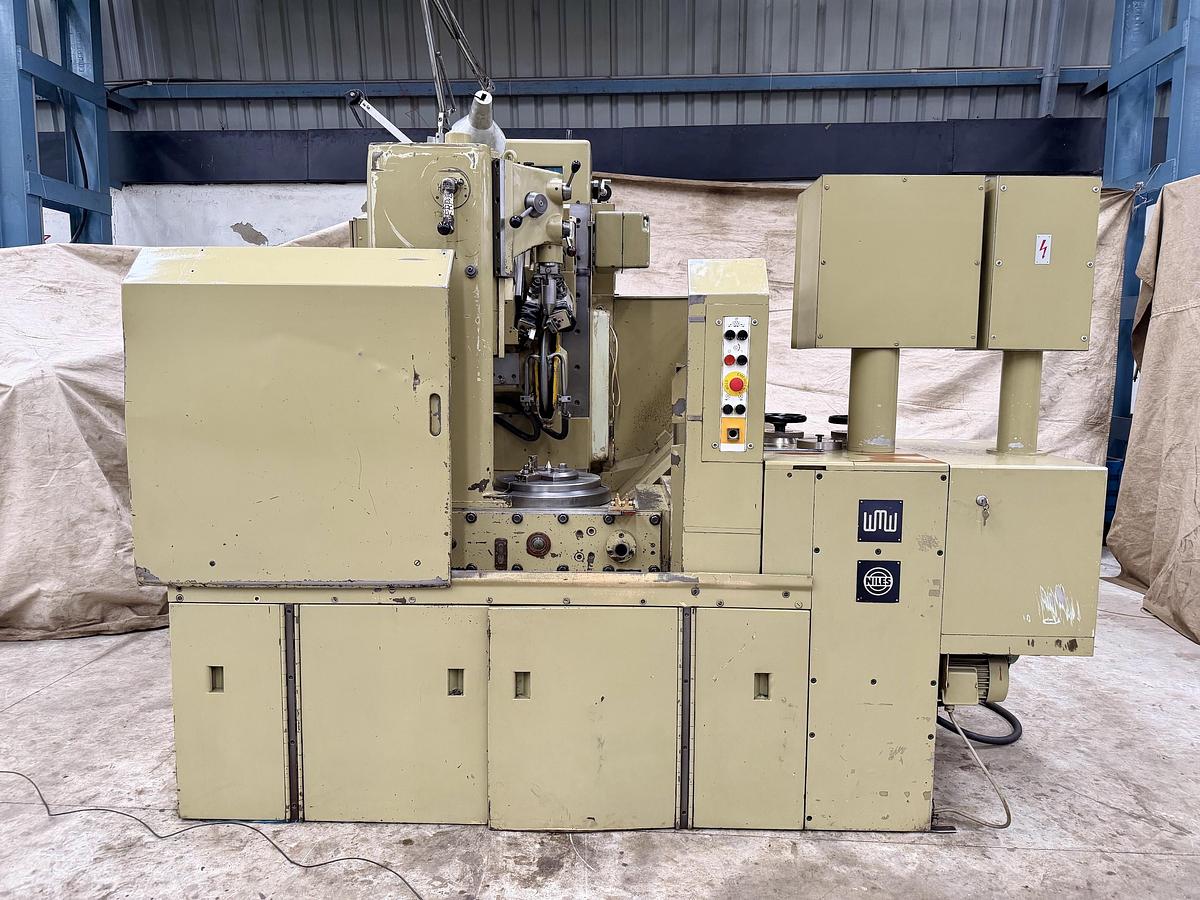

WMW Niles ZSTZ 315 C2P Gear Grinding Machine

Automatic Gear Grinding Machine made by WMW Niles (Germany) in excellent working condition. The model of this machine is ZSTZ 315 C2P and it is an Auto-Cycle type machine. The Maximum Gear Diameter in this machine is 350 mm and Maximum Module Capacity is 10 Modules. The machine is complete with Change Gears, Wheel Flange, Operating Manual, Electrical Drawings, and other documentation etc. The technical details are as follows -

Make - WMW Niles (Germany)

Model - ZSTZ 315 C2P

Max. Gear Diameter - 350 mm

Min. and Max. Module Capacity - 1.5 to 10 Modules

Max. Width of Gear - 215 mm

Min. Gear Diameter - 30 mm

Min. and Max. Number of Teeth - 5 to 140

Max. Helix Angle - 45 degree

Grinding Wheel Size - Diameter 350 mm x 32 mm Width

- Auto-Cycle Working with Auto-Dressing, Auto-Cut, Auto-Compensation etc.

- Machine can be used in Full-Auto, Semi-Auto, & also in Manual Mode.

- Complete with Change Gears, Wheel Flange, Wheels, Job Support, Leveling Pads, etc.

- Operating Manuals, Electrical Drawings & other documentation is available.

- Machine is in excellent working condition.
