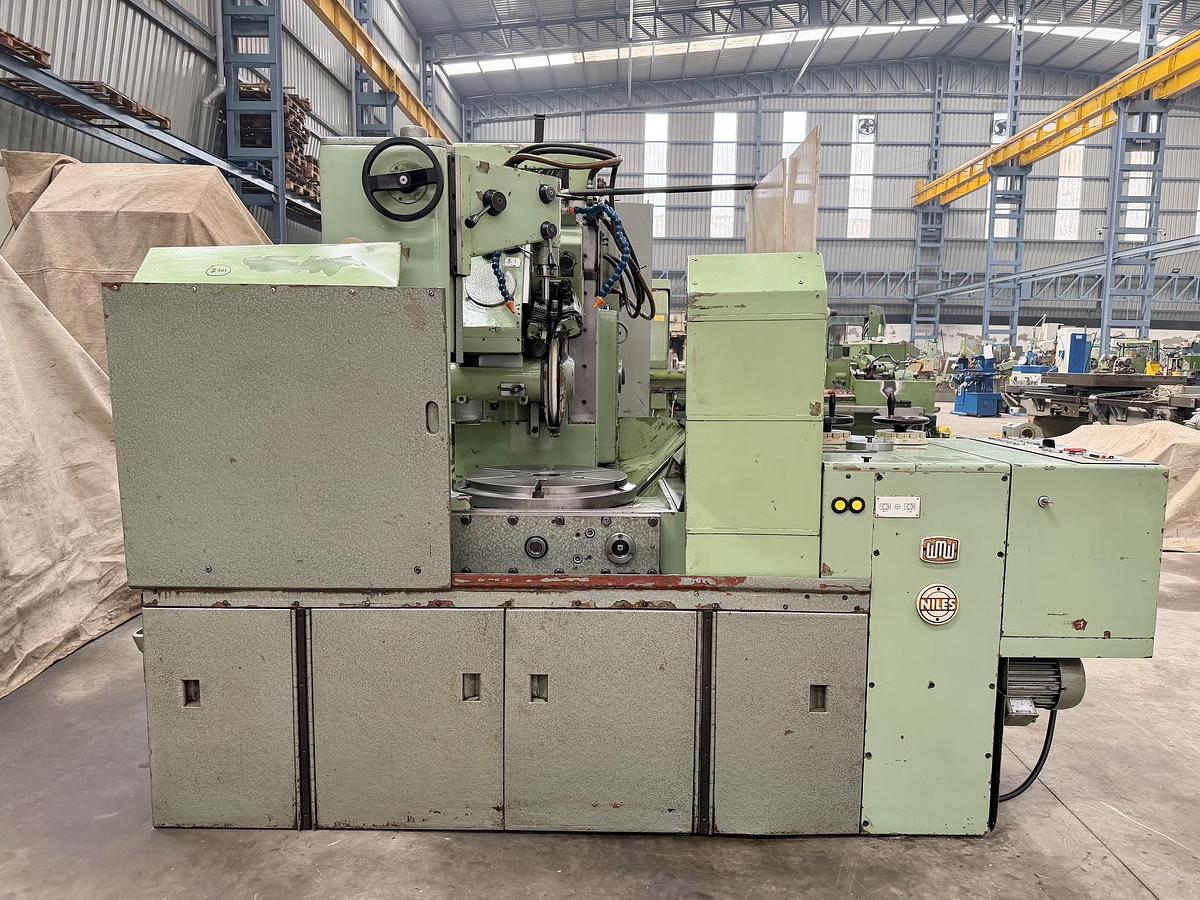

WMW Niles ZSTZ 500C Gear Grinding Machine

WMW Niles ZSTZ 500C Gear Grinding Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

Gear Grinding Machine made by WMW Niles (Germany) in excellent working condition. The model of this machine is ZSTZ 500C and the Maximum Gear Diameter in this machine is 500 mm and Maximum Module Capacity is 10 Modules. The machine has a feature of Hydraulic Rapid Travels of the Grinding Wheel Head. The machine is complete with Change Gears, Coolant Tank & Pump, Electrical Drawings, etc. The technical details are as follows -


Make - WMW Niles (Germany)

Model - ZSTZ 500C

Max. Gear Diameter - 500 mm

Min. and Max. Module Capacity - 2 to 10 Modules

Max. Width of Gear - 150 mm

Min. Gear Diameter - 50 mm

Min. and Max. Number of Teeth - 12 to 140

Max. Helix Angle - 45 degree

Grinding Wheel Size - Diameter 350 mm x 25 mm Width

Table Diameter - 500 mm

- Feature of Hydraulic Rapid Travels of the Grinding Wheel Head.

- Complete with Change Gears, Coolant Tank, Coolant Pump, etc.

- Electrical Drawings of the machine are available.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerWMW Niles
ModelZSTZ 500C
ConditionUsed
Stock Number2701
MakeWMW Niles (Germany)
ModelZSTZ 500C
Max. Gear Diameter500 mm
Min. and Max. Module Capacity2 to 10 Modules
Max. Width of Gear150 mm
Min. Gear Diameter50 mm
Min. and Max. Number of Teeth12 to 140
Max. Helix Angle45 degree
Grinding Wheel SizeDiameter 350 mm x 25 mm Width
Table Diameter500 mm
Other Information 1- Feature of Hydraulic Rapid Travels of the Grinding Wheel Head.
Other Information 2- Complete with Change Gears, Coolant Tank, Coolant Pump, etc.
Other Information 3- Electrical Drawings of the machine are available.
Other Information 4- Machine is in excellent working condition.
