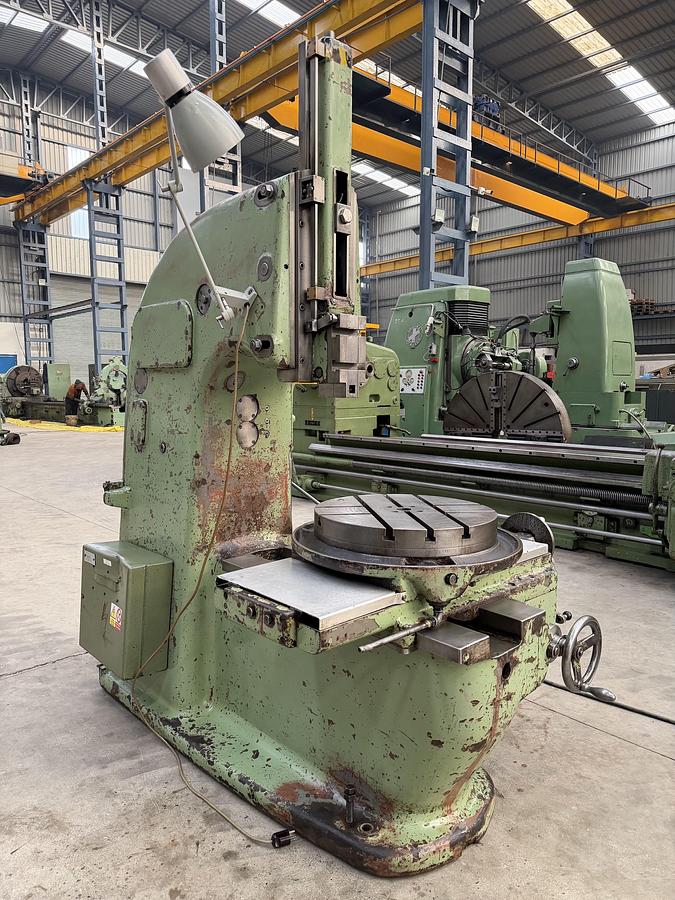

TOS Czech ST-250 Vertical Slotting Machine

Description

Vertical Slotting Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is ST250 and the Max. Stroke Length is 250 mm and the Table Diameter is 520 mm. The machine has automatic feed travels on Longitudinal Travel, Cross Travel and on Table Rotation. The technical details are as follows -

Make - TOS (Czech Republic)

Model - ST250

Max. Stroke Length - 250 mm

Table Diameter - 520 mm

Cross Travel of Table - 400 mm

Longitudinal Travel of Table - 450 mm

Height between Table Top to Machine Body - 365 mm

Distance between Tool-head edge to Column - 530 mm

Max. Distance between Table Center to Column - 800 mm

Stroke Rate - 18 strokes/min to 104 strokes/min

Feed Rate of Travel - 0.13 mm/stroke to 1.20 mm/stroke

Rotation of Head - 0 degree to 10 degrees

Weight of the Machine - 2.32 Tons (approximately)

- Automatic Feed Travel on Cross, Longitudinal & Rotation of Table.

- Complete with Chuck (Diameter 400 mm) & other accessories.

- Machine is in excellent working condition.

Specifications

Manufacturer	TOS
Model	ST250
Condition	Used
Stock Number	2690
Make	TOS (Czech Republic)
Model	ST250
Max. Stroke Length	250 mm
Table Diameter	520 mm
Cross Travel of Table	400 mm
Longitudinal Travel of Table	450 mm
Height between Table Top to Machine Body	365 mm
Distance between Tool-head edge to Column	530 mm
Max. Distance between Table Center to Column	800 mm
Stroke Rate	18 strokes/min to 104 strokes/min
Feed Rate of Travel	0.13 mm/stroke to 1.20 mm/stroke
Rotation of Head	0 degree to 10 degrees
Weight of the Machine	2.32 Tons (approximately)
Other Information 1	- Automatic Feed Travel on Cross, Longitudinal & Rotation of Table.
Other Information 2	- Complete with Chuck (Diameter 400 mm) & other accessories.
Other Information 3	- Machine is in excellent working condition.
