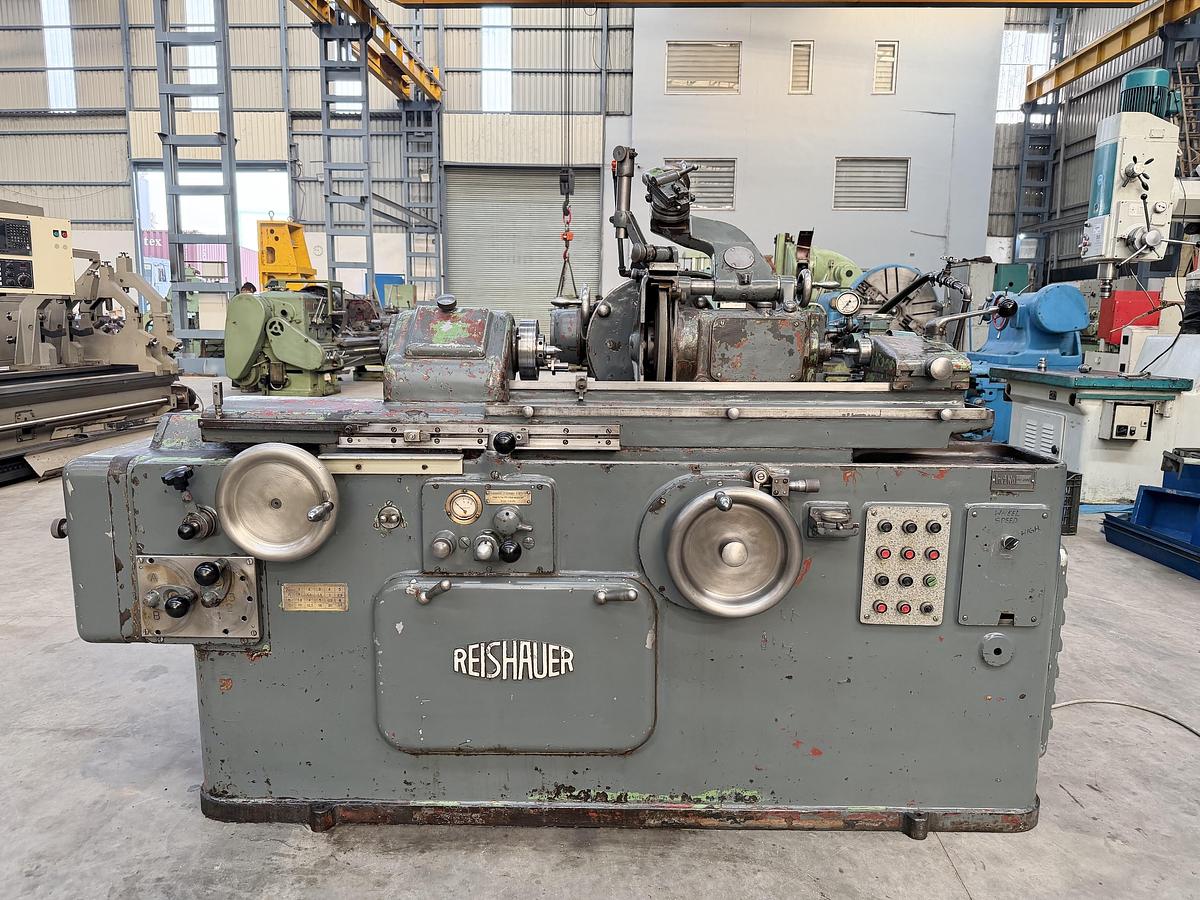

Reishauer Switzerland NRK Model Thread Grinding Machine

Reishauer (Switzerland) make Thread Grinding Machine in excellent working condition. The model of the machine is NRK and the Maximum Grinding Length is 450 mm. The machine is complete with its Single-Point Wheel Dresser, Crusher type Wheel Dresser, many Wheel Flanges, Grinding Wheels, Change Gears, many Crusher Rolls, Centers, Operating Manual, Coolant Tank, Pump, and many other accessories. The technical details are as follows -

Make - Reishauer (Switzerland)

Model - NRK

Max. Grinding Length - 450 mm

Job Diameter Range - 3 mm to 200 mm (over Bed)

Max. Job Diameter in Gap - 260 mm

Max. Distance between Centres - 700 mm

Minimum Pitch - 0.4 mm

Maximum Pitch - 80 mm

Grinding Wheel Diameter - 350 mm

Max. Inclination of Wheel-Head - +25 degree to -25 degree

Least Count of Wheel-Head Travels - 1 Micron (0.001 mm)

No. of Flutes (for Relief Grinding Attachment) - 1 to 16 Flutes

- Complete with a Single-Point type Wheel Dresser and Crusher type Wheel Dresser.

- Equipped with Relief Grinding Attachment.

- Complete with Change Gears, Wheel Flanges (total 7 pcs), Grinding Wheels, Centers, many Crusher Rolls etc.

- Complete with Coolant Tank, Coolant Pump & many other accessories.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.
