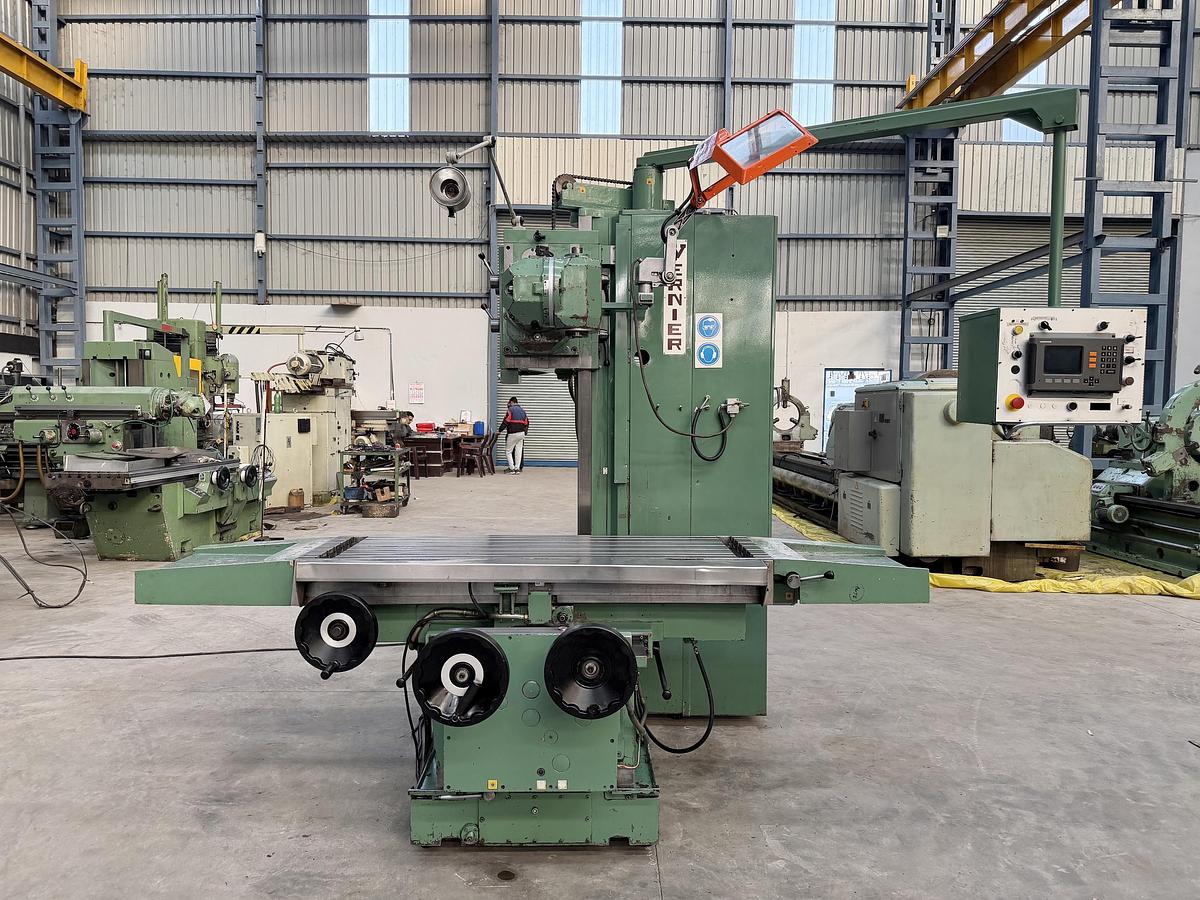

Vernier France DB-520 1600 mm x 500 mm Bed type Milling Machine

Bed type Milling Machine made by Vernier (France) in excellent working condition. The model of the machine is DB 520 and the Table Size is 1600 mm x 500 mm. The machine is complete with a Double Swivel Type Milling Head and also equipped with a 3-Axis DRO. The Vertical Milling Head can be removed to do Horizontal Milling Operations. The technical details are as follows -

Make - Vernier (France)

Model - DB 520

Table Size - 1600 mm x 500 mm

XYZ Travel - 1100 mm x 575 mm x 900 mm

Spindle Speeds - 32 rpm to 1600 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 15 mm/min to 1100 mm/min

Max. Height between Table to Vertical Spindle - 850 mm

Spindle Motor Power - 7.5 kW

Weight of the Machine - 5.60 Tons (Approximately)

- Equipped with a 3-Axis DRO.

- Complete with a Double-Swivel type Vertical Milling Head.

- Vertical Milling Head can be removed to do Horizontal Milling operations.

- Machine is in excellent working condition.
