Arno Nomo Italy Universal Milling Machine

Arno Nomo Italy Universal Milling Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

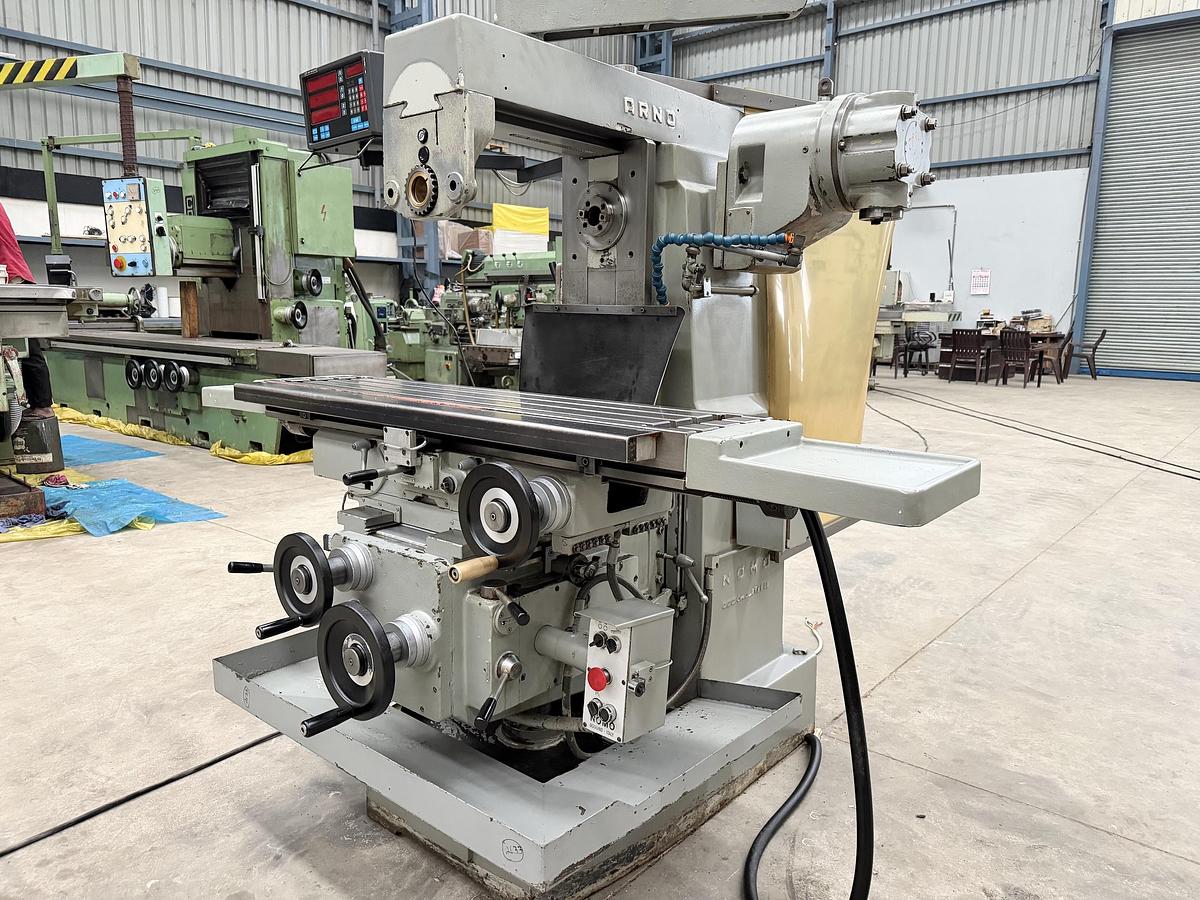

Arno Nomo (Italy) make Universal Milling Machine in excellent working condition. The Table Size of the machine is 1250 mm x 270 mm. The machine is complete with its Arbour and Bracket for Horizontal Milling Operations. It is also with a Parking-type Vertical Milling Head for Vertical Milling Operations. The technical details are as follows -


Make - Arno Nomo (Italy)

Table Size - 1250 mm x 270 mm

XYZ Travels - 850 mm x 300 mm x 400 mm

Spindle Taper - ISO-40

Spindle Speeds - 40 rpm to 1725 rpm

Table Feed Travel Rates - 10 mm/min to 840 mm/min

- Universal type Rotating Table.

- Equipped with a 3-Axis DRO.

- Equipped with a Parking type Vertical Milling Head.

- Complete with Arbour & Bracket for Horizontal Milling Operations.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerArno Nomo
Model2 Number
ConditionUsed
Stock Number2633
MakeArno Nomo (Italy)
Table Size1250 mm x 270 mm
XYZ Travels850 mm x 300 mm x 400 mm
Spindle TaperISO-40
Spindle Speeds40 rpm to 1725 rpm
Table Feed Travel Rates10 mm/min to 840 mm/min
Other Information 1- Universal type Rotating Table.
Other Information 2- Equipped with a 3-Axis DRO.
Other Information 3- Equipped with a Parking type Vertical Milling Head.
Other Information 4- Complete with Arbour & Bracket for Horizontal Milling Operations.
Other Information 5- Machine is in excellent working condition.
