Schaublin Switzerland ESO-100 High Precision Centerless Grinder
Schaublin Switzerland ESO-100 High Precision Centerless Grinder
Contact us for price
Location:New Delhi, India
Description

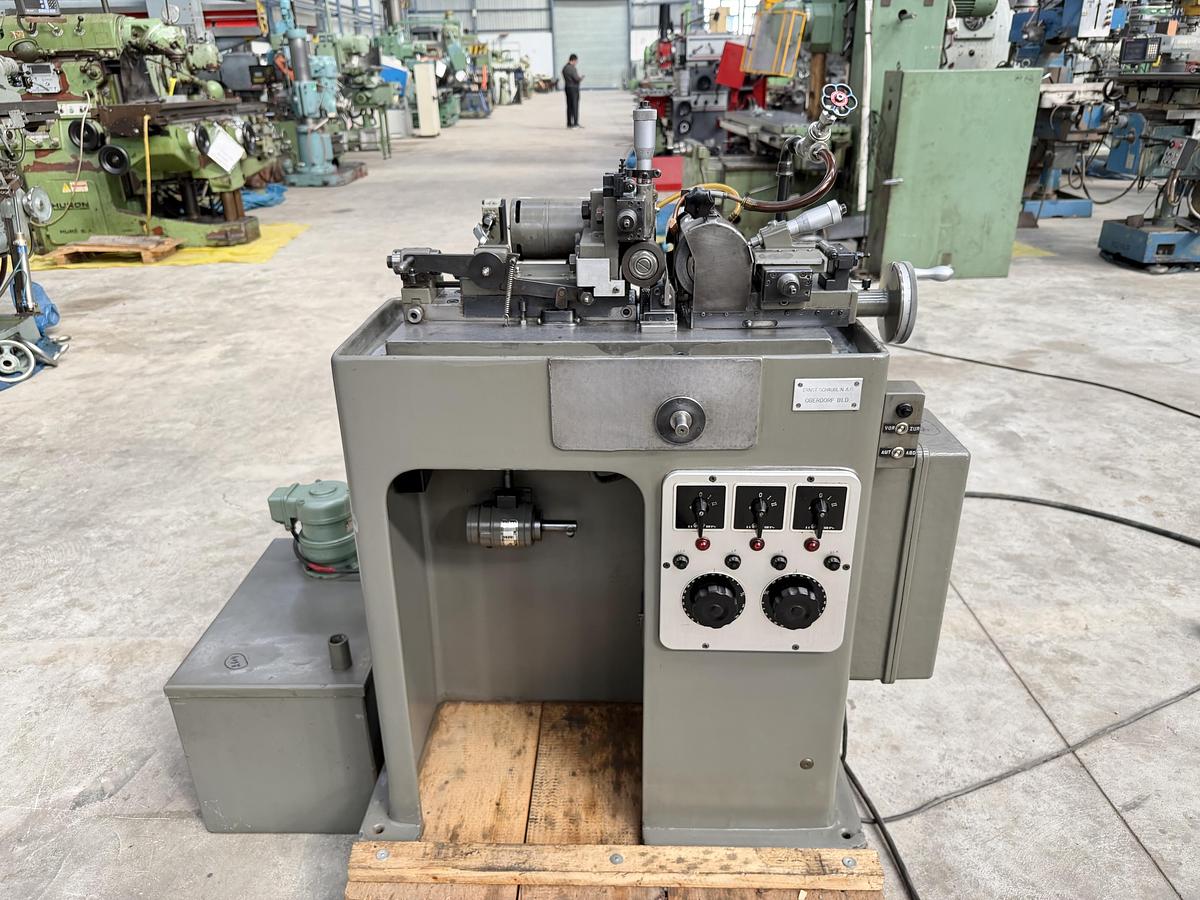

Schaublin (Switzerland) make High-Precision Centerless Grinding Machine in excellent working condition. The model of the machine is ESO-100 and it is Fully Automatic type machine which is suitable for In-Feed Grinding as well as Through-Feed Grinding Applications. The machine is complete with spare Wheels, Flange, Automatic Job Pusher, Coolant Tank, Pump, Operating Manual, Electrical Drawings, and many other accessories. The technical details are as follows -
Make - Schaublin (Switzerland)
Model - ESO-100
Job Diameter Range - 0.1 mm to 6 mm
Grinding Wheel Diameter - 100 mm
Wheel Width - 40 mm
Control Wheel Diameter - 60 mm
Control Wheel Feed Angle - +7 degree to -3 degree
- Complete Auto-Cycle Working (Cam-Controlled) for In-Feed Grinding.
- Feature of Swivel of Control Wheel Slide (for Taper Grinding)
- Equipped with Wheel Dressers for both the Wheels.
- Complete with Automatic Job Ejector Unit.
- Infinitely Variable Speeds of the Control Wheel.
- Complete with spare Wheels, Flange, Coolant Tank & Pump, & other accessories.
- Operating Manual, Electrical Drawings etc. are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Schaublin |
| Model | ESO-100 |
| Condition | Used |
| Stock Number | 2604 |
| Make | Schaublin (Switzerland) |
| Model | ESO-100 |
| Job Diameter Range | 0.1 mm to 6 mm |
| Grinding Wheel Diameter | 100 mm |
| Wheel Width | 40 mm |
| Control Wheel Diameter | 60 mm |
| Control Wheel Feed Angle | +7 degree to -3 degree |
| Other Information 1 | - Complete Auto-Cycle Working (Cam-Controlled) for In-Feed Grinding. |
| Other Information 2 | - Feature of Swivel of Control Wheel Slide (for Taper Grinding) |
| Other Information 3 | - Equipped with Wheel Dressers for both the Wheels. |
| Other Information 4 | - Complete with Automatic Job Ejector Unit. |
| Other Information 5 | - Infinitely Variable Speeds of the Control Wheel. |
| Other Information 6 | - Complete with spare Wheels, Flange, Coolant Tank & Pump, & other accessories. |
| Other Information 7 | - Operating Manual, Electrical Drawings etc. are available. |
| Other Information 8 | - Machine is in excellent working condition. |
