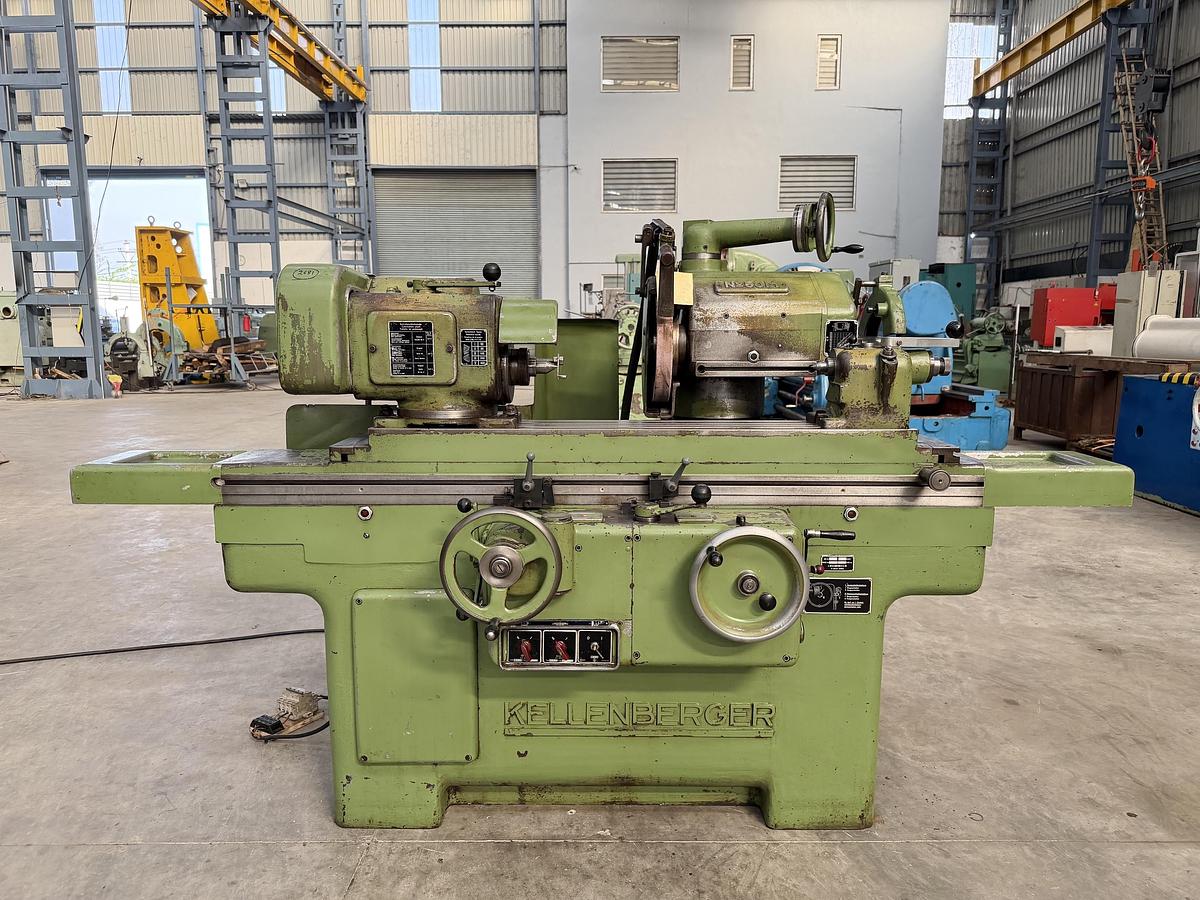

Kellenberger Switzerland No. 50M Universal Cylindrical Grinder Machine

Kellenberger (Switzerland) make Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is No. 50M and it is designed for external, face & internal precision grinding of all kinds, and it is fitted with a rising and falling swivelling wheel-head for handling all types of tool and cutter grinding operations. The machine is complete with Chuck, spare Wheel Flanges, Wheel Balancing Stand, Centers, Operating Manuals, Electrical Drawings, and many other accessories. The technical details are as follows -

Make - Kellenberger (Switzerland)

Model - No. 50M

Center Height - 125 mm

Max. Length of Job - 600 mm

Max. Diameter of Job - 250 mm

Grinding Wheel Size - Diameter 300 mm x 40 mm Width

Work-Head Speeds - 50 rpm to 400 rpm

Face Grinding Wheel Diameter - 250 mm

Table Swivel Angle - +10 degree to -10 degree

Type - Motorised Mechanical.

- Equipped with Internal Grinding Attachment.

- Suitable for External, Internal & Face Grinding Applications.

- Vertical Travel of the Wheel-Head for all types of Tool & Cutter Grinding Applications.

- Complete with Chuck, spare Wheel Flanges, Face Plate, Centers, etc.

- Complete with Wheel Balancing Stand, Leveling Pads, & other accessories.

- Machine is in excellent working condition.
