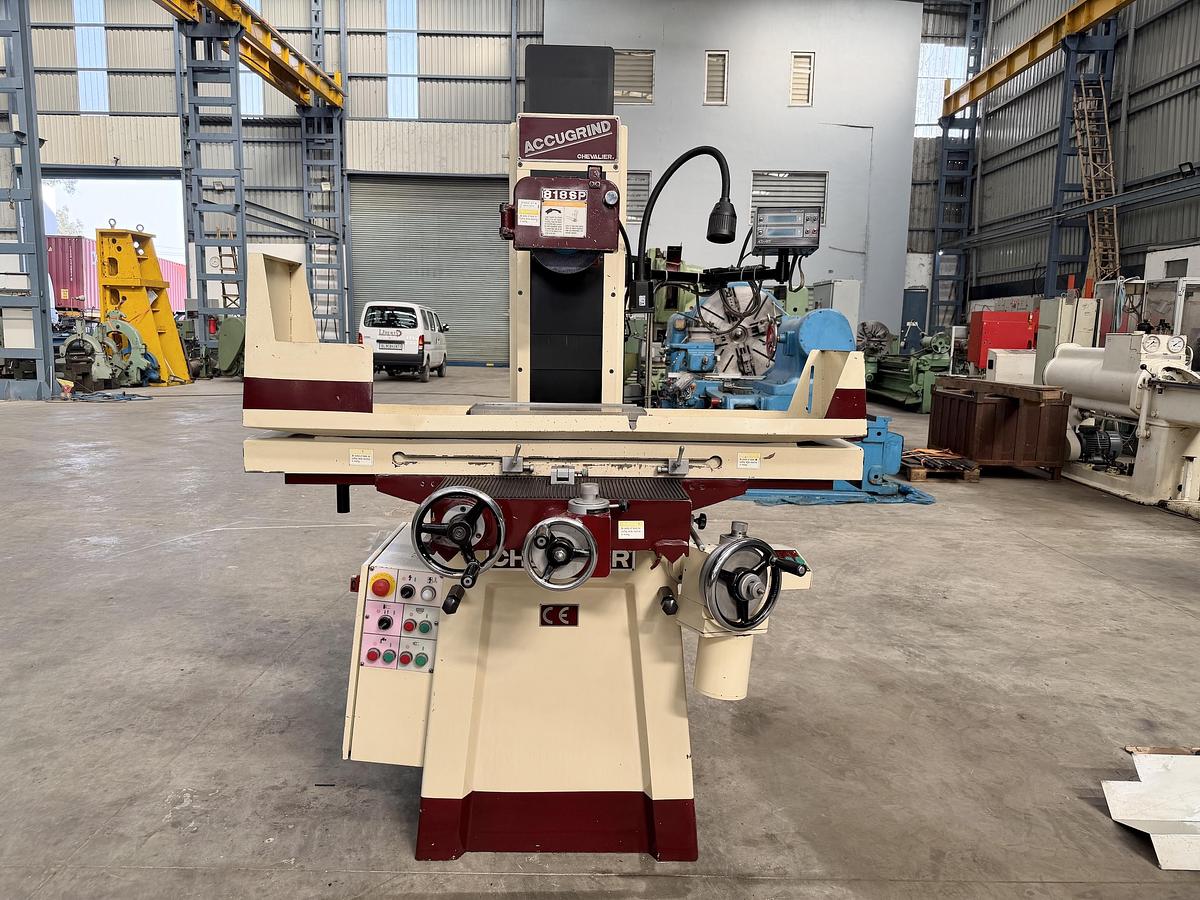

Chevalier Taiwan 818-SP High-Precision Surface Grinder

Chevalier (Taiwan) make High-Precision Surface Grinding Machine in excellent working condition. The model of the machine is Accugrind 818-SP and the Grinding Capacity is 200 mm x 450 mm. It is a Manual Type (Hand Operated) machine having Micro-Feed arrangements for both Cross Travels and for Vertical Travels. The technical details are as follows -

Make - Chevalier (Taiwan)

Model - Accugrind 818-SP

Job Grinding Size - 200 mm x 450 mm

Current Magnet Size - 150 mm x 400 mm

Longitudinal Travel - 525 mm

Cross Travel - 230 mm

Grinding Wheel Size - Diameter 205 mm x 32 mm Width

Least Count of Vertical Feed Travels - 1 Micron (0.001 mm)

Least Count of Cross Feed Travels - 1 Micron (0.001 mm)

Max. Height between Table Top to Wheel Center - 460 mm

- Micro Feed Adjustments in both Vertical Travel & in Cross Travel.

- Equipped with 2-Axis DRO in Vertical Axis & in Cross Travels Axis.

- Machine is in excellent working condition.
