Cincinnati USA Type LE Universal Tool & Cutter Grinder
Cincinnati USA Type LE Universal Tool & Cutter Grinder
Contact us for price
Location:New Delhi, India
Description

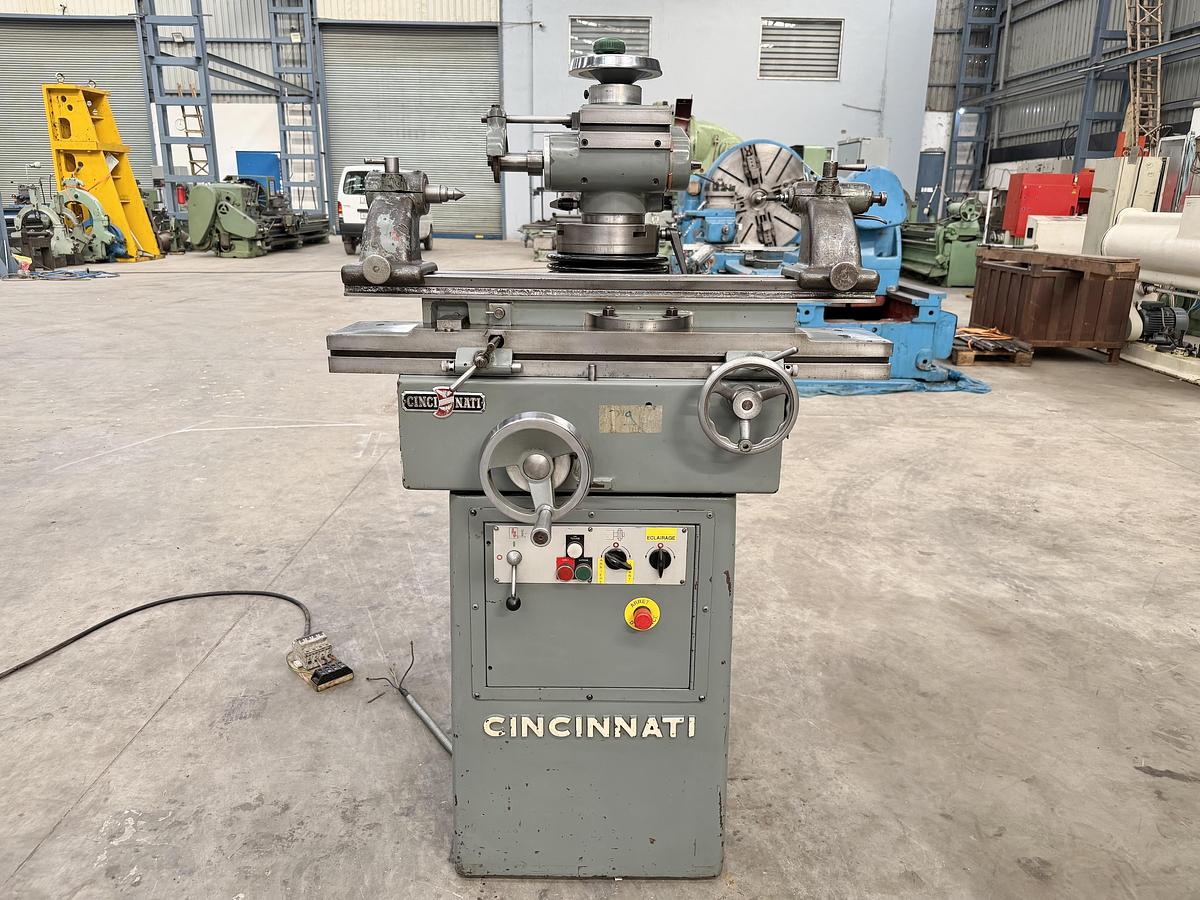

Cincinnati (USA) make Universal Tool & Cutter Grinder in excellent working condition. The model of the machine is Type LE and the Table Size is 850 mm x 120 mm. The machine is complete with many different Work-Heads, Tilting type Vice, 2 different pairs of Centers, Diamond Wheels and other Grinding Wheels, Chuck, Index Plates, and a lot of other accessories. The technical details are as follows -
Make - Cincinnati (USA)
Model - Type LE
Table Size - 850 mm x 120 mm
Max. Swing Diameter of Job - 250 mm
Max. Distance between Centers - 500 mm
Longitudinal Travel of Table - 250 mm
Cross Travel of Table - 125 mm
Vertical Travel of Grinding Spindle - 175 mm
Grinding Wheel Speeds - 4200 rpm (Approximately)
- Complete with many different Work-Heads, Tilting type Vice etc.
- Complete with 2 different pairs of Centers, Diamond Wheels, & a lot of other accessories.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Cincinnati |
| Model | Type LE |
| Condition | Used |
| Stock Number | 2259 |
| Make | Cincinnati (USA) |
| Model | Type LE |
| Table Size | 850 mm x 120 mm |
| Max. Swing Diameter of Job | 250 mm |
| Max. Distance between Centers | 500 mm |
| Longitudinal Travel of Table | 250 mm |
| Cross Travel of Table | 125 mm |
| Vertical Travel of Grinding Spindle | 175 mm |
| Grinding Wheel Speeds | 4200 rpm (Approximately) |
| Other Information 1 | - Complete with many different Work-Heads, Tilting type Vice etc. |
| Other Information 2 | - Complete with 2 different pairs of Centers, Diamond Wheels, & a lot of other accessories. |
| Other Information 3 | - Machine is in excellent working condition. |
