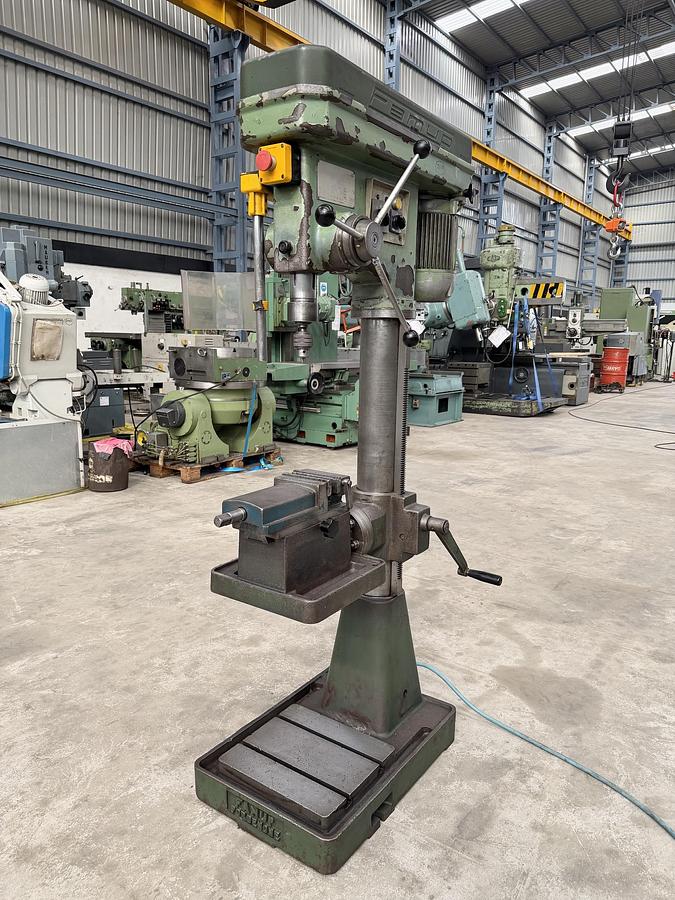

Famup Italy RAG.25 Pillar Drilling Machine
Famup Italy RAG.25 Pillar Drilling Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description
Famup (Italy) make Pillar Drilling Machine in excellent working condition. The model of the machine is RAG. 25 and the Spindle Diameter is 62 mm. The technical details are as follows -
Make - Famup (Italy)
Model - RAG. 25
Drilling Capacity - 25 mm
Spindle Diameter - 62 mm
Spindle Taper - MT 3
Spindle Speeds - 205 rpm to 2100 rpm
Spindle Travel - 120 mm
Clamping Table Size - 250 mm x 250 mm
Max. Height between Top of Base to Spindle - 1190 mm
Vertical Pillar Diameter - 122 mm
Tilting Angle of Table/Vice - 0 Degree to 90 degree
Distance between Spindle Center to Vertical Pillar - 295 mm
Spindle Motor Power - 0.7 HP / 1.3 HP
- Taper Drilling is possible as the table/vice can be tilted.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Famup |
| Model | RAG. 25 |
| Condition | Used |
| Stock Number | 2019 |
| Make | Famup (Italy) |
| Model | RAG. 25 |
| Drilling Capacity | 25 mm |
| Spindle Diameter | 62 mm |
| Spindle Taper | MT 3 |
| Spindle Speeds | 205 rpm to 2100 rpm |
| Spindle Travel | 120 mm |
| Clamping Table Size | 250 mm x 250 mm |
| Max. Height between Top of Base to Spindle | 1190 mm |
| Vertical Pillar Diameter | 122 mm |
| Tilting Angle of Table/Vice | 0 Degree to 90 degree |
| Distance between Spindle Center to Vertical Pillar | 295 mm |
| Spindle Motor Power | 0.7 HP / 1.3 HP |
| Other Information 1 | - Taper Drilling is possible as the table/vice can be tilted. |
| Other Information 2 | - Machine is in excellent working condition. |
