Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine
Arno-Nomo Italy 1550 mm x 350 mm Universal Milling Machine
Contact us for price
Location:New Delhi, India
Description

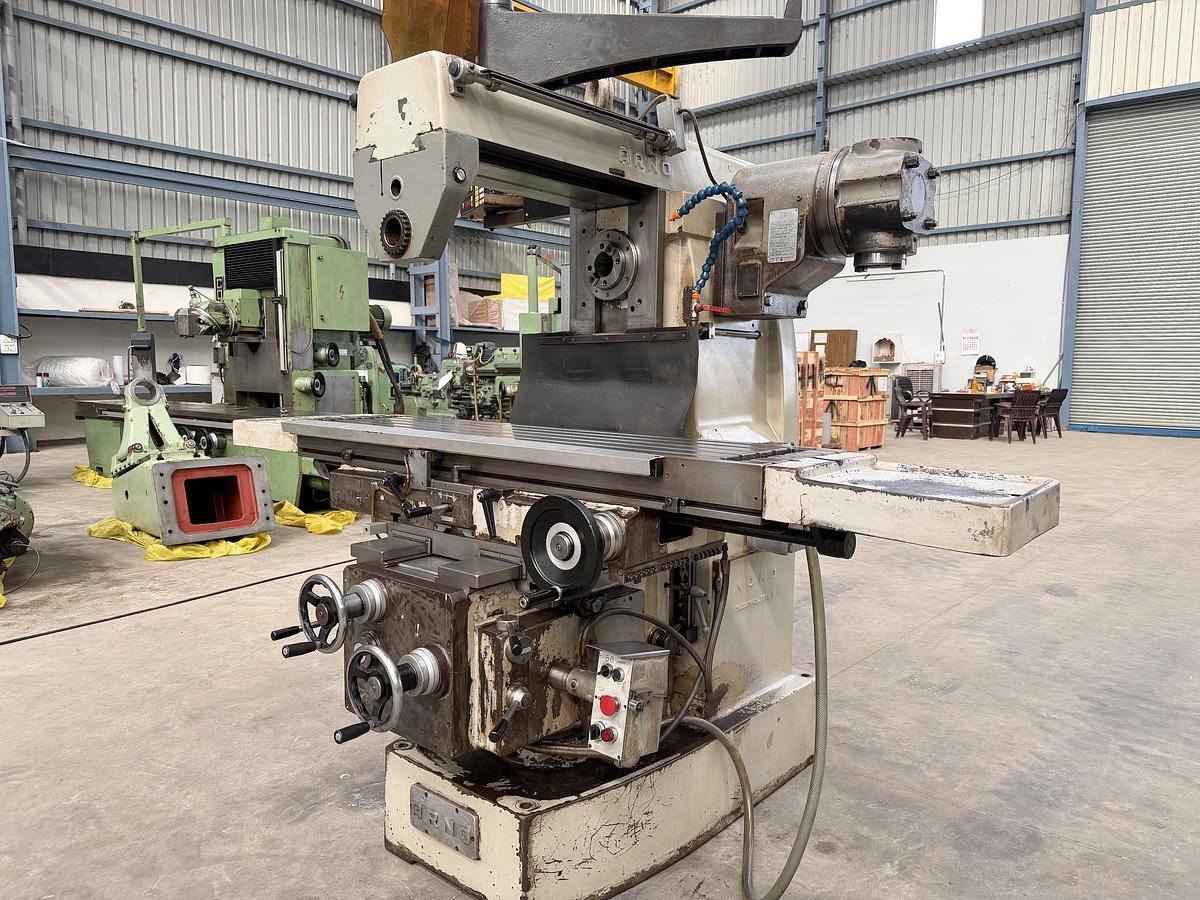

Arno Nomo (Italy) make Universal Milling Machine in excellent working condition. The Table Size of the machine is 1550 mm x 350 mm. The machine is complete with its Arbour and Bracket for Horizontal Milling Operations. It also includes a parking-type vertical milling head for vertical milling operations. The machine is equipped with a 3-Axis DRO and includes many Boring Bars, Tool Holders etc. The technical details are as follows -
Make - Arno Nomo (Italy)
Table Size - 1550 mm x 350 mm
XYZ Travels - 1125 mm x 320 mm x 450 mm
Spindle Taper - ISO-50
Spindle Speeds - 40 rpm to 1700 rpm
Table Feed Travel Rates - 10 mm/min to 880 mm/min
- Universal type Rotating Table.
- Equipped with a 3-Axis DRO.
- Equipped with a Parking type Vertical Milling Head.
- Complete with Arbour & Bracket for Horizontal Milling Operations.
- Complete with many Boring Bars, Tool Holders etc.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Arno Nomo |
| Model | 4 number |
| Condition | Used |
| Stock Number | 2547 |
| Make | Arno Nomo (Italy) |
| Table Size | 1550 mm x 350 mm |
| XYZ Travels | 1125 mm x 320 mm x 450 mm |
| Spindle Taper | ISO-50 |
| Spindle Speeds | 40 rpm to 1700 rpm |
| Table Feed Travel Rates | 10 mm/min to 880 mm/min |
| Other Information 1 | - Universal type Rotating Table. |
| Other Information 2 | - Equipped with a 3-Axis DRO. |
| Other Information 3 | - Equipped with a Parking type Vertical Milling Head. |
| Other Information 4 | - Complete with Arbour & Bracket for Horizontal Milling Operations. |
| Other Information 5 | - Complete with many Boring Bars, Tool Holders etc. |
| Other Information 6 | - Machine is in excellent working condition. |
