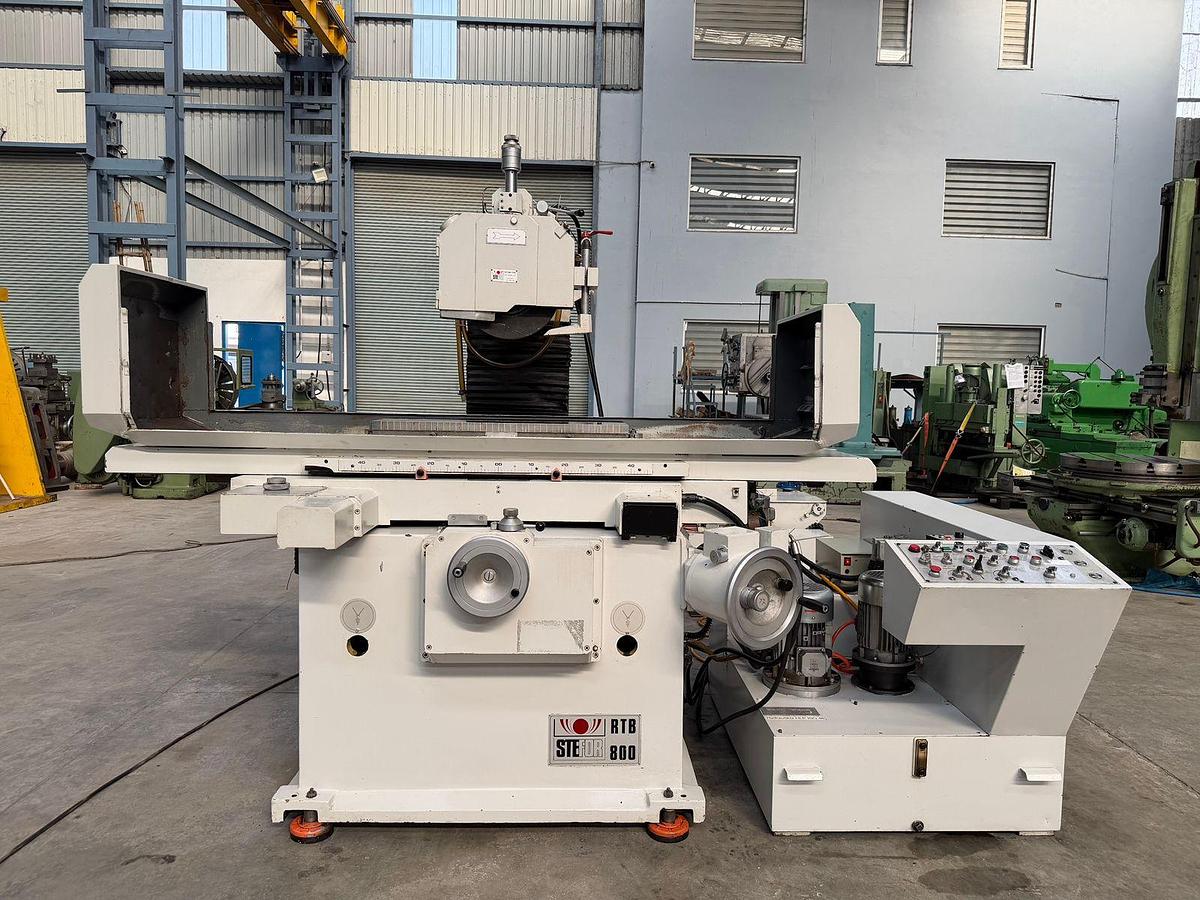

Stefor Italy RTB-800 Surface Grinding Machine

Stefor (Italy) make High-Precision Surface Grinding Machine in excellent working condition. The model of the machine is the RTB-800 and the Magnet Size is 350 mm x 800 mm. The machine has Micro-Feed Travels on both the Cross Travels and on the Vertical Travels. The machine is complete with Hydraulic Wheel Dresser, Coolant Filtration Unit, Coolant Tank, Pump, Spare Wheel Flange, Splash Guards, Wheel-Balancing Shaft etc. It is a Fully Automatic type machine with features of Automatic Depth Adjustment "Auto-Cut" and Plunge Grinding. The technical details are as follows -

Make - Stefor (Italy)

Model - RTB-800

Magnet Size - 350 mm x 800 mm

Longitudinal Travels - 925 mm

Cross Travels - 450 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Max. Height between Magnet Top to Wheel Center - 445 mm

Least Count of Vertical Travel - 2 Microns (0.002 mm)

Least Count of Cross Travel - 1 Micron (0.001 mm)

- Equipped with a Wheel-Top Mounted Hydraulic Wheel Dresser.

- Features of Automatic Depth Adjustment, Automatic Plunge Grinding, etc.

- Micro-Feed Adjustments in Vertical Travels and also in Cross Travels.

- Complete with spare Wheel Flange, Wheel-Balancing Shaft, Splash Guards etc.

- Complete with Coolant Filtration Unit, Coolant tank & Coolant Pump.

- Electrical Drawings of the Machine is available.

- Machine is in excellent working condition.
