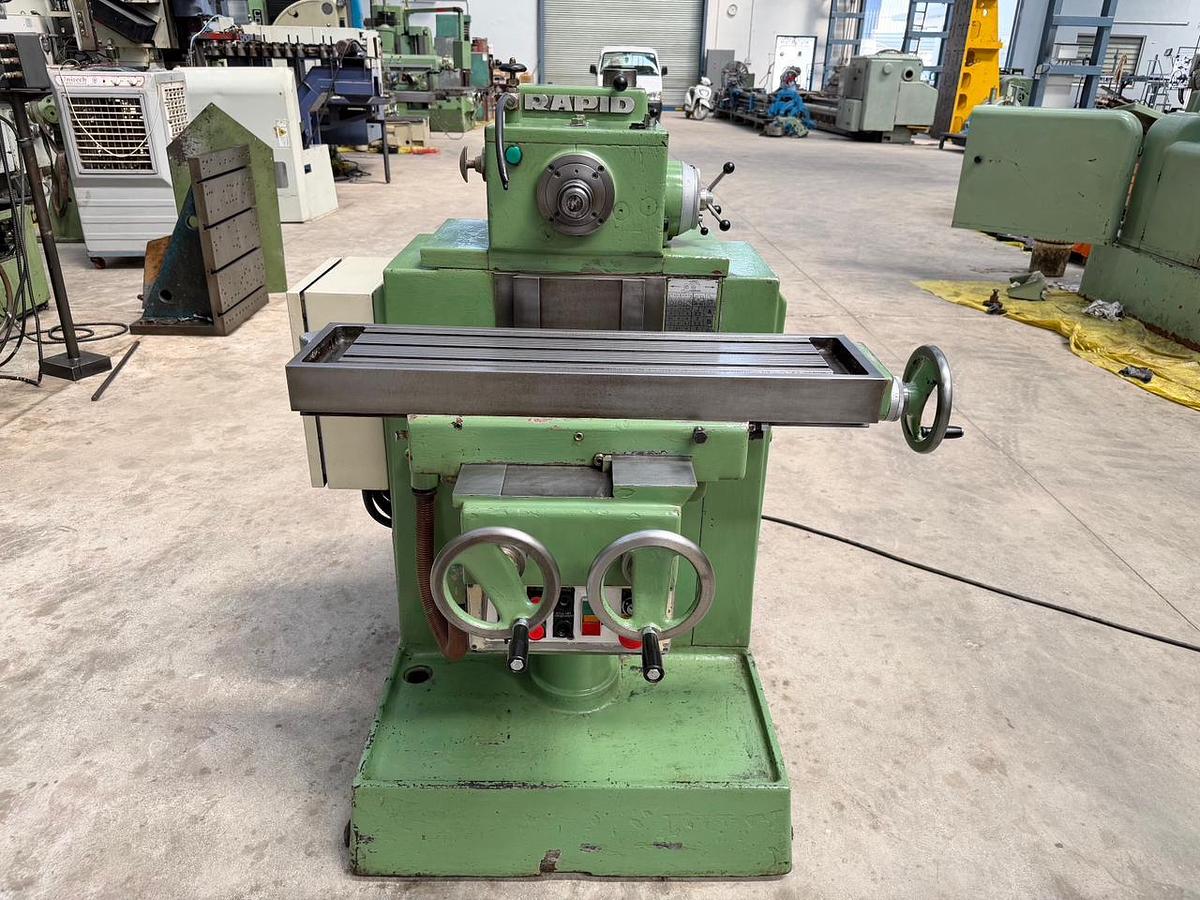

Rapid Italy Auto-Cycle Horizontal Slot Milling Machine
Rapid Italy Auto-Cycle Horizontal Slot Milling Machine
Contact us for price
Location:New Delhi, India
Description
Automatic Horizontal Slot Milling Machine made by Rapid (Italy) in excellent working condition. It is an Auto-Cycle Machine which can be used for Automatic Horizontal Milling of Keyways, Slots, Notches and Groves. The technical details are as follows -
Make - Rapid (Italy)
Model - 200N
Max. Width of Slot - 25 mm
Max. Length of Slot - 200 mm + Tool Diameter
Max. Depth of Slot - 50 mm
Max. Slot Length using Table Travels - 600 mm
Table Size - 850 mm x 220 mm
XYZ Travel of Table - 400 mm x 175 mm x 250 mm
Spindle Speeds - 250 rpm to 2000 rpm
Spindle Taper - MT-3
Quill Diameter - 100 mm
Milling Head Travel Rates - 2 Strokes/min to 28 strokes/min
- Auto-Cycle Working with Automatic Depth Increase.
- Very Suitable for Milling of Keyways, Slots, Notches, Groves, etc.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Rapid |
| Model | 200N |
| Condition | Used |
| Stock Number | 2796 |
| Make | Rapid (Italy) |
| Model | 200N |
| Max. Width of Slot | 25 mm |
| Max. Length of Slot | 200 mm + Tool Diameter |
| Max. Depth of Slot | 50 mm |
| Max. Slot Length using Table Travels | 600 mm |
| Table Size | 850 mm x 220 mm |
| XYZ Travel of Table | 400 mm x 175 mm x 250 mm |
| Spindle Speeds | 250 rpm to 2000 rpm |
| Spindle Taper | MT-3 |
| Quill Diameter | 100 mm |
| Milling Head Travel Rates | 2 Strokes/min to 28 strokes/min |
| Other Information 1 | - Auto-Cycle Working with Automatic Depth Increase. |
| Other Information 2 | - Very Suitable for Milling of Keyways, Slots, Notches, Groves, etc. |
| Other Information 3 | - Machine is in excellent working condition. |
