Fortuna Germany Internal & Face Grinding Machine

Fortuna Germany Internal & Face Grinding Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

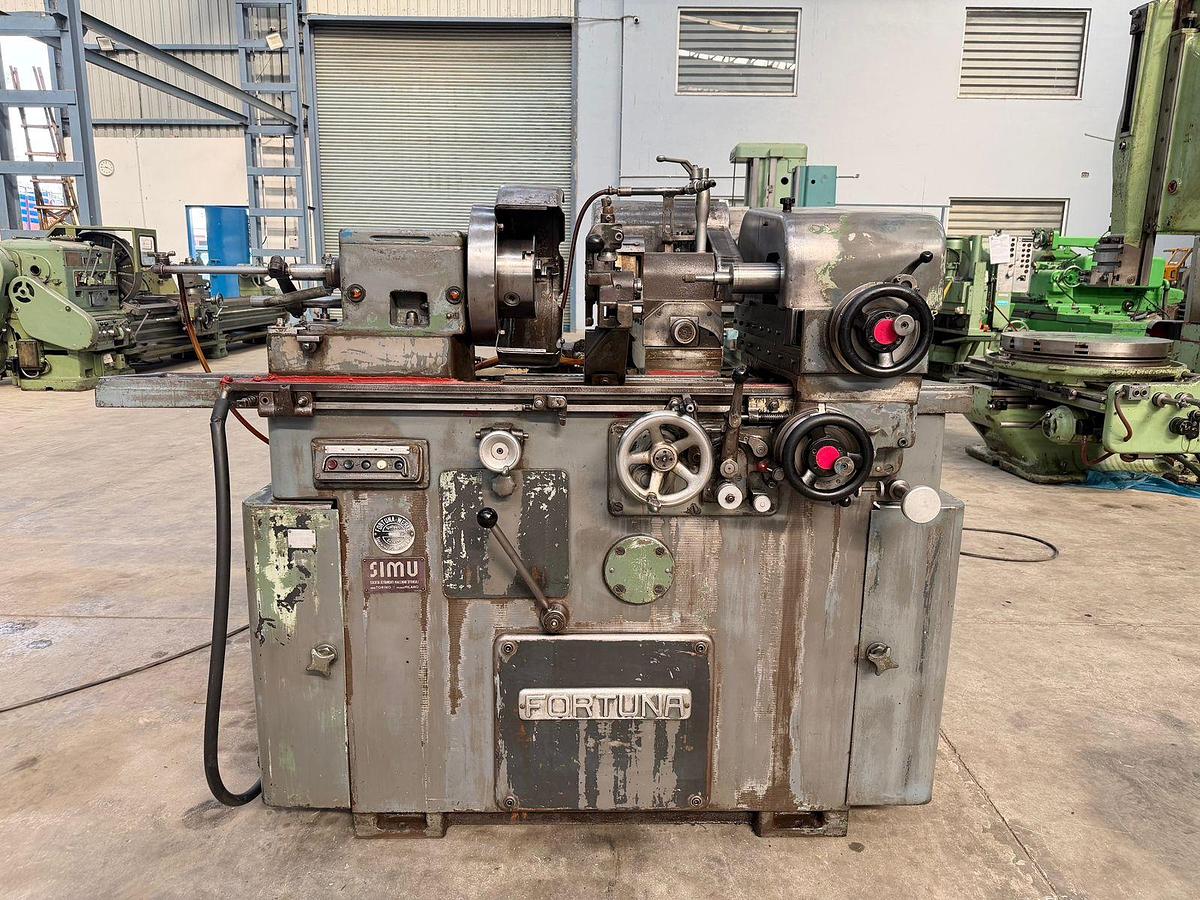

Fortuna (Germany) make Internal & Face Grinding Machine in excellent working condition. It is a Hydraulic type machine with Maximum Job Swing Diameter is 350 mm. The machine is complete with lots of NEW Grinding Wheels, Magnetic Chuck, Quills, and other accessories. The technical details are as follows -


Make - Fortuna (Germany)

Max. Diameter of Job - 350 mm

Max. Ground-able Internal Diameter - 170 mm

Table Longitudinal Travel - 300 mm

Max. Distance between Chuck to Spindle Support - 480 mm

Rotation of Work-Head - +20 degree to -10 degree

Work-Head Speeds - 80 rpm to 435 rpm

Least Count of the Machine - 5 Microns

Internal Grinding Spindle Diameter - 60 mm

Face Grinding Wheel Diameter - 160 mm

Chuck Diameter - 160 mm

- Equipped with Face Grinding Attachment.

- Equipped with a Wheel Dressing Unit.

- Feature of Automatic Depth Adjustment "Auto-Cut".

- With lots of NEW spare Grinding Wheels, Quills, Magnetic Chuck etc.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerFortuna
ModelSIP
ConditionUsed
Stock Number2474
MakeFortuna (Germany)
Max. Diameter of Job350 mm
Max. Ground-able Internal Diameter170 mm
Table Longitudinal Travel300 mm
Max. Distance between Chuck to Spindle Support480 mm
Rotation of Work-Head+20 degree to -10 degree
Work-Head Speeds80 rpm to 435 rpm
Least Count of the Machine5 Microns
Internal Grinding Spindle Diameter60 mm
Face Grinding Wheel Diameter160 mm
Chuck Diameter160 mm
Other Information 1- Equipped with Face Grinding Attachment.
Other Information 2- Equipped with a Wheel Dressing Unit.
Other Information 3- Feature of Automatic Depth Adjustment "Auto-Cut".
Other Information 4- With lots of NEW spare Grinding Wheels, Quills, Magnetic Chuck etc.
Other Information 5- Machine is in excellent working condition.
