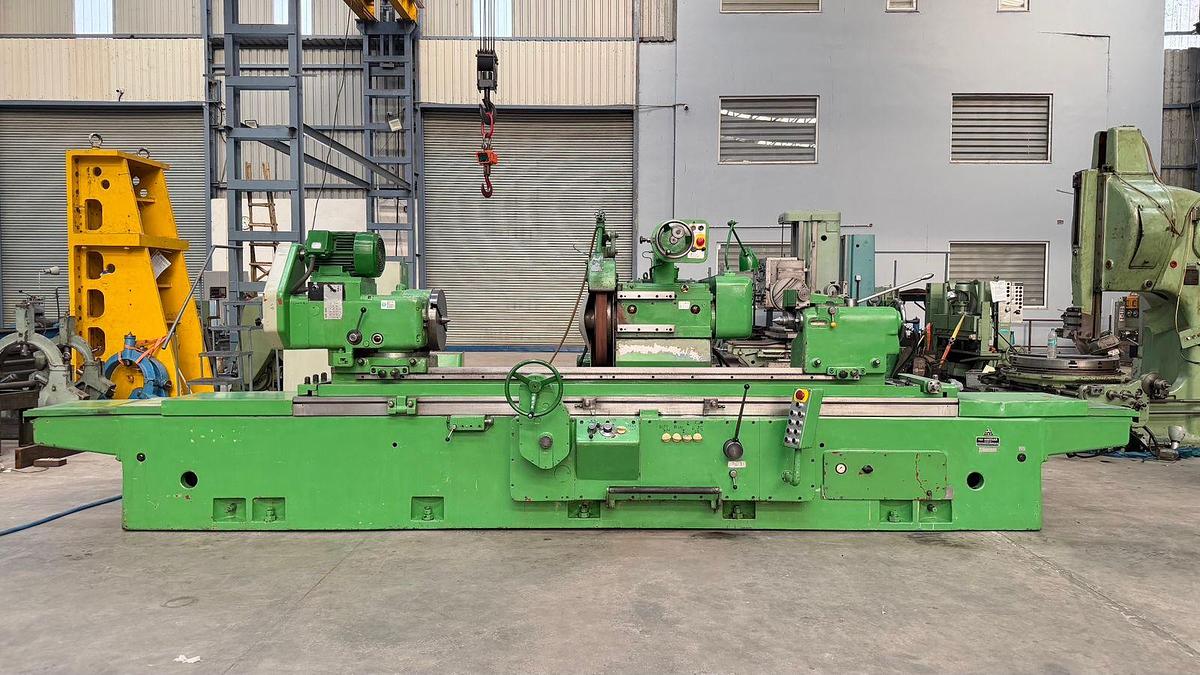

TOS Czech BUA-63 / 2000 Heavy Duty Universal Cylindrical Grinder

Description

TOS (Czech Republic) make Heavy Duty Universal Cylindrical Grinding Machine in excellent working condition. The model of the machine is BUA-63 and the Maximum Job Diameter is 630 mm and the Maximum Length of Job is 2000 mm. The machine is complete with its Internal Grinding Attachment, Job Steadies, Wheel Dresser, Wheel Balancing Shaft, Splash Guards, etc. Operating Manuals, Hydraulic Drawings, Electrical Drawings etc. are also available for the machine. The technical details are as follows -

Make - TOS (Czech Republic)

Model - BUA 63 / 2000

Center Height - 325 mm

Max. Job Diameter - 630 mm

Max. Length of Job - 2000 mm

Grinding Wheel Size - Diameter 750 mm x 100 mm Width

Work-Head Speeds - 9 rpm to 156 rpm

Table Rotation Angle - +6.5 degree to -6.5 degree

- Internal Grinding Attachment is available.

- Features like Plunge Grinding, Auto-Cut, Auto-Compensation etc.

- Features like Auto-Slow, Delay, Rapid Table Travel, Hydraulic Tail-Stock etc.

- Motorised Travel of Wheel-Head for setting purposes.

- Rotation possible in Wheel-Head, Work-Head and also in Table.

- Complete with 2 x Open Job Steady, 1 x Closed Job Steady, Job Support etc.

- Complete with Wheel Dresser, Wheel Balancing Shaft, Splash Guards, etc.

- Micro-Feed Travels (of 2 Microns/stroke) in the Wheel-Head Movement.

- Electrical Drawings, Hydraulic Drawings, Operating Manual etc. are available.

- Machine is in excellent working condition.

Specifications

Manufacturer	TOS
Model	BUA 63 / 2000
Condition	Used
Stock Number	2705
Make	TOS (Czech Republic)
Model	BUA 63 / 2000
Center Height	325 mm
Max. Job Diameter	630 mm
Max. Length of Job	2000 mm
Grinding Wheel Size	Diameter 750 mm x 100 mm Width
Work-Head Speeds	9 rpm to 156 rpm
Table Rotation Angle	+6.5 degree to -6.5 degree
Other Information 1	- Internal Grinding Attachment is available.
Other Information 2	- Features like Plunge Grinding, Auto-Cut, Auto-Compensation etc.
Other Information 3	- Features like Auto-Slow, Delay, Rapid Table Travel, Hydraulic Tail-Stock etc.
Other Information 4	- Motorised Travel of Wheel-Head for setting purposes.
Other Information 5	- Rotation possible in Wheel-Head, Work-Head and also in Table.
Other Information 6	- Complete with 2 x Open Job Steady, 1 x Closed Job Steady, Job Support etc.
Other Information 7	- Complete with Wheel Dresser, Wheel Balancing Shaft, Splash Guards, etc.
Other Information 8	- Micro-Feed Travels (of 2 Microns/stroke) in the Wheel-Head Movement.
Other Information 9	- Electrical Drawings, Hydraulic Drawings, Operating Manual etc. are available.
Other Information 10	- Machine is in excellent working condition.
