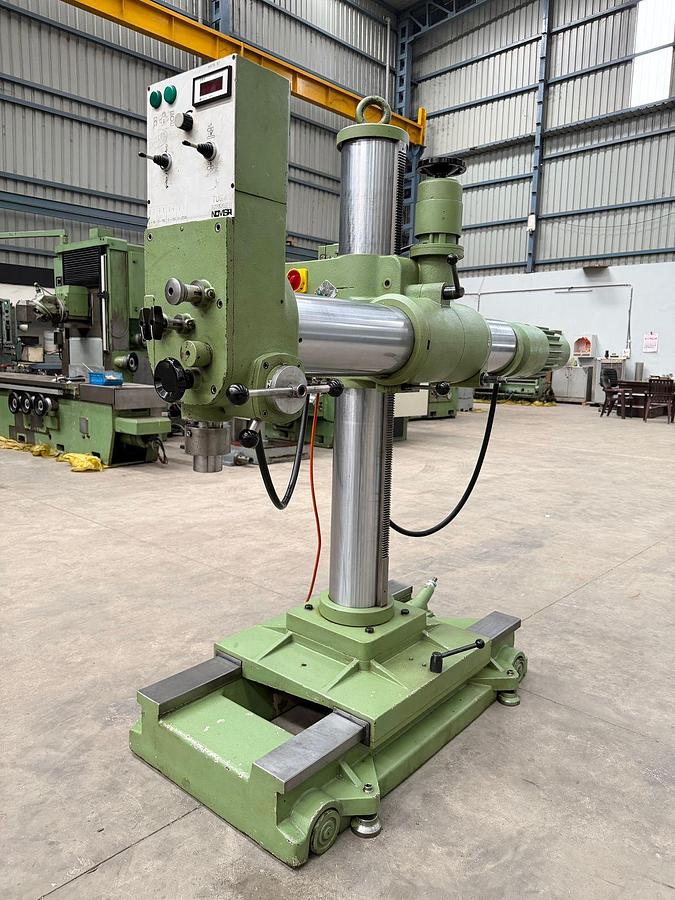

Novisa Italy TUG-40 Portable Radial Arm Universal Drilling Machine

Novisa (Italy) make Portable Universal Radial Arm Drilling Machine, Model TUG-40, available in excellent working condition. This versatile machine features a fully rotatable drilling head (0 degree to 360 degree), making it suitable for angular and taper drilling applications. Its portable design with base-mounted wheels allows easy movement across the shop floor, while the column travel on base enhances flexibility for handling large and complex jobs. The machine is a 6-axis universal radial drilling unit, designed for precision, adaptability, and multi-directional operation. The technical details are as follows -

Make - Novisa (Italy)

Model - TUG-40

Drilling Capacity - 40 mm

Spindle Diameter - 60 mm

Spindle Taper - MT-4

Spindle Feed Travel - 190 mm

Horizontal Travel of the Arm (Longitudinal) - 660 mm

Vertical Travel of the Arm - 1000 mm

Column Travel on the Base - 600 mm

Column Rotation - 360 degree

Drilling Head Rotation - 0 degree to 360 degree

Max. Distance between Spindle Center to Vertical Column - 935 mm

Max. Height between Spindle to Floor - 1270 mm

Min. Height between Spindle to Floor - 110 mm

Spindle Speeds - 0 rpm to 2500 rpm

Spindle Feed Rates - 0.07 / 0.13 / 0.23 mm/rev

- It is a 6-Axis Universal Radial Arm type Drilling Machine.

- Machine is in excellent working condition.
