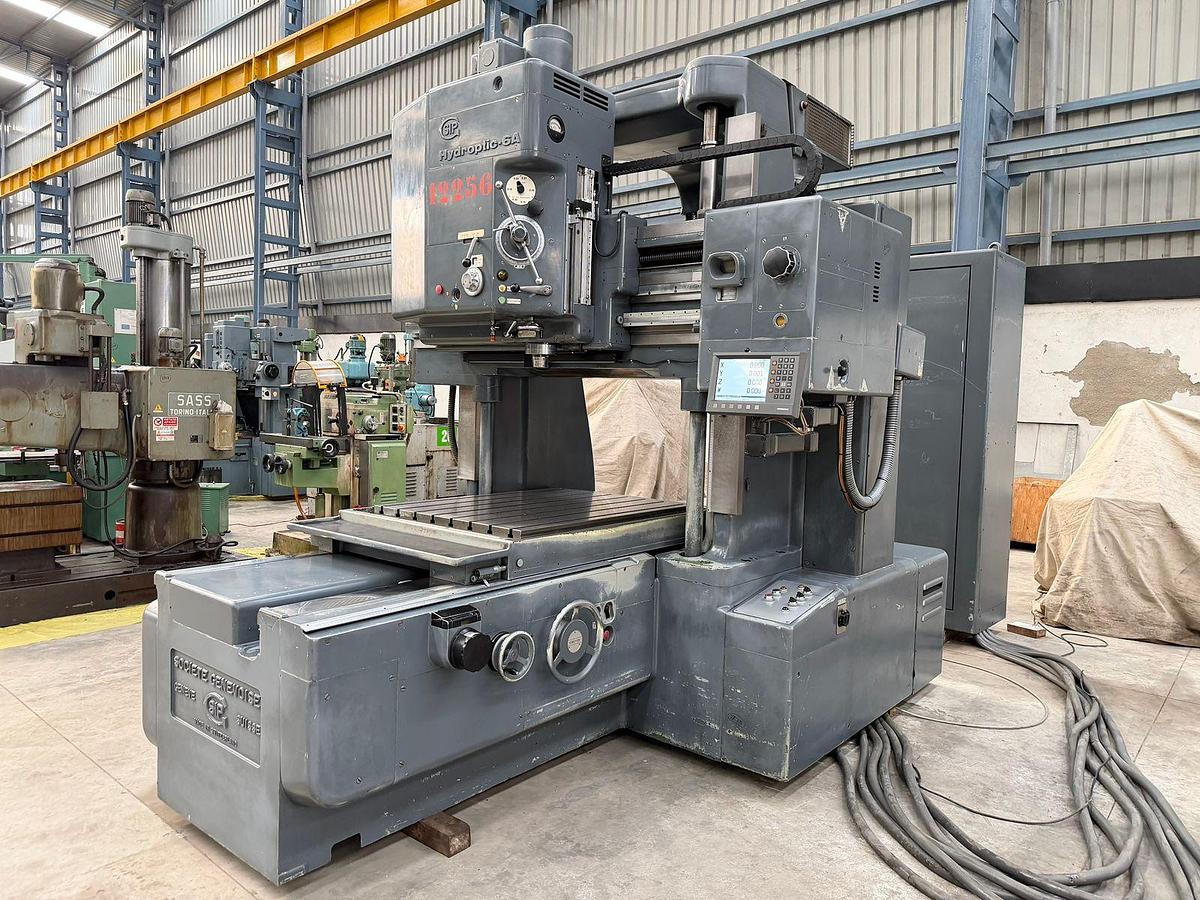

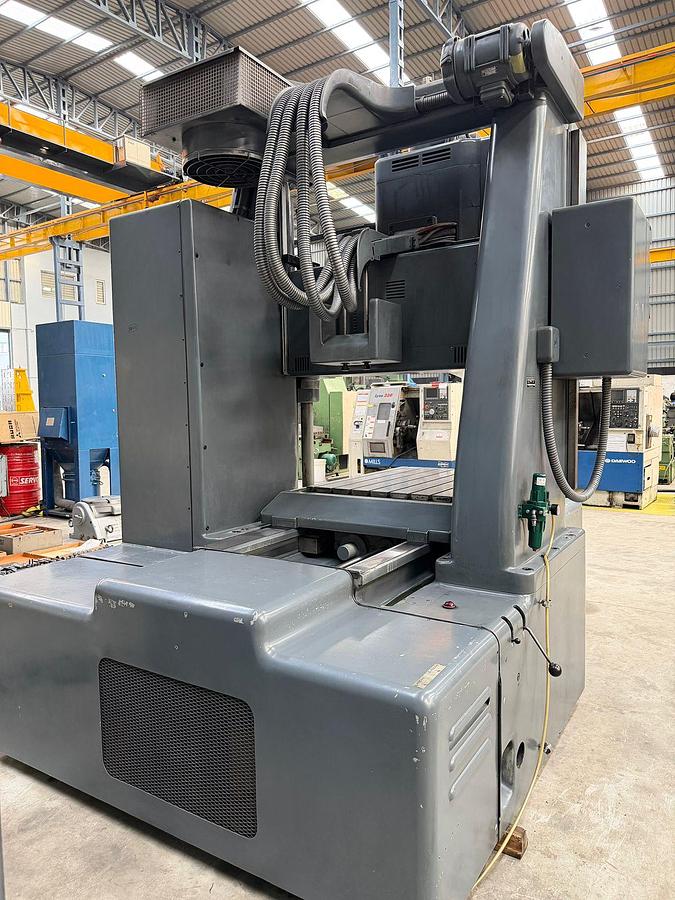

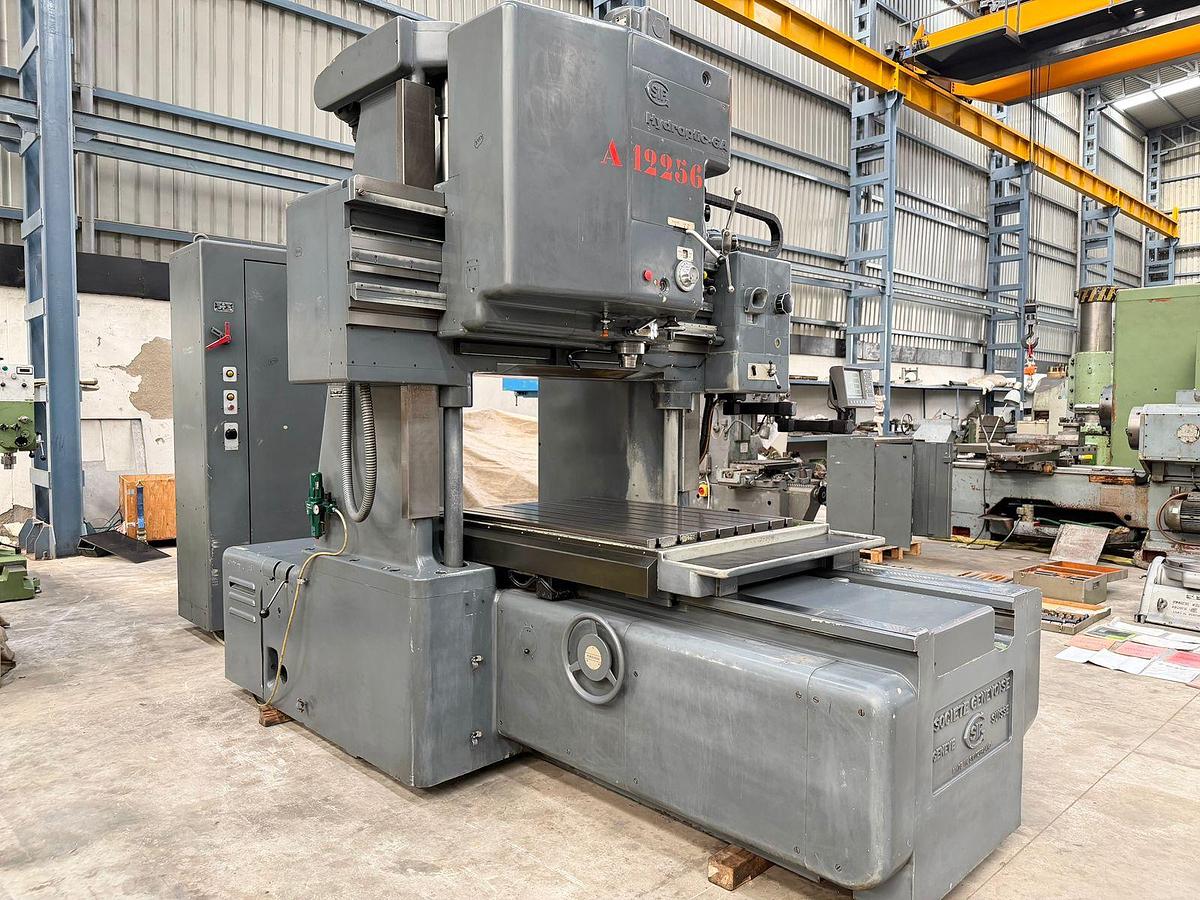

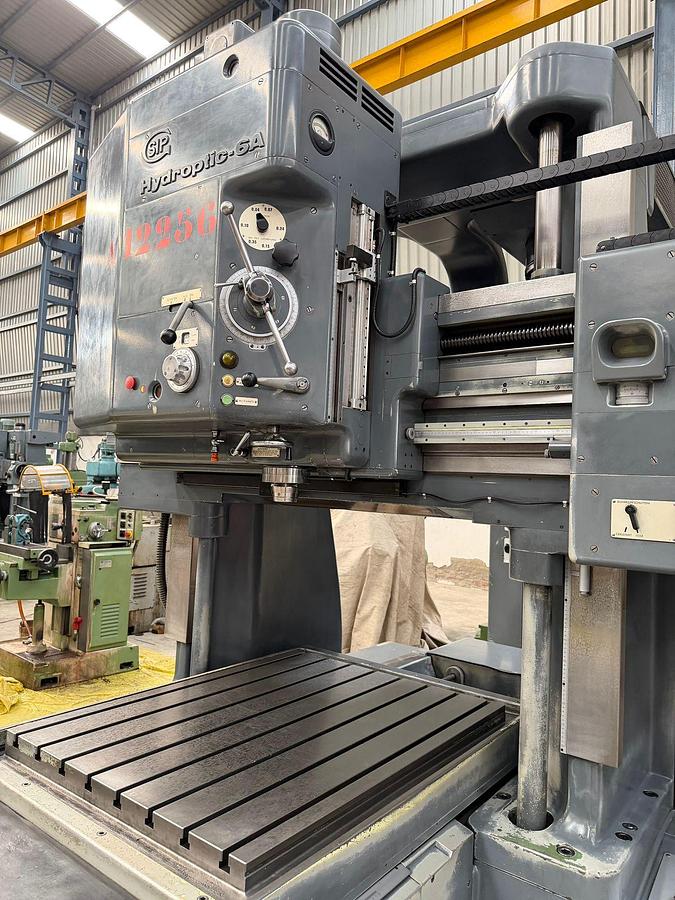

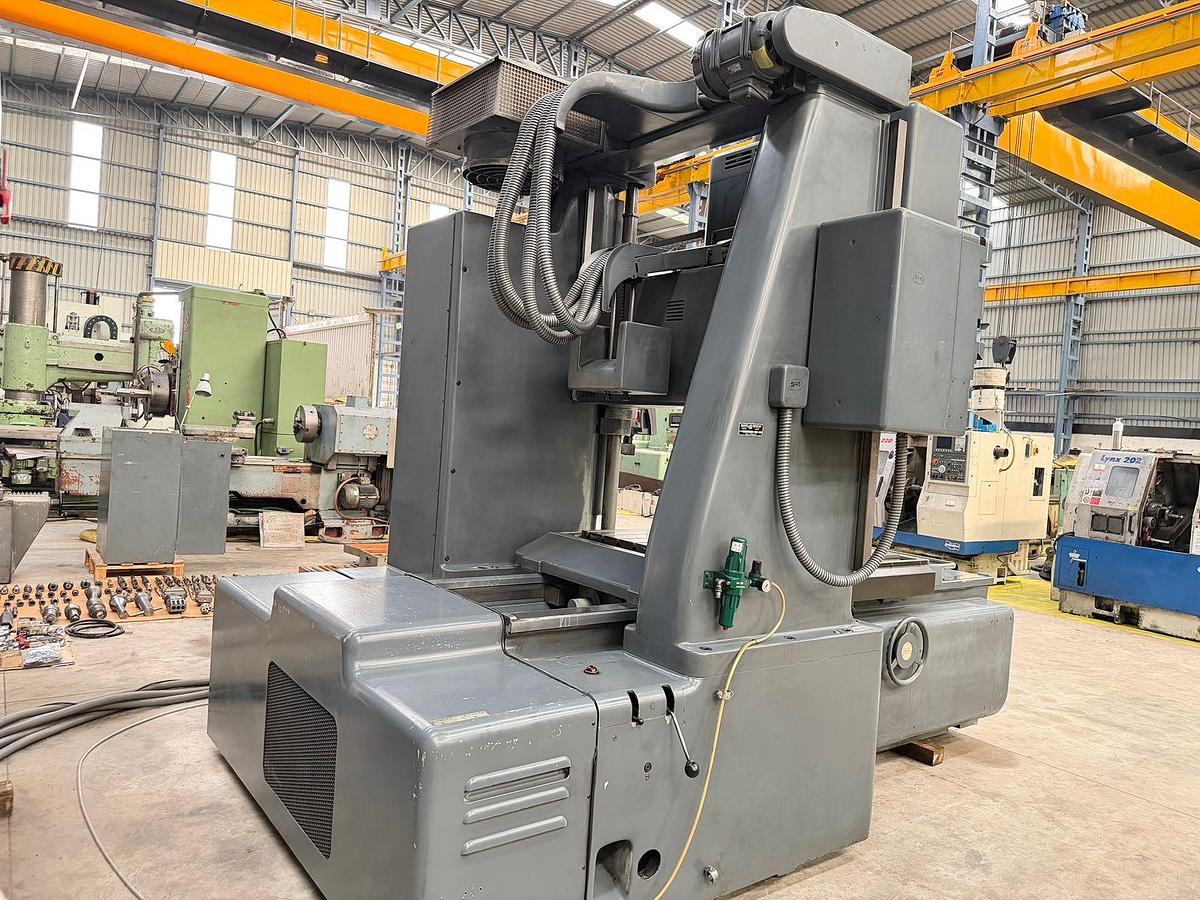

SIP Hydroptic 6A High-Precision Jig Boring Machine

High-precision Jig Boring Machine made by SIP (Switzerland), Model Hydroptic 6A, available in excellent working condition. Machines from SIP (Société Genevoise d’Instruments de Physique) are globally renowned for their ultra-high accuracy and precision, making them ideal for tool rooms, die & mould work, precision hole location, and coordinate boring applications. The Hydroptic series is specifically designed for fine boring, drilling, and precision machining, where accuracy is critical.

This machine is supplied as a complete, well-equipped package, including - SIP PI-5 Tilting & Rotary Table (Diameter 450 mm), 4-Axis Heidenhain DRO system, Multiple SIP micro-boring heads, Assorted tools, drills, and original SIP clamping instruments, Operating manual, electrical drawings, and technical documentation. The technical details are as follows -

Make - SIP (Switzerland)

Model - Hydroptic 6A

Table Size - 1100 mm x 842 mm

Longitudinal Travels - 1000 mm

Transversal Travels - 700 mm

Distance between Columns - 1100 mm

Max. Height between Spindle to Table - 1000 mm

Spindle Feed Travel - 300 mm

Spindle Speeds - 40 to 2000 rpm

Spindle Taper - Morse No. 4

Spindle Feed Rate - 0.04 mm/rev to 0.35 mm/rev

Spindle Diameter - 135 mm

Table Weight Load Capacity - 1000 kg

- Equipped with 4-Axis Heidenhain DRO.

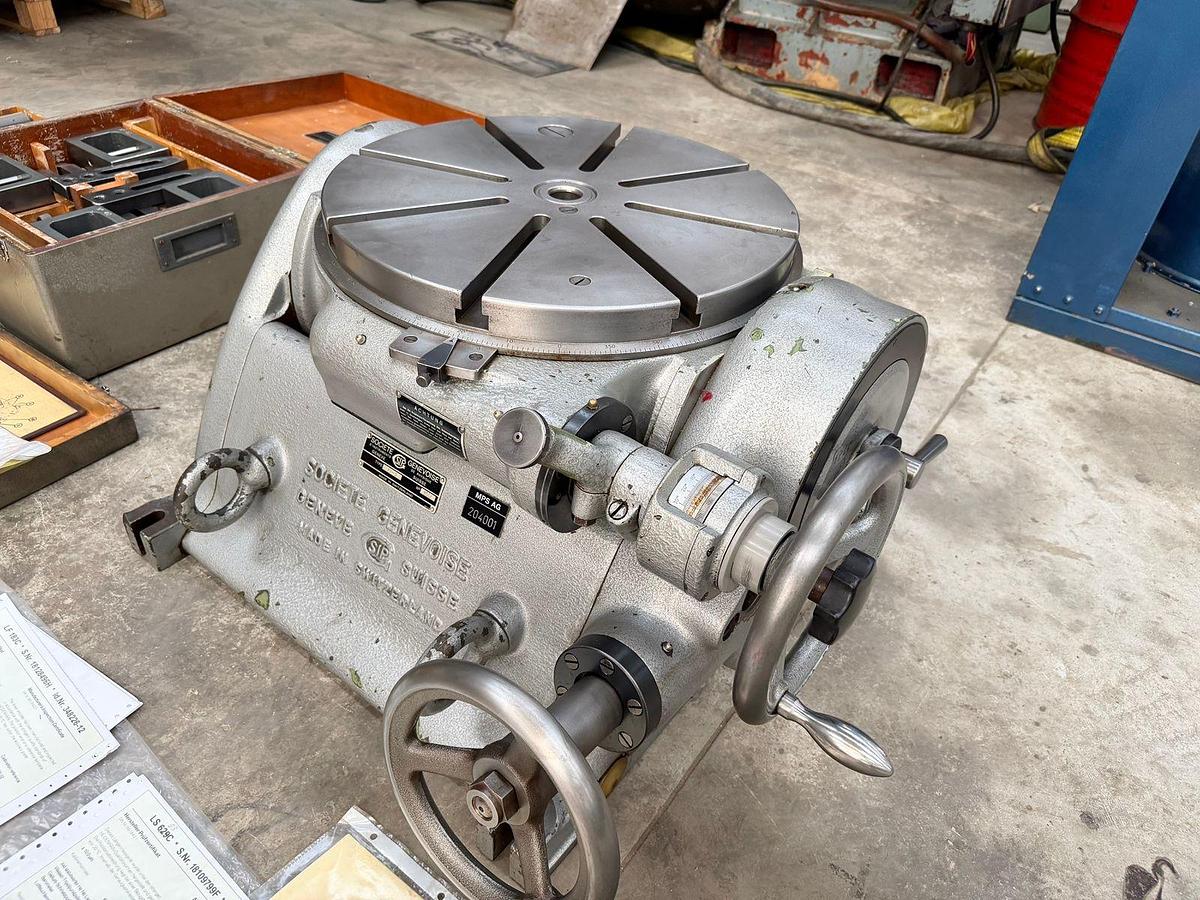

- Complete with SIP PI-5 Rotating & Tilting type Table (Diameter 450 mm).

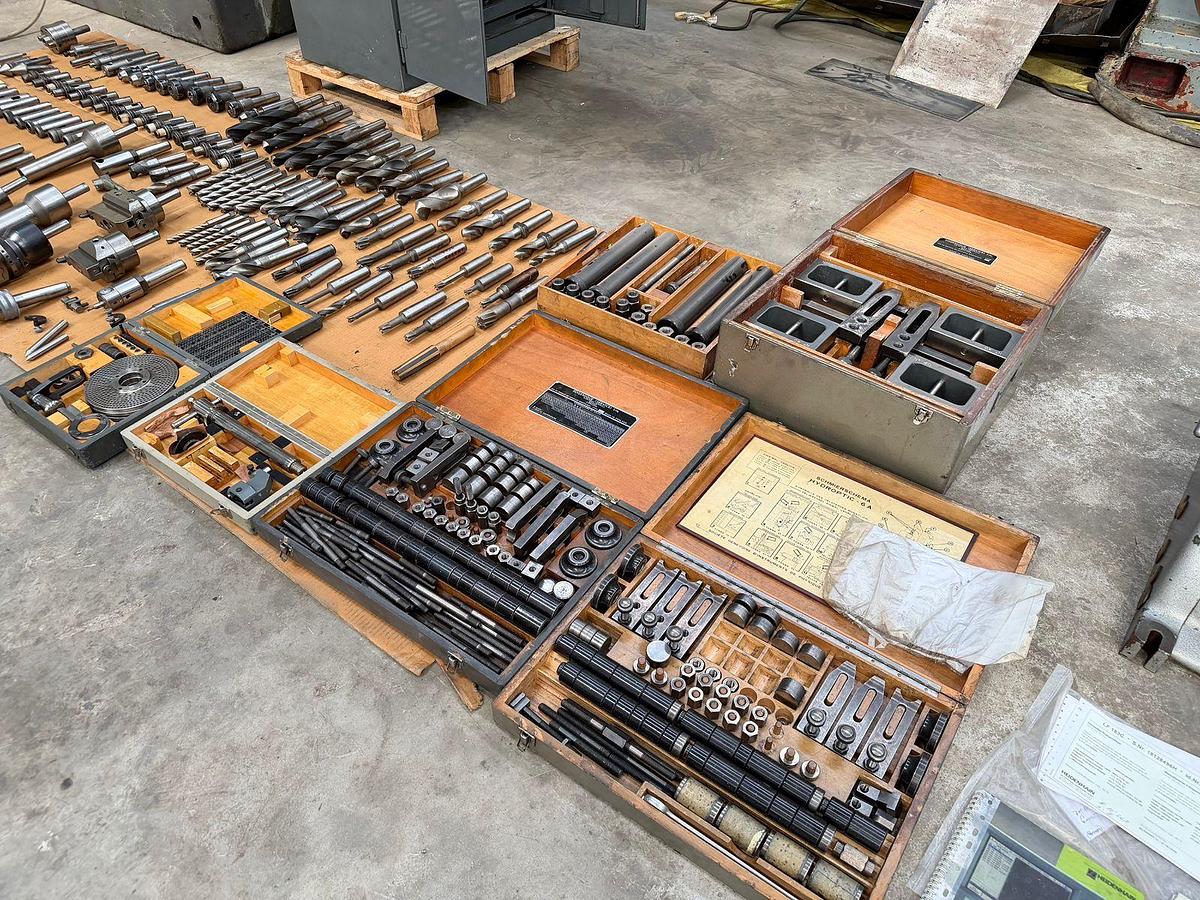

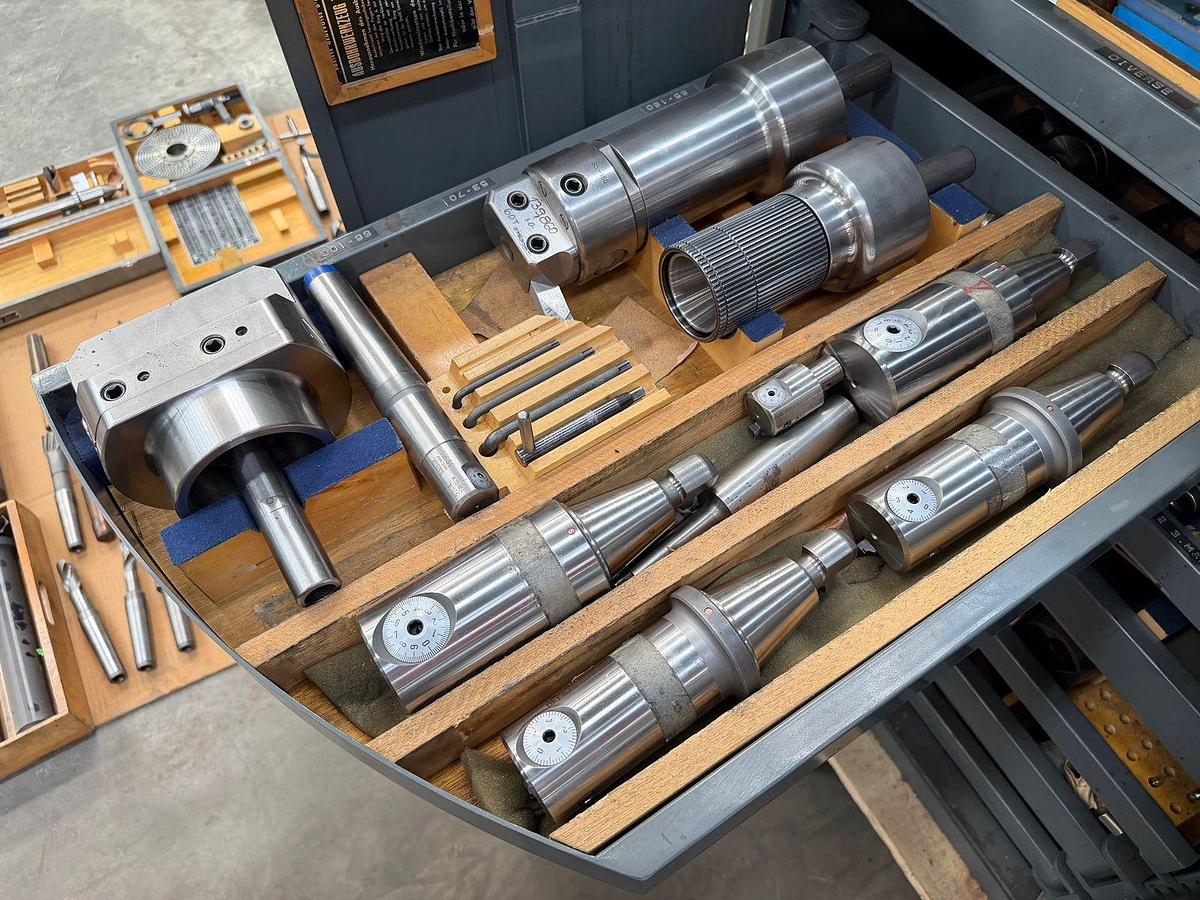

- Complete with multiple SIP micro-boring heads, assorted tools, drills & accessories

- Complete with Operating Manual, Electrical Drawings & other technical documentation.

- Machine is in excellent working condition.
