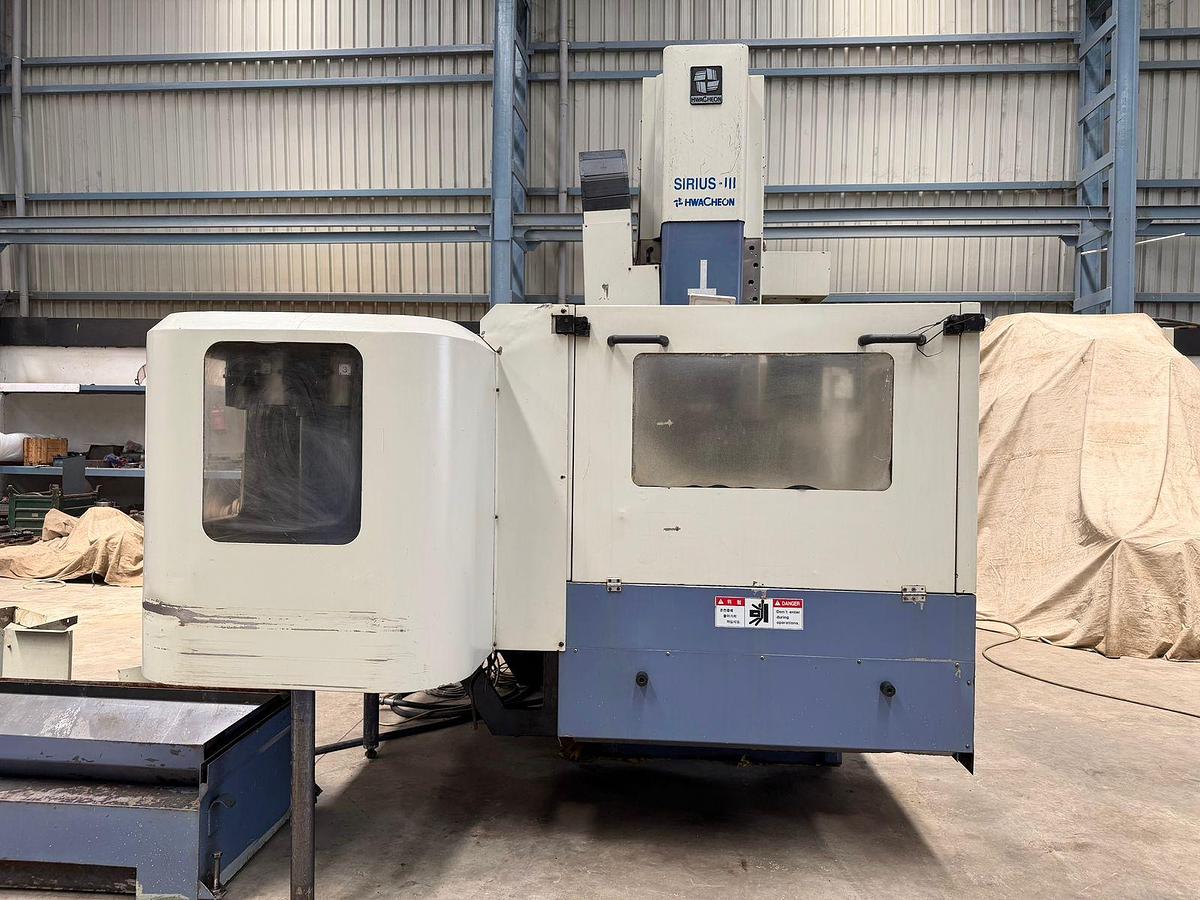

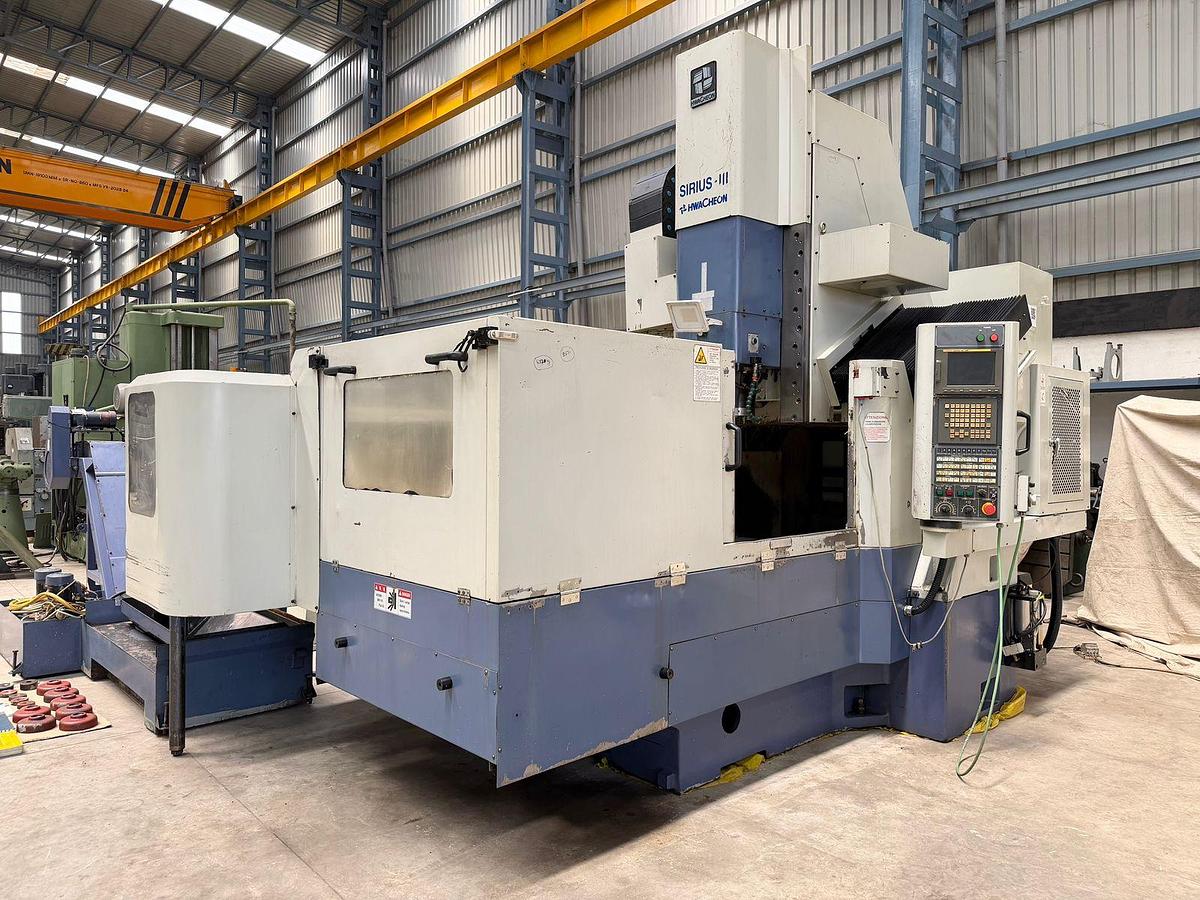

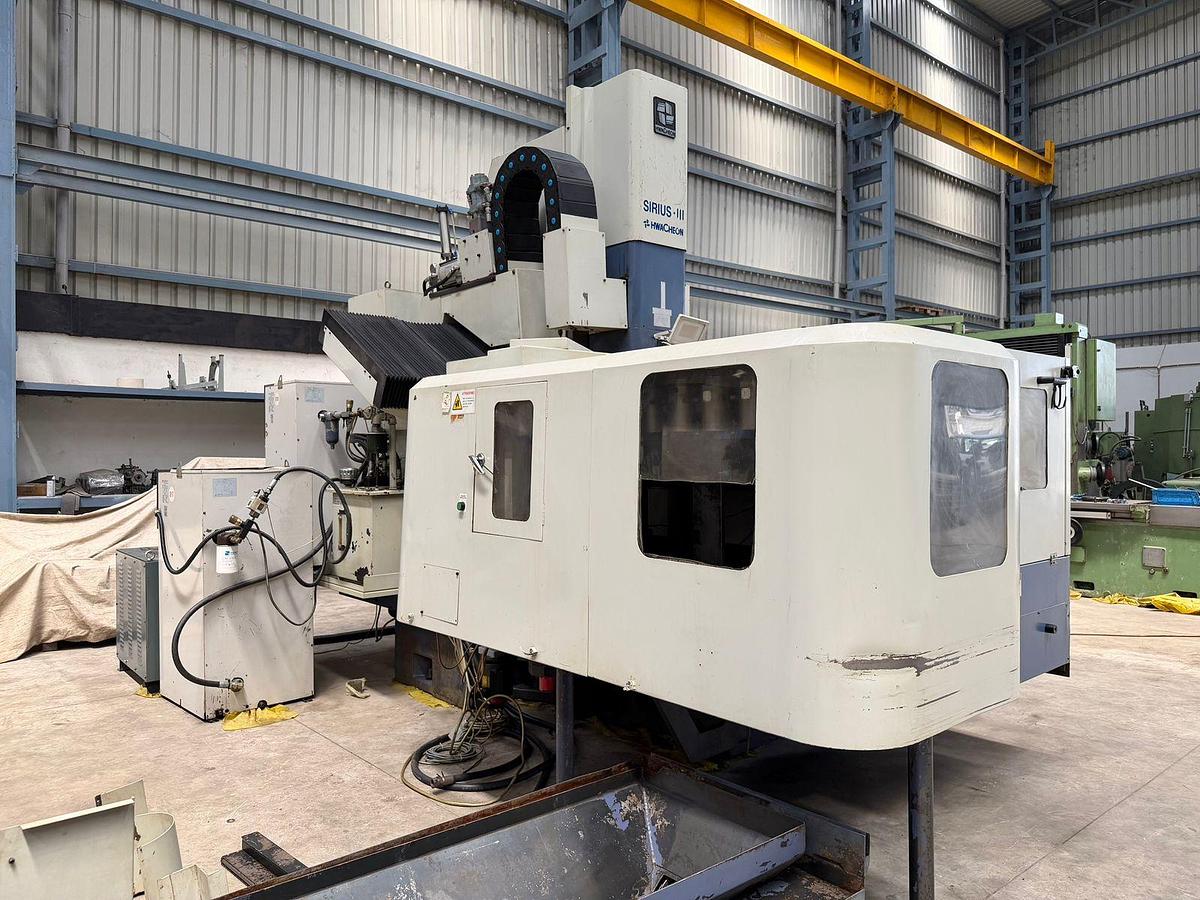

Hwacheon (Korea) Sirius III Double Column Heavy-Duty Vertical Machining Center

Heavy-duty Double Column Vertical Machining Center made by Hwacheon (Korea), Model Sirius III, available in excellent working condition. The machine features a bridge-type (double column) construction, ensuring high rigidity, minimal vibration, and superior stability compared to conventional C-frame machines. It is suited for heavy-duty cutting as well as precision finishing operations. Designed for machining heavy workpieces up to 2500 kg, the Sirius III is equipped with a powerful 30/25 kW spindle motor. The technical details are as follows -

Make - Hwacheon (Korea)

Model - Sirius III

Table Size - 1400 mm x 700 mm

XYZ Travels - 1100 mm x 700 mm x 650 mm

Max. Height between Table and Spindle Support - 620 mm

Distance between Columns - 1000 mm

Spindle Speeds - 30 to 8000 rpm

Spindle Taper - BT-50

Spindle Motor - 30 / 25 kW

CNC Controller - Fanuc 18i-MB

Automatic Tool Changer (ATC) Capacity - 30 Tools

Rapid Traverse Rate - 24 m/min

Table Load Capacity - 2500 kg

Machine Weight - 16.5 Tons (Approximately)

- Double column (bridge-type) design for high rigidity & heavy machining.

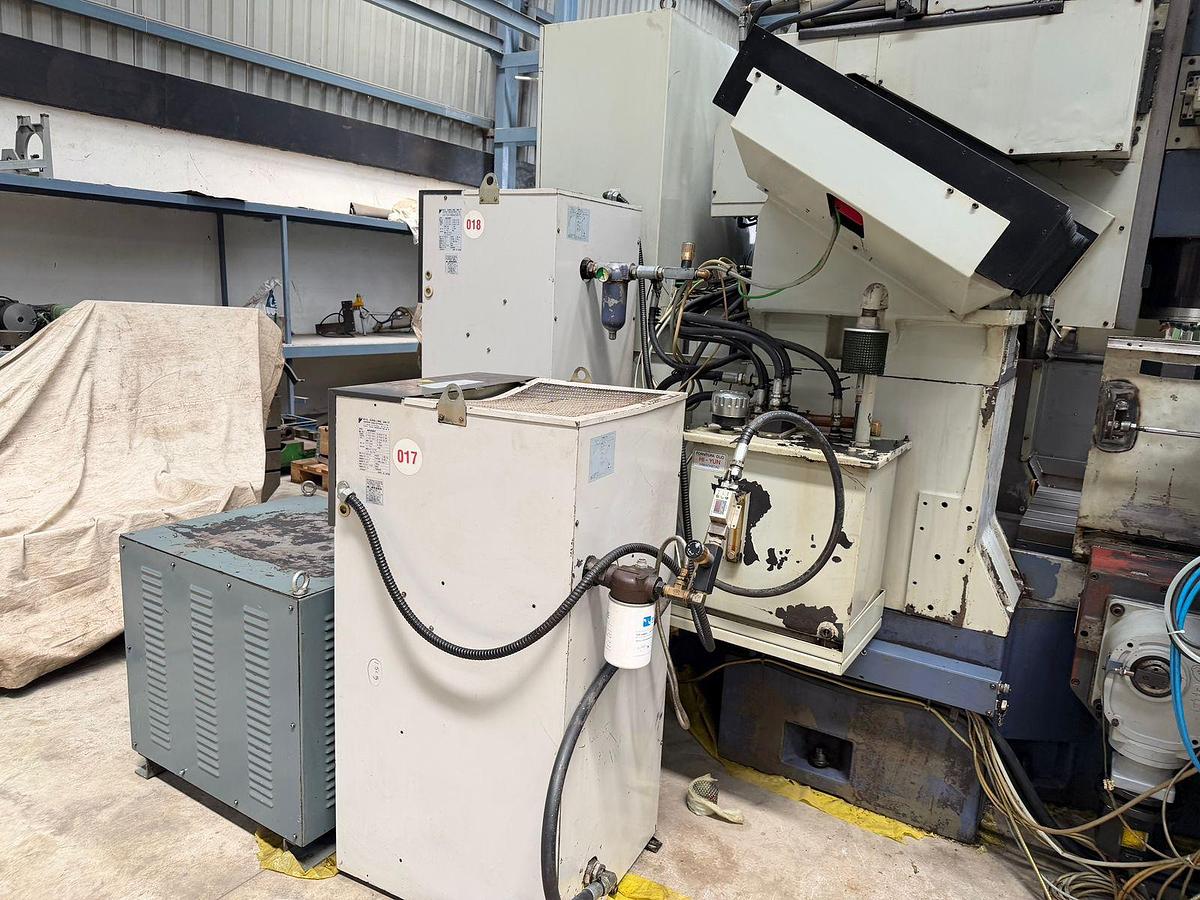

- Equipped with spindle oil chiller & hydraulic oil chiller.

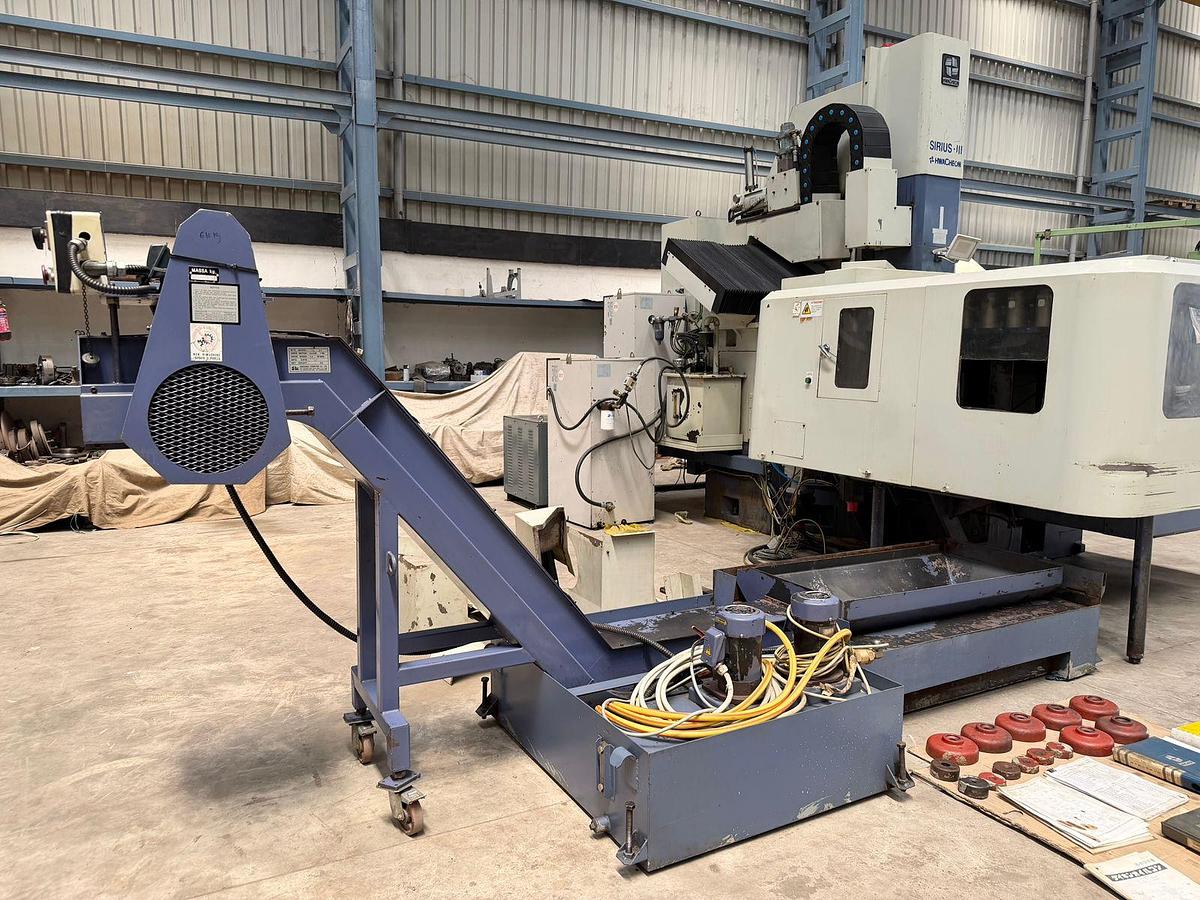

- Complete with chip conveyor, coolant tank & pump.

- Complete with step-down transformer, guards & covers.

- Operating Manuals, Electrical Drawings & other technical documentation are available.

- Machine in excellent working condition.
