Colchester Tornado 220M CNC TurnMill Center
Colchester Tornado 220M CNC TurnMill Center
Contact us for price
Location:New Delhi, India
Description

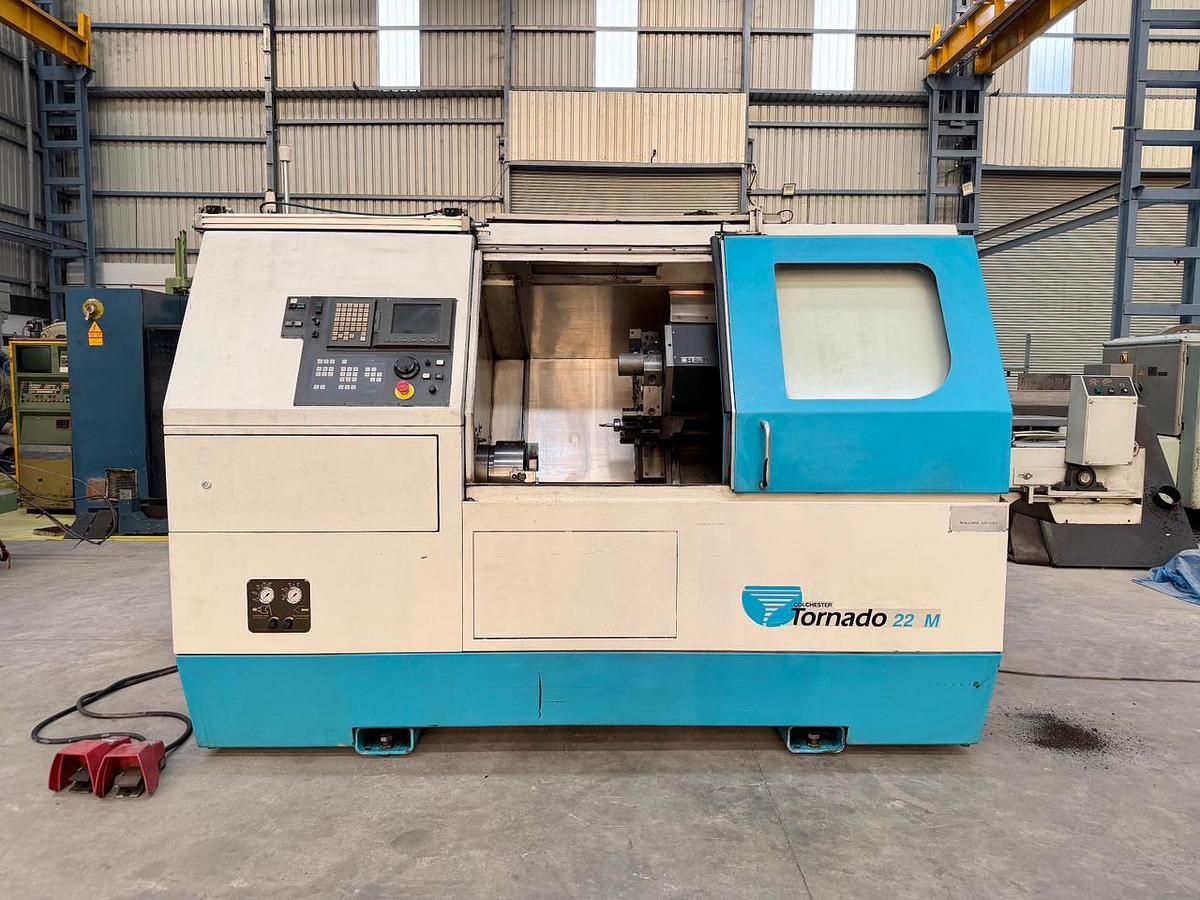

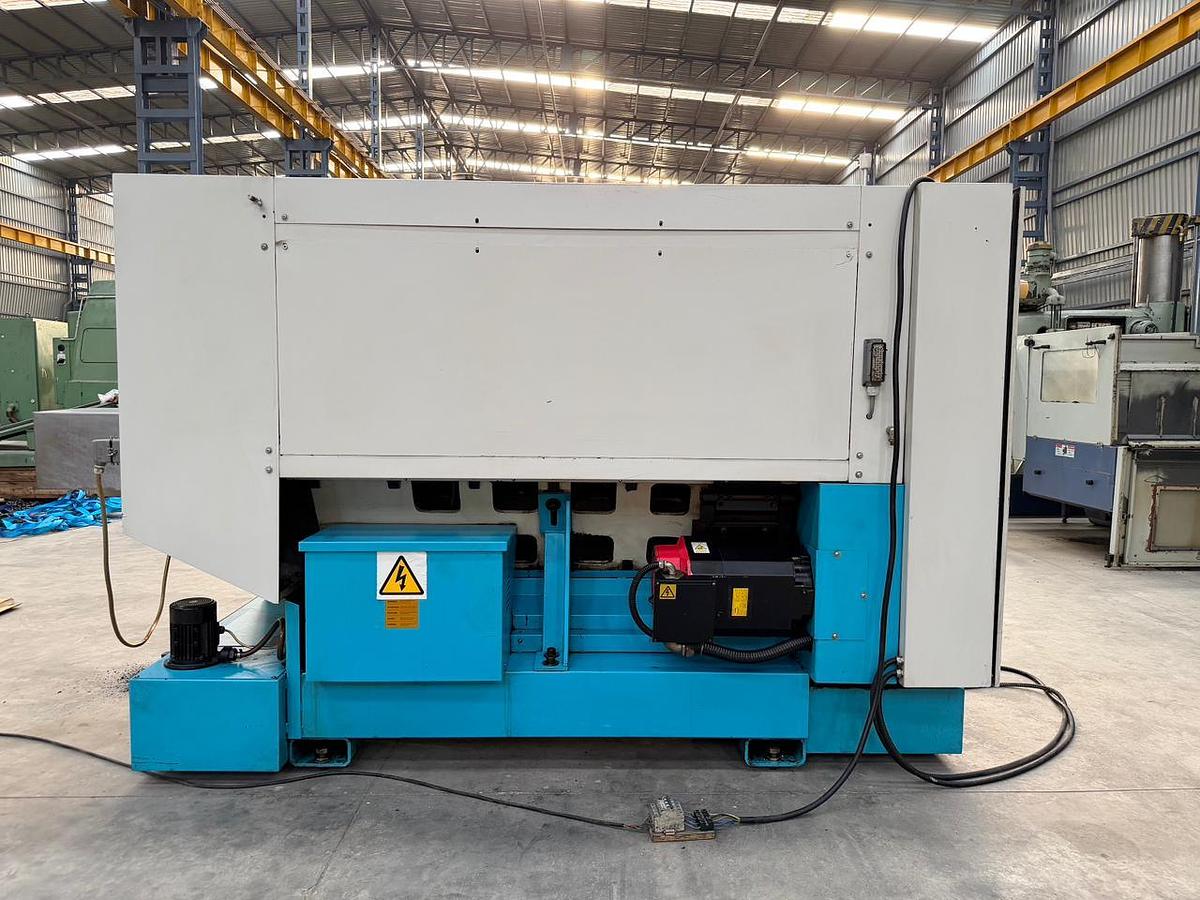

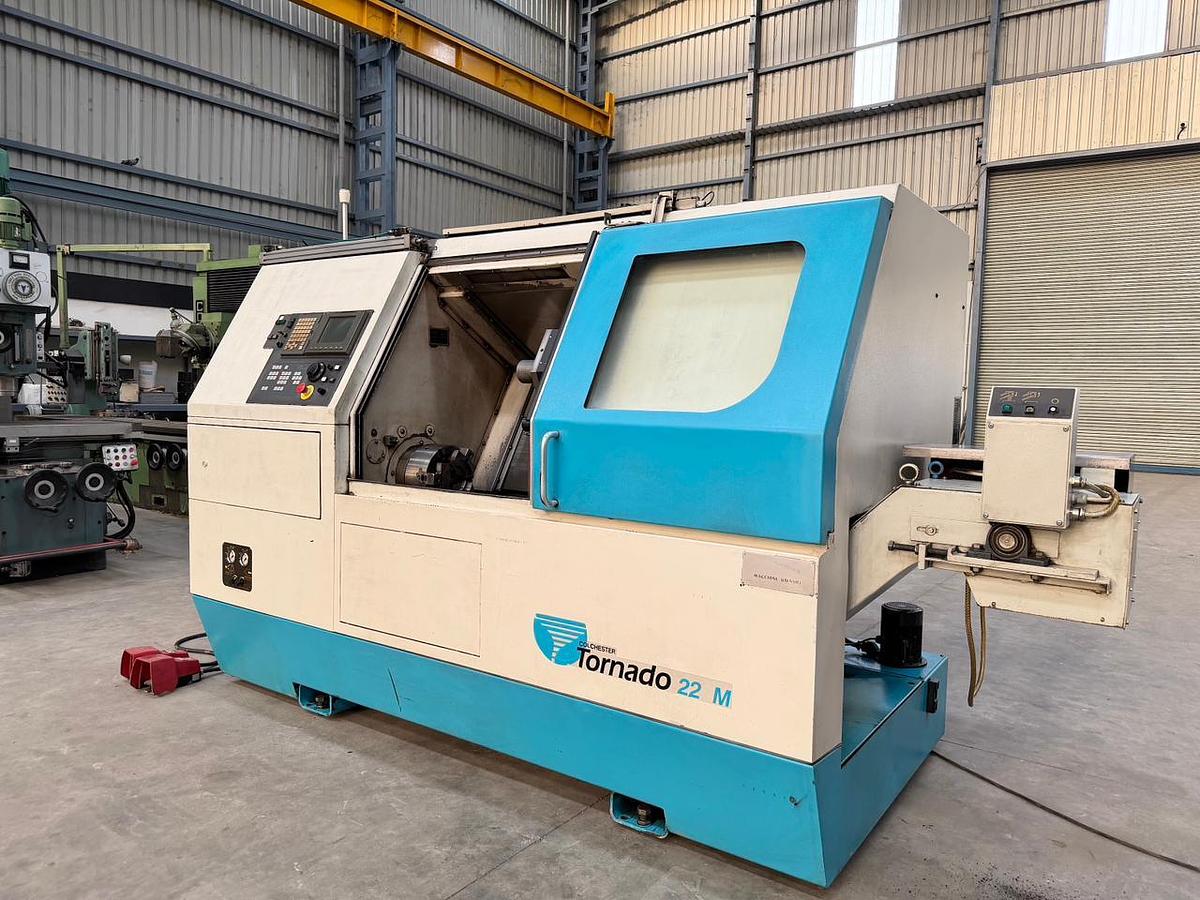

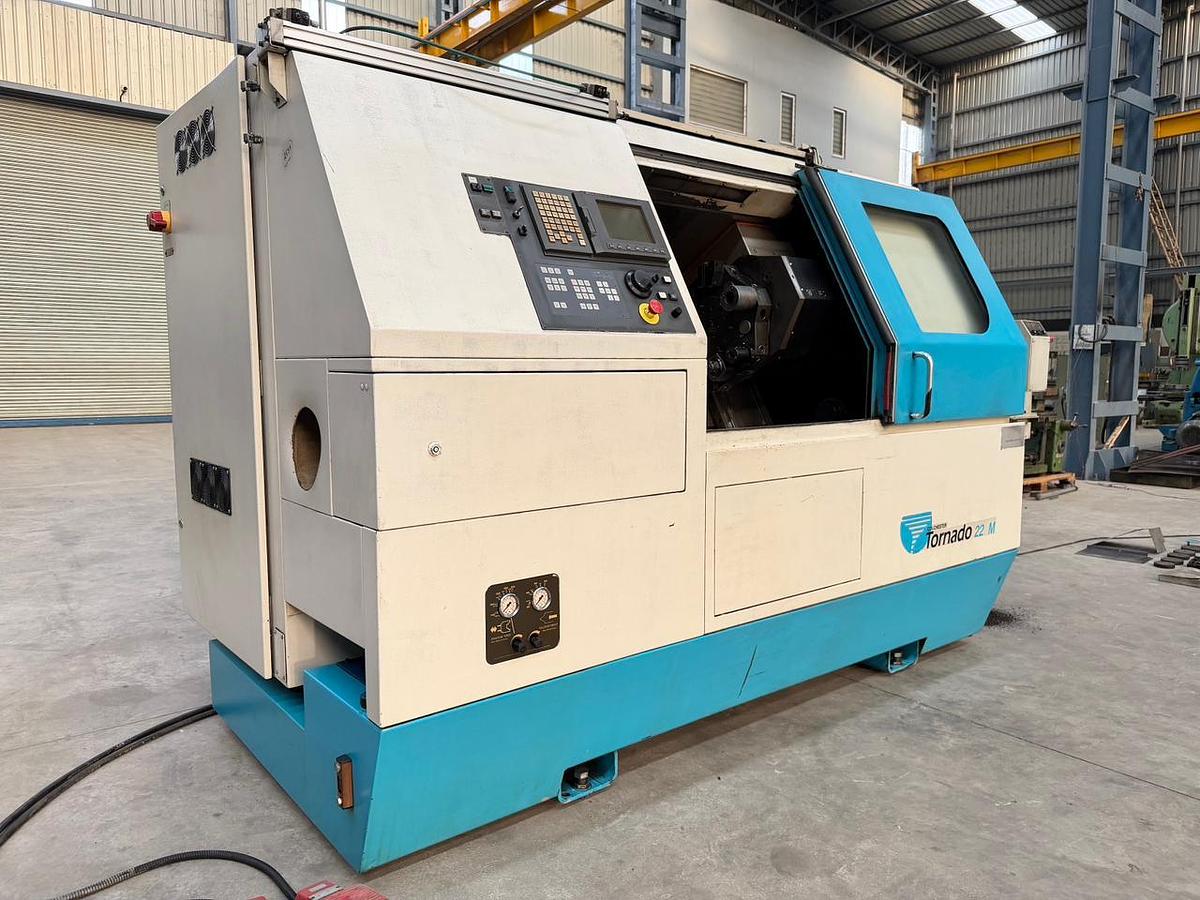

CNC TurnMill Center made by Colchester (England), Model Tornado 220M, available in excellent working condition. This is a 3-axis TurnMill Center equipped with C-axis and live tooling, enabling turning, milling, drilling, and tapping operations in a single setup. The machine is fitted with a Fanuc 21i-T CNC controller. The machine is supplied with step-down transformer, chip conveyor, multiple spare jaws, tool holders, along with operating manual, electrical drawings, and technical documentation. The technical details are as follows -
Make - Colchester (England)
Model - Tornado 220M
Max. Machining Diameter - 260 mm
Max. Machining Length - 540 mm
Max. Spindle Speed - 3500 RPM
Spindle Bore - 77.5 mm
Draw Tube Bar Capacity - 65 mm
Chuck Diameter - 254 mm
Max. Distance between Centers - 800 mm
Max. Swing Diameter over Bed - 510 mm
CNC Controller - Fanuc Series 21i-T
C-Axis Resolution - 0.001 degree
No. of Turret Tool Stations - 12 Tools
No. of Rotating Tools - 6 Tools
Max. Speed of Tool Rotation - 4000 RPM
Max. Torque of Rotating Tool - 35 Nm
Turret Type - Hydraulic Locking ; Servo Indexing ; Bidirectional.
Tail-Stock Taper - MT-5
- 3-Axis CNC TurnMill Center with "C"-Axis and Live Tooling.
- Suitable for turning, milling, drilling & tapping operations.
- Complete with Step Down Transformer & Chip conveyor.

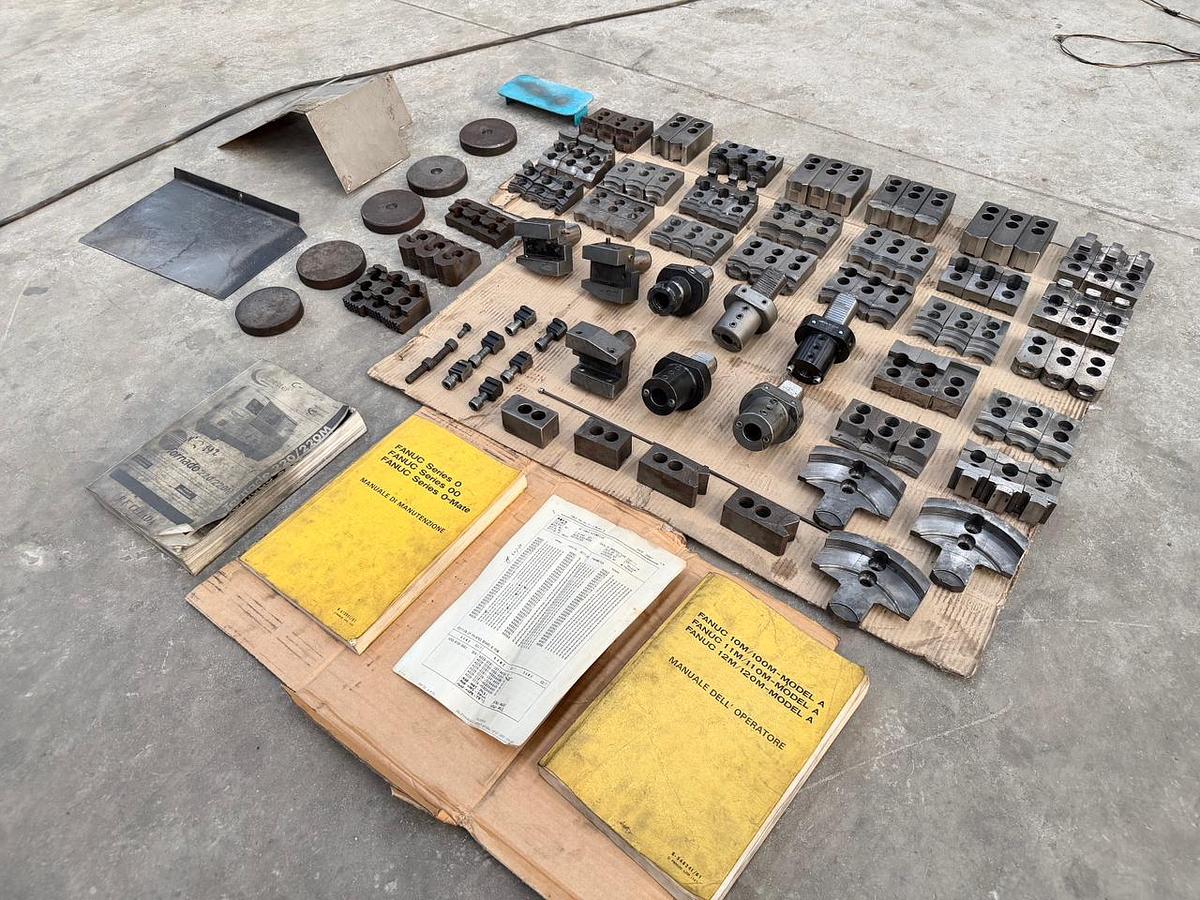

- Complete with multiple spare Jaws, many Tool Holders & other accessories.
- Operating Manuals, Electrical Drawings & documentation available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Colchester |
| Model | Tornado 220M |
| Condition | Used |
| Stock Number | 2839 |
| Make | Colchester (England) |
| Model | Tornado 220M |
| Max. Machining Diameter | 260 mm |
| Max. Machining Length | 540 mm |
| Max. Spindle Speed | 3500 RPM |
| Spindle Bore | 77.5 mm |
| Draw Tube Bar Capacity | 65 mm |
| Chuck Diameter | 254 mm |
| Max. Distance between Centers | 800 mm |
| Max. Swing Diameter over Bed | 510 mm |
| CNC Controller | Fanuc Series 21i-T |
| C-Axis Resolution | 0.001 degree |
| No. of Turret Tool Stations | 12 Tools |
| No. of Rotating Tools | 6 Tools |
| Max. Speed of Tool Rotation | 4000 RPM |
| Max. Torque of Rotating Tool | 35 Nm |
| Turret Type | Hydraulic Locking ; Servo Indexing ; Bidirectional. |
| Tail-Stock Taper | MT-5 |
| Other Information 1 | - 3-Axis CNC TurnMill Center with "C"-Axis and Live Tooling. |
| Other Information 2 | - Suitable for turning, milling, drilling & tapping operations. |
| Other Information 3 | - Complete with Step Down Transformer & Chip conveyor. |
| Other Information 4 | - Complete with multiple spare Jaws, many Tool Holders & other accessories. |
| Other Information 5 | - Operating Manuals, Electrical Drawings & documentation available. |
| Other Information 6 | - Machine is in excellent working condition. |
