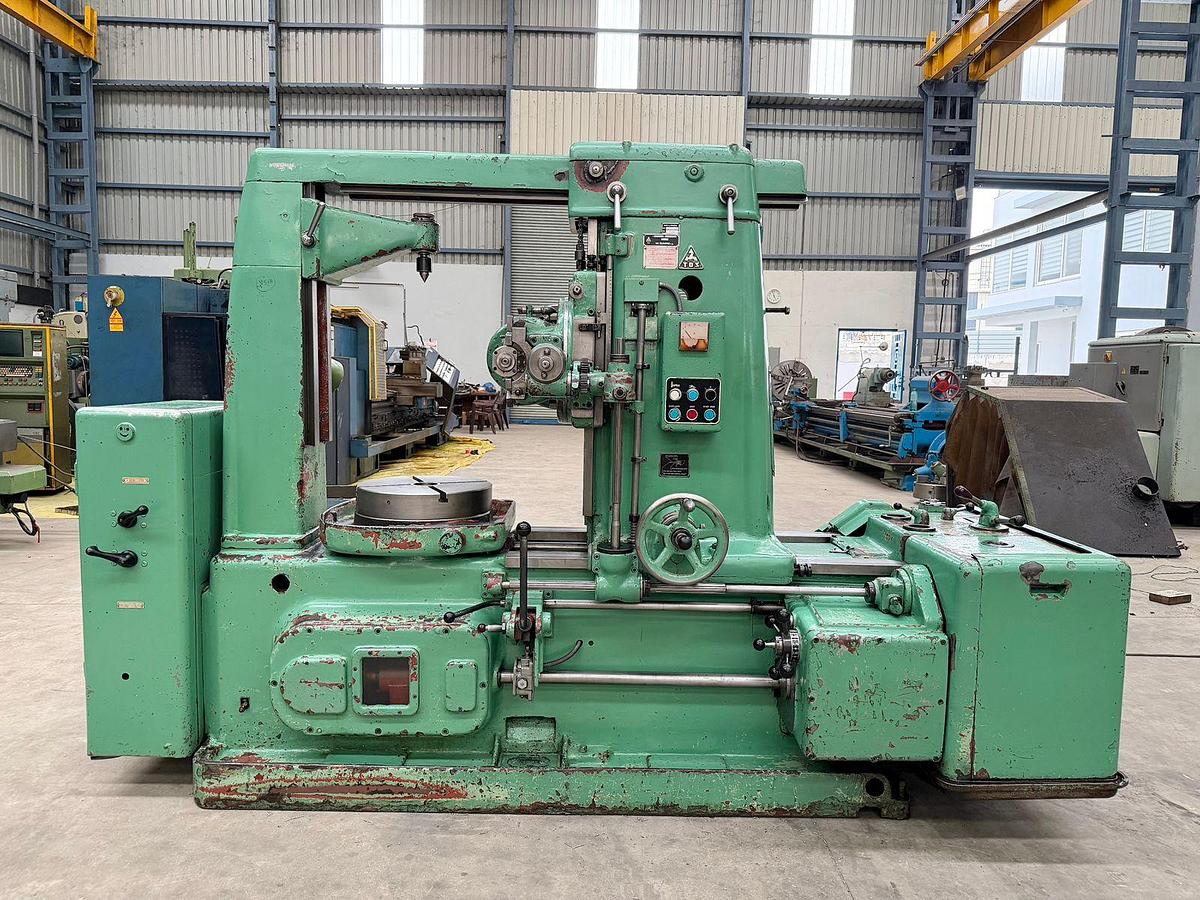

TOS Czech FO-6 Mechanical Gear Hobbing Machine

Description

Gear Hobbing Machine made by TOS (Czech Republic), Model FO-6, available in excellent working condition. The machine has a maximum capacity of 6 Modules and can accommodate gear diameters up to 600 mm with tailstock, making it suitable for a wide range of gear cutting applications. The machine features feed and rapid movements in radial, vertical, and tangential directions. It is complete with change gears, arbors, job supports, along with operating manuals and accessories. The machine is capable of spur and helical gear cutting as well as worm-wheel cutting. The technical details are as follows -

Make - TOS (Czech Republic)

Model - FO-6

Max. Capacity - 6 modules

Max. Diameter of Gear (with Tailstock) - 600 mm

Table Diameter - 420 mm

Vertical Travel of Hob Slide - 350 mm

Hob Cutter Speeds - 15 to 190 RPM

- Rapid & Feed Movements on Radial, Vertical & Tangential Travels.

- Complete with Change Gears, Arbors, Job Supports & other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Specifications

Manufacturer	TOS
Model	FO-6
Condition	Used
Stock Number	2568
Make	TOS (Czech Republic)
Model	FO-6
Max. Capacity	6 modules
Max. Diameter of Gear (with Tailstock)	600 mm
Table Diameter	420 mm
Vertical Travel of Hob Slide	350 mm
Hob Cutter Speeds	15 to 190 RPM
Other Information 1	- Rapid & Feed Movements on Radial, Vertical & Tangential Travels.
Other Information 2	- Complete with Change Gears, Arbors, Job Supports & other accessories.
Other Information 3	- Operating Manual and Electrical Drawings are available.
Other Information 4	- Machine is in excellent working condition.
