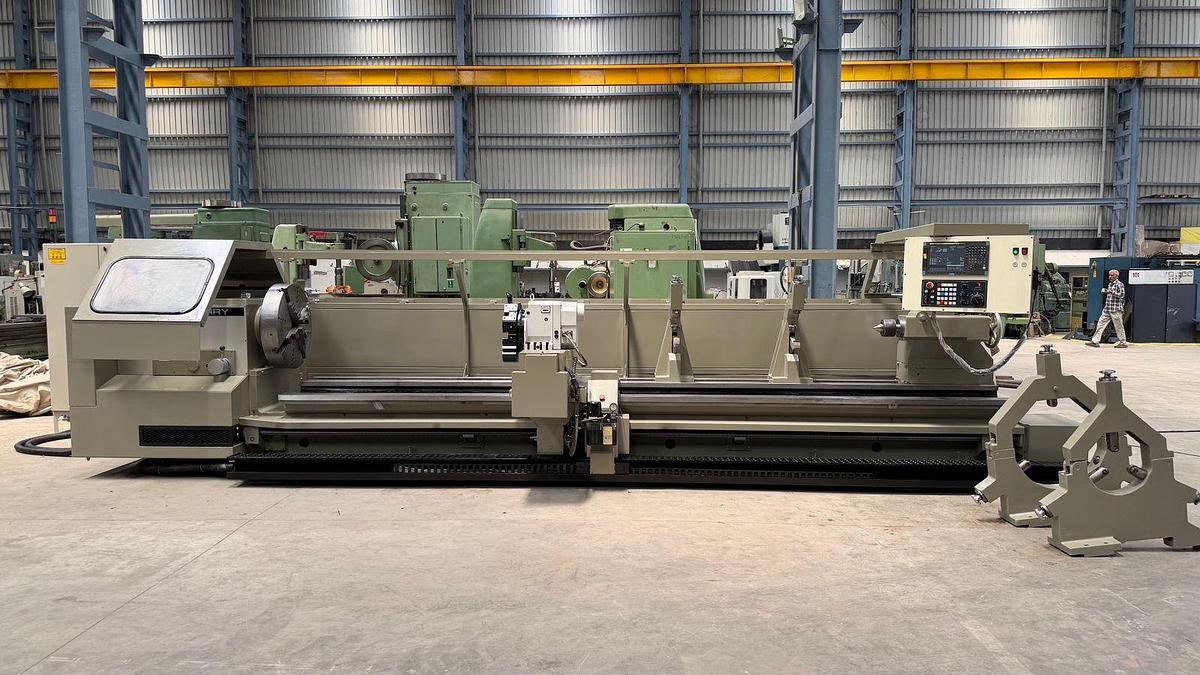

Binns & Berry England 700 mm x 4500 mm Heavy-Duty CNC Lathe

Heavy-duty CNC Lathe made by Binns & Berry (England), fully retrofitted in 2026, available in excellent working condition. The machine features a robust 3-bedway construction and is equipped with a new Fanuc 0i-TF Plus CNC controller, new servo motors & drives, and a new Pragati BTP-125 turret (all installed during the retrofit). With a maximum turning diameter of 700 mm and a maximum job length of 4500 mm, the machine is ideal for heavy shaft machining, roll turning, threading operations, and other large component machining. The technical details are as follows -

Make - Binns & Berry (England)

Center Height - 425 mm

Max. Length of Job - 4500 mm

Max. Job Diameter over Cross-Slide - 700 mm

Max. Job Diameter over Bed - 850 mm

4-Jaw Chuck Diameter - 650 mm

Spindle Bore - 105 mm

Spindle Speeds - 4 to 1250 RPM (3-step gearbox)

Bed Width - 750 mm

CNC Controller - Fanuc 0i-TF Plus

Turret Type - Pragati BTP-125 (8 Tool Stations)

X-Axis Servo Motor - 11 Nm (with 1:3 Timing Belt Ratio)

Z-Axis Servo Motor - 36 Nm (with 1:3 Timing Belt Ratio)

Spindle Motor Power - 26 / 22 kW

- Complete with 2 x Follow Rests and 2 x Steady Rests.

- New Fanuc 0i-TF Plus CNC system.

- New servo motors & drives (X & Z axes).

- New Pragati BTP-125 turret.

- Spindle driven by servo motor with VFD and encoder feedback.

- Machine is in excellent working condition.
