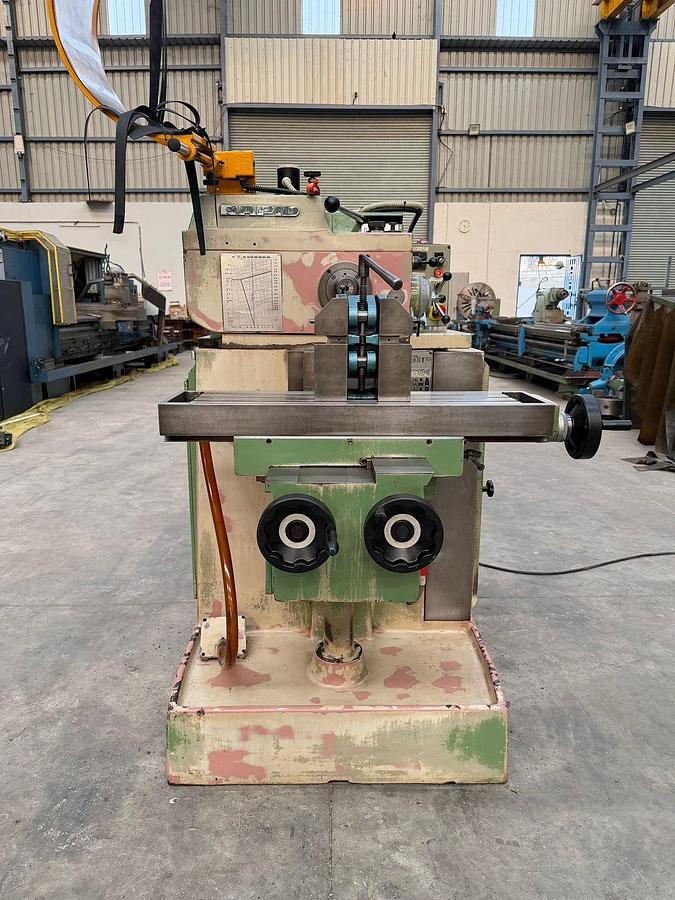

Rapid Italy 200NK Horizontal Slot Milling Machine

Rapid (Italy) make Automatic Horizontal Slot Milling Machine, Model 200NK, available in excellent working condition. This is an Auto-Cycle machine suitable for automatic horizontal milling of keyways, slots, notches, grooves, and similar profiles, featuring automatic depth increase for efficient and repeatable machining operations. The technical details are as follows -

Make - Rapid (Italy)

Model - 200NK

Max. Slot Width - 25 mm

Max. Slot Length - 200 mm + Tool Diameter

Max. Slot Depth - 50 mm

Max. Slot Length using Table Travel - 600 mm

Table Size - 850 mm × 220 mm

XYZ Travel of Table - 400 mm × 200 mm × 300 mm

Spindle Speed Range - 250 RPM to 2000 RPM

Quill Diameter - 100 mm

Automatic Depth Feed Rate - 0.05 mm/stroke to 0.7 mm/stroke

Milling Head Travel Rate - 0.7 strokes/min to 28 strokes/min

- Auto-Cycle Working with Automatic Depth Increase.

- Suitable for Milling Keyways, Slots, Notches, Grooves, etc.

- Machine is in excellent working condition.
