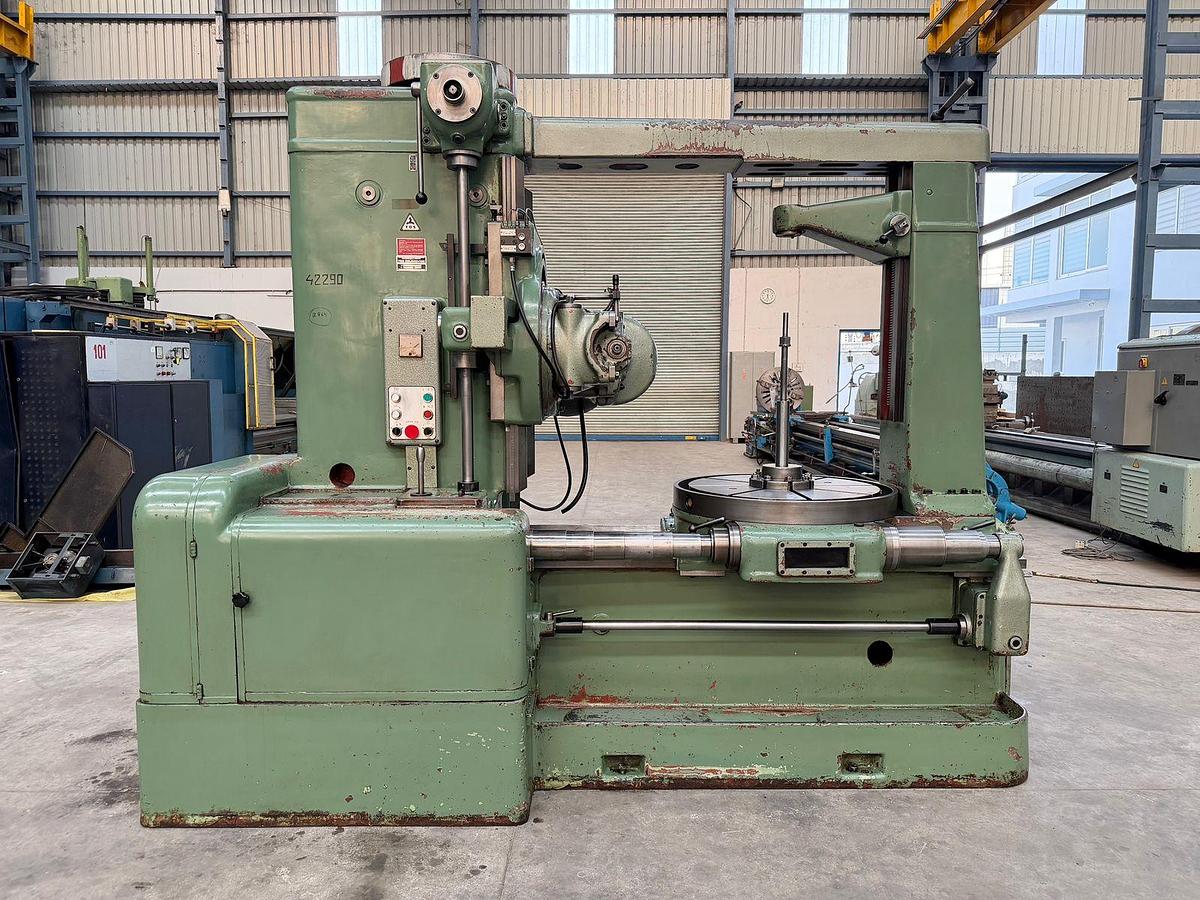

TOS FO-10 Gear Hobbing Machine

Description

TOS (Czech Republic) make Gear Hobbing Machine, Model FO-10, available in excellent working condition. The machine has a maximum capacity of 10 Modules and can accommodate gear diameters up to 1000 mm. It is also equipped with a Single Indexing Arrangement, enhancing its gear cutting capabilities. The machine is supplied complete with Change Gears, Arbours, Mandrels, Job Supports, and various accessories. Operating Manual & Electrical Drawings are also available with the machine. The technical details are as follows -

Make - TOS (Czech Republic)

Model - FO-10

Max. Module Capacity - 10 Modules

Max. Gear Diameter - 1000 mm

Max. Gear Width - 400 mm

Table Diameter - 850 mm

Max. Hob Cutter Size - Diameter 170 mm x 180 mm Length

Hob Speed Range - 20 RPM to 125 RPM

Max. Gear Diameter (With Tailstock) - 750 mm

- Equipped with a single-indexing arrangement.

- Complete with Change Gears, multiple Arbours & Mandrels.

- Complete with multiple Job Supports and many other accessories.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Specifications

Manufacturer	TOS
Model	FO-10
Condition	Used
Stock Number	2864
Make	TOS (Czech Republic)
Model	FO-10
Max. Module Capacity	10 Modules
Max. Gear Diameter	1000 mm
Max. Gear Width	400 mm
Table Diameter	850 mm
Max. Hob Cutter Size	Diameter 170 mm x 180 mm Length
Hob Speed Range	20 RPM to 125 RPM
Max. Gear Diameter (With Tailstock)	750 mm
Other Information 1	- Equipped with a single-indexing arrangement.
Other Information 2	- Complete with Change Gears, multiple Arbours & Mandrels.
Other Information 3	- Complete with multiple Job Supports and many other accessories.
Other Information 4	- Operating Manual & Electrical Drawings are available.
Other Information 5	- Machine is in excellent working condition.
