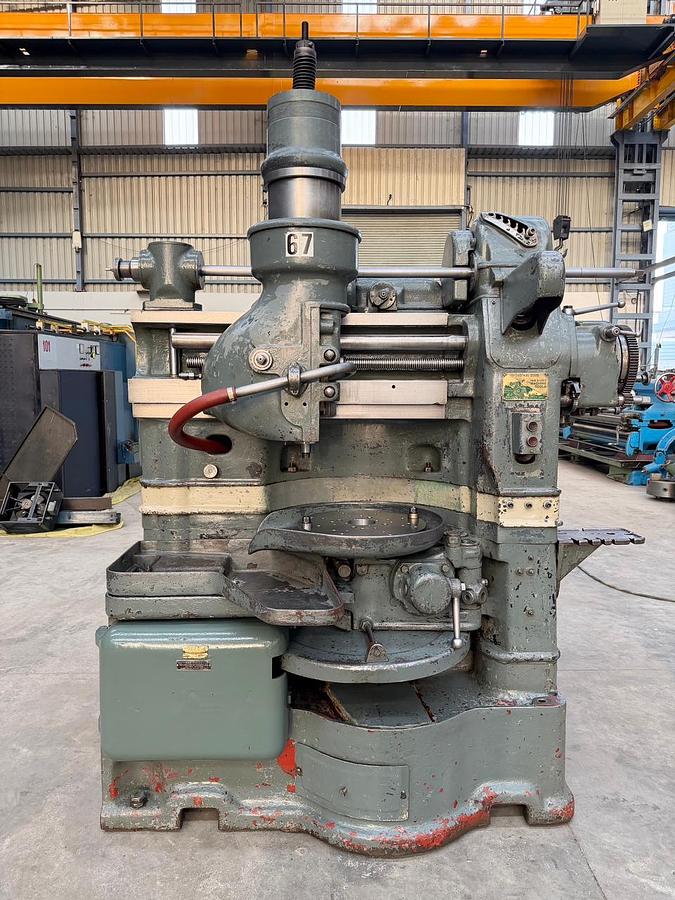

Fellows Type 6A Gear Shaper Machine
Fellows Type 6A Gear Shaper Machine
Contact us for price
Location:New Delhi, India
Description
Fellows (USA) make Gear Shaping Machine, Model Type 6A, available in excellent working condition. The machine is equipped with a 90 mm Packing Block, increasing the height between the Spindle and Table for enhanced job handling capability. The machine has a maximum capacity of 6.3 Modules with a maximum gear diameter of 458 mm (500 mm). It is supplied complete with Change Gears, and the Operating Manual is also available. The technical details are as follows -
Make - Fellows (USA)
Model - Type 6A
Max. Module Capacity - 6.3 Modules
Max. Gear Diameter - 458 mm (500 mm)
Max. Stroke Length - 140 mm
Stroke Rate Range - 50 strokes/min to 300 strokes/min
Height between Table Top & Machine Body - 250 mm
- Equipped with a packing block of 90 mm height.
- Machine is complete with Change Gears.
- Operating Manual is available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Fellows |
| Model | Type 6A |
| Condition | Used |
| Stock Number | 2440 |
| Make | Fellows (USA) |
| Model | Type 6A |
| Max. Module Capacity | 6.3 Modules |
| Max. Gear Diameter | 458 mm (500 mm) |
| Max. Stroke Length | 140 mm |
| Stroke Rate Range | 50 strokes/min to 300 strokes/min |
| Height between Table Top & Machine Body | 250 mm |
| Other Information 1 | - Equipped with a packing block of 90 mm height. |
| Other Information 2 | - Machine is complete with Change Gears. |
| Other Information 3 | - Operating Manual is available. |
| Other Information 4 | - Machine is in excellent working condition. |
