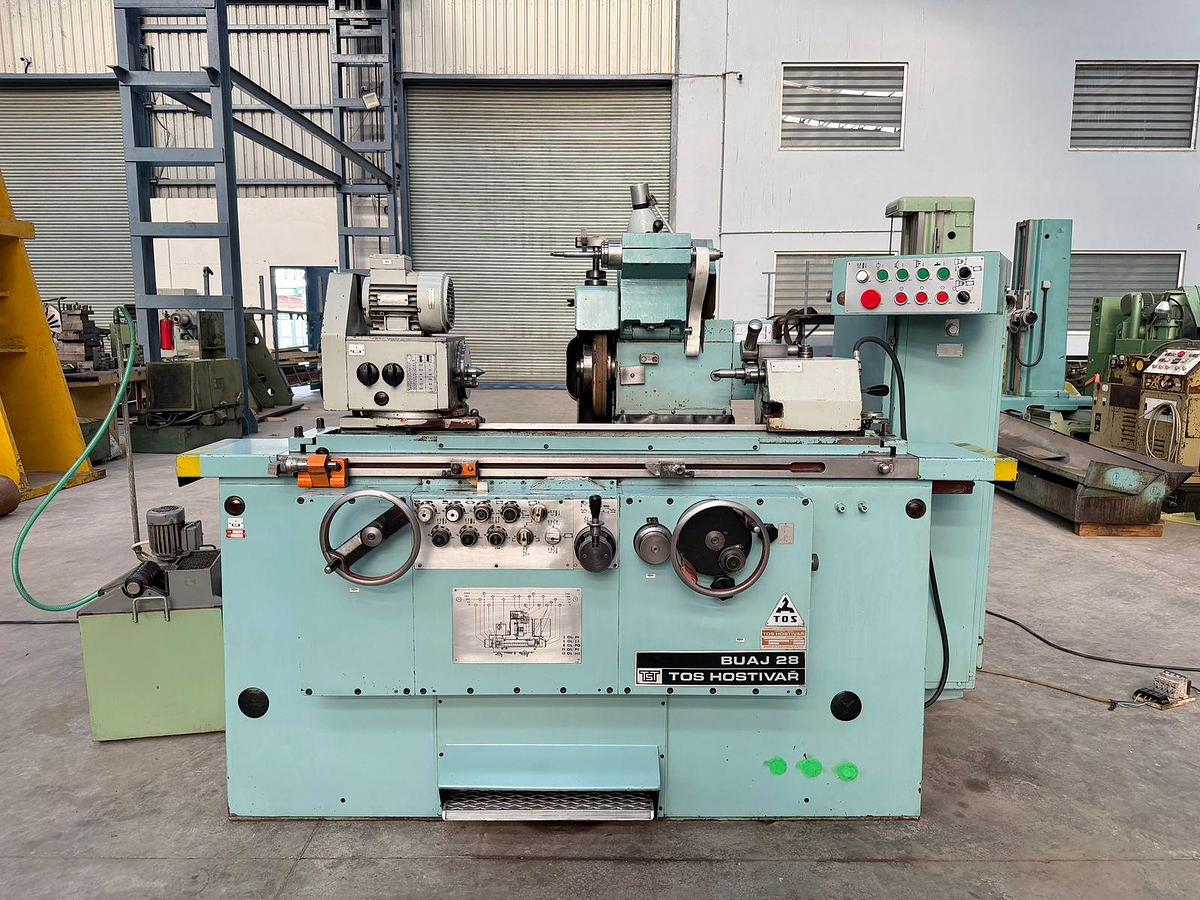

TOS BUAJ-28 630 Precision Universal Cylindrical Grinder

High-Precision Universal Cylindrical Grinding Machine made by TOS-Hostivar (Czech Republic), Model BUAJ-28, available in excellent working condition. The machine is equipped with an Internal Grinding Attachment, making it suitable for both External & Internal Grinding Operations. This is one of the latest conventional cylindrical grinder series manufactured by TOS-Hostivar, designed for precision grinding applications with a least count of 1 Micron (0.001 mm). The machine is complete with Job Steady, Wheel Dresser, Wheel Flanges, Magnetic Coolant Filtration Unit, Coolant Tank & Pump, Splash Guards, Wheel Balancing Stand, Operating Manual, Electrical Drawings, and various accessories. Technical Specifications are as follows -

Make - TOS Hostivar (Czech Republic)

Model - BUAJ-28

Center Height - 145 mm

Max. Job Diameter - 280 mm

Max. Job Length - 630 mm

Grinding Wheel Size - 400 mm Diameter × 50 mm Width

Least Count - 1 Micron (0.001 mm)

Workhead Speed Range - 22.4 RPM to 710 RPM

Internal Grinding Spindle Diameter - 80 mm

- Equipped with Internal Grinding Attachment

- Features Delay, Auto-Slow, Hydraulic Tailstock, Dressing Cycle & Rapid Table Travel.

- Features Auto-Cut, Auto-Compensation, Plunge Grinding & Spark-Out.

- Complete with Job Steady, Wheel Dresser, Wheel Balancing Stand, Chuck & Wheel Flanges.

- Supplied with Collet Sets, Centers, Splash Guards & other accessories.

- Equipped with Magnetic Coolant Filtration Unit, Coolant Tank & Pump.

- Operating Manual & Electrical Drawings Available.

- Machine is in Excellent Working Condition.
