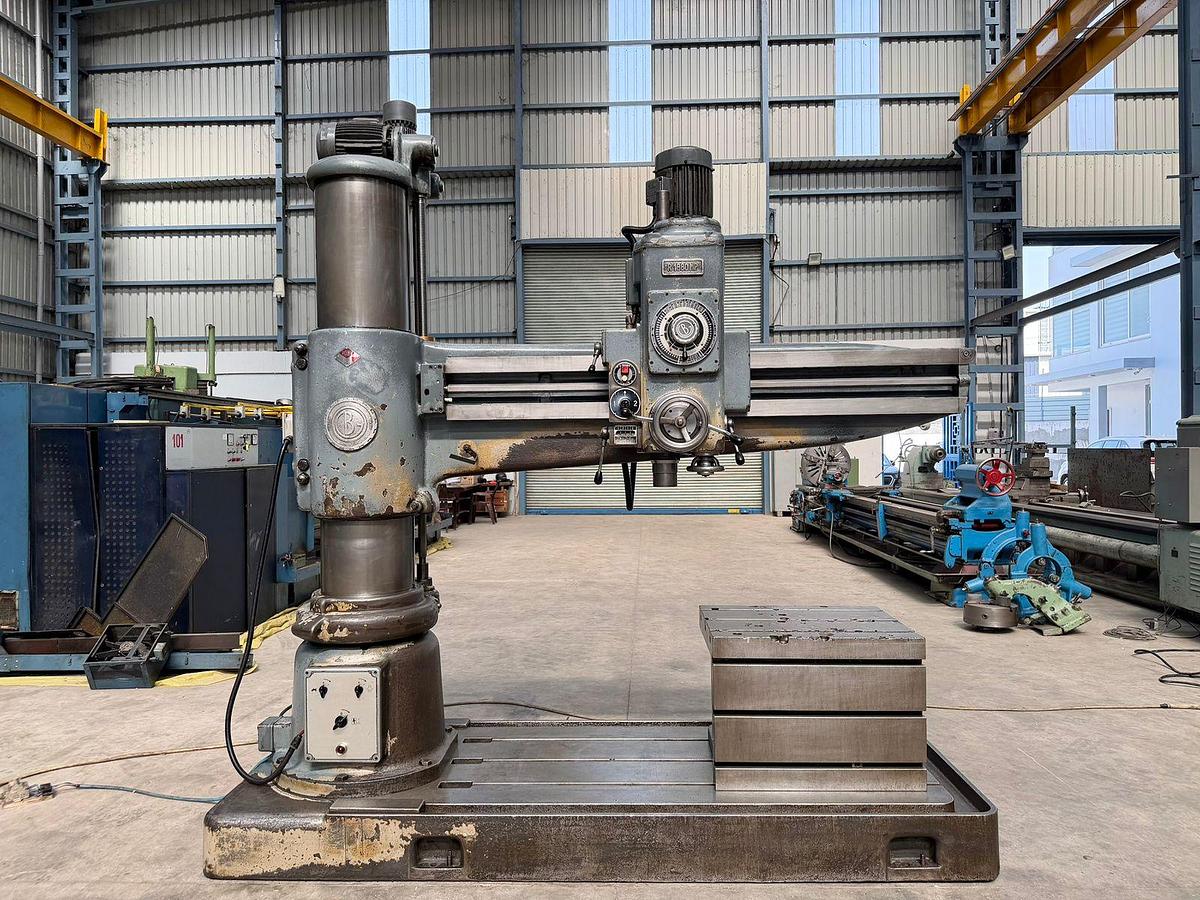

Breda Italy 65 mm x 2000 mm Radial Drilling Machine
Breda Italy 65 mm x 2000 mm Radial Drilling Machine
Contact us for price
Location:New Delhi, India
or
Call +91 98182 75782
Description
Heavy Duty Radial Drilling Machine made by Breda (Italy), Model R1880MP, available in excellent working condition. The Drilling Capacity of the machine is 65 mm and the Arm Length is 2000 mm. The technical details are as follows -
Make - Breda (Italy)
Model - R1880MP
Drilling Capacity - 65 mm
Arm Length - 2000 mm
Spindle Speeds - 30 RPM to 1200 RPM
Spindle Taper - MT-5
Spindle Feed Travel - 310 mm
Spindle Feed Rates - 0.05 mm/rev to 0.40 mm/rev
Vertical Travel of Arm - 830 mm
Max. Height between Spindle & Top of Base - 1650 mm
Cube Table Size - 750 mm × 600 mm
Machine Weight - 4485 kg (Approximately)
Clamping Type - Automatic / Motorised
- Machine is in excellent working condition.
Specifications
| Manufacturer | Breda |
| Model | R1880MP |
| Condition | Used |
| Stock Number | 2544 |
| Make | Breda (Italy) |
| Model | R1880MP |
| Drilling Capacity | 65 mm |
| Arm Length | 2000 mm |
| Spindle Speeds | 30 RPM to 1200 RPM |
| Spindle Taper | MT-5 |
| Spindle Feed Travel | 310 mm |
| Spindle Feed Rates | 0.05 mm/rev to 0.40 mm/rev |
| Vertical Travel of Arm | 830 mm |
| Max. Height between Spindle & Top of Base | 1650 mm |
| Cube Table Size | 750 mm × 600 mm |
| Machine Weight | 4485 kg (Approximately) |
| Clamping Type | Automatic / Motorised |
| Other Information | - Machine is in excellent working condition. |
