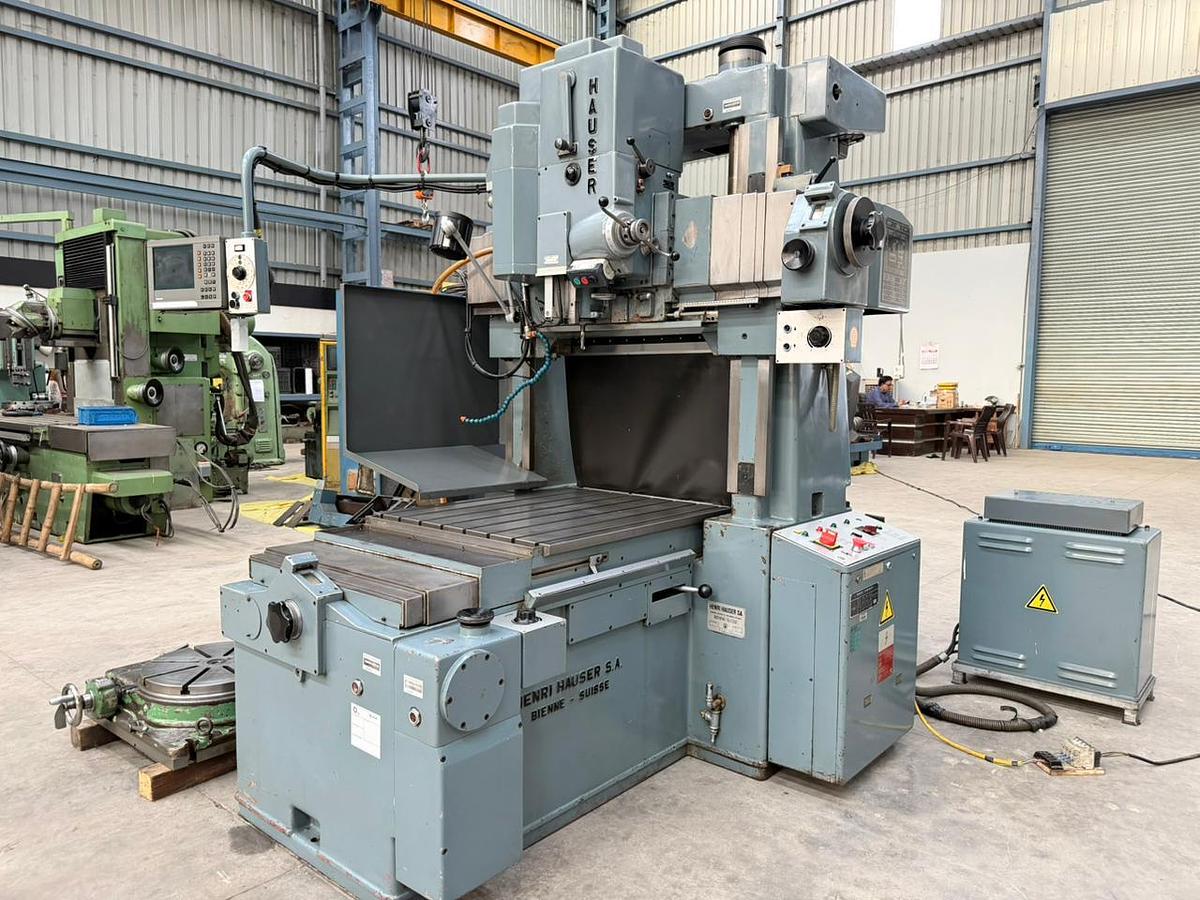

Hauser Switzerland M5 Jig Boring Machine

High-precision Jig Boring Machine made by Hauser (Switzerland), Model M5, available in excellent working condition. Hauser Jig Boring Machines are widely known for their high precision and accuracy, making them suitable for tool rooms, die & mould work, precision hole location, and coordinate boring applications.

This machine is supplied as a complete, well-equipped package, including a SIP PD-4 Rotary Table (Diameter 450 mm), 4-Axis Heidenhain DRO system, Multiple micro-boring heads, Assorted tools, drills, and many other accessories. The technical details are as follows -

Make - Hauser (Switzerland)

Model - M5

Table Size - 900 mm x 770 mm

Longitudinal Travels - 700 mm

Transversal Travels - 500 mm

Distance Between Columns - 900 mm

Max. Height between Spindle & Table - 800 mm

Spindle Feed Travel - 170 mm

Spindle Speeds - 10 to 2000 rpm

Spindle Taper - Morse No. 4

Spindle Feed Rate - 0.02 mm/rev to 0.20 mm/rev

Spindle Diameter - 90 mm

- Equipped with 4-Axis Heidenhain DRO.

- Complete with SIP PD-4 Rotary Table (Diameter 450 mm).

- Complete with multiple micro-boring heads, assorted tools, drills & accessories.

- Machine is in excellent working condition.
