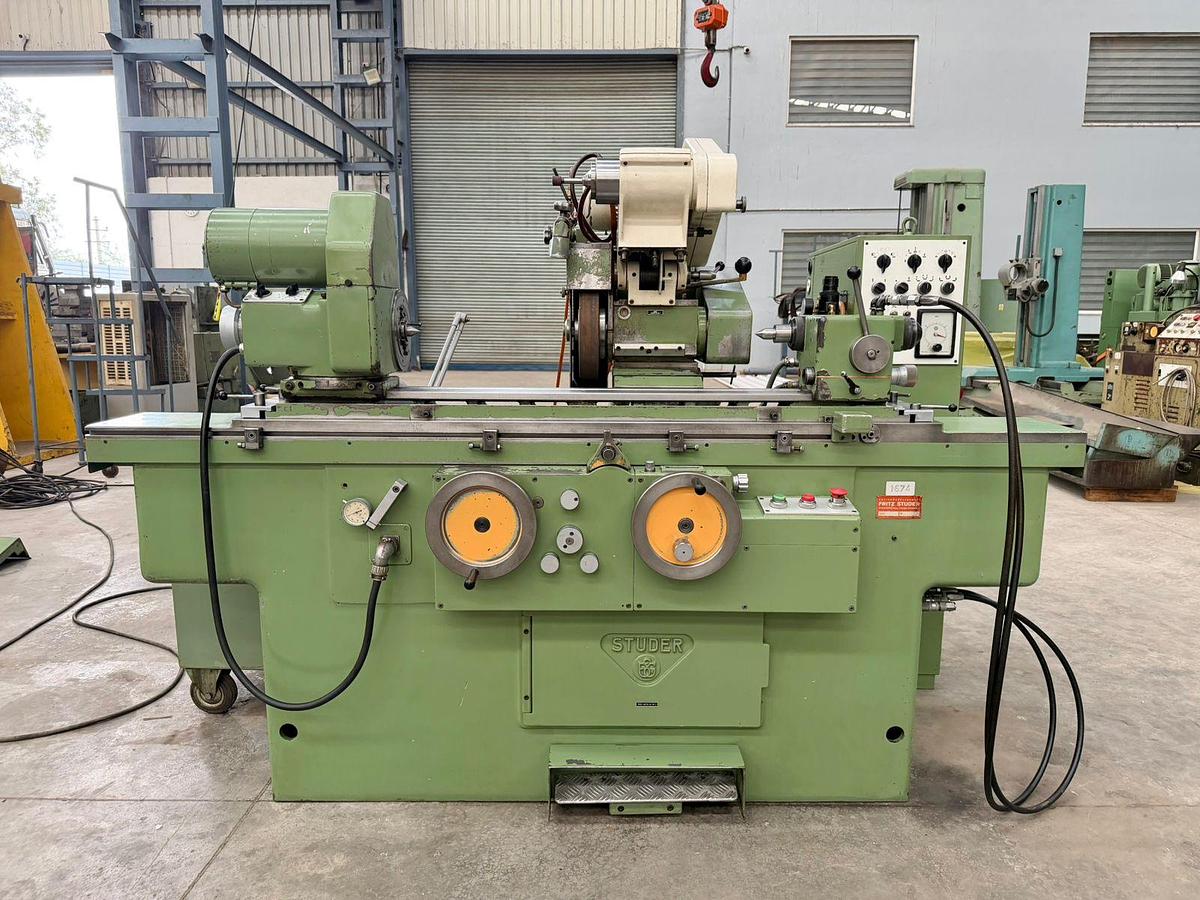

STUDER RHU-750 High Precision Universal Cylindrical Grinder

High-Precision Universal Cylindrical Grinding Machine made by Studer (Switzerland), Model RHU-750, available in excellent working condition. The machine is equipped with an Internal Grinding Attachment, making it suitable for both External & Internal Grinding Operations. The Max. Job Diameter is 250 mm and the Max. Job Length is 750 mm. It is a complete Auto-Cycle machine with features such as Auto-Cut, Auto-Compensation, Plunge Grinding, Delay, Spark-Out & Automatic Wheel Retraction. The machine is complete with Wheel Flanges, Wheel Dresser, Chuck, Magnetic Chuck, Coolant Tank, Coolant Pump & many other accessories. The Technical Specifications are as follows -

Make - Studer (Switzerland)

Model - RHU-750

Center Height - 125 mm

Max. Job Diameter - 250 mm

Max. Job Length - 750 mm

Grinding Wheel Size - 300 mm Diameter × 50 mm Width

Least Count - 1 Micron (0.001 mm)

Internal Grinding Spindle Diameter - 100 mm

Max. Speed of Internal Grinding Spindle - 60,000 RPM

- Equipped with Internal Grinding Attachment.

- Machine can work in Complete Auto-Cycle Mode for both Shaft Grinding & Plunge Grinding.

- Features Delay, Hydraulic Tailstock, Auto-Cut & Auto-Compensation.

- Features Plunge Grinding, Spark-Out & Automatic Wheel Retraction.

- Complete with Wheel Dresser, Wheel Flanges, Spare Wheels, Chuck & Magnetic Chuck.

- Complete with Coolant Tank, Coolant Pump & many other accessories.

- Electrical Drawings are available.

- Machine is in Excellent Working Condition.
