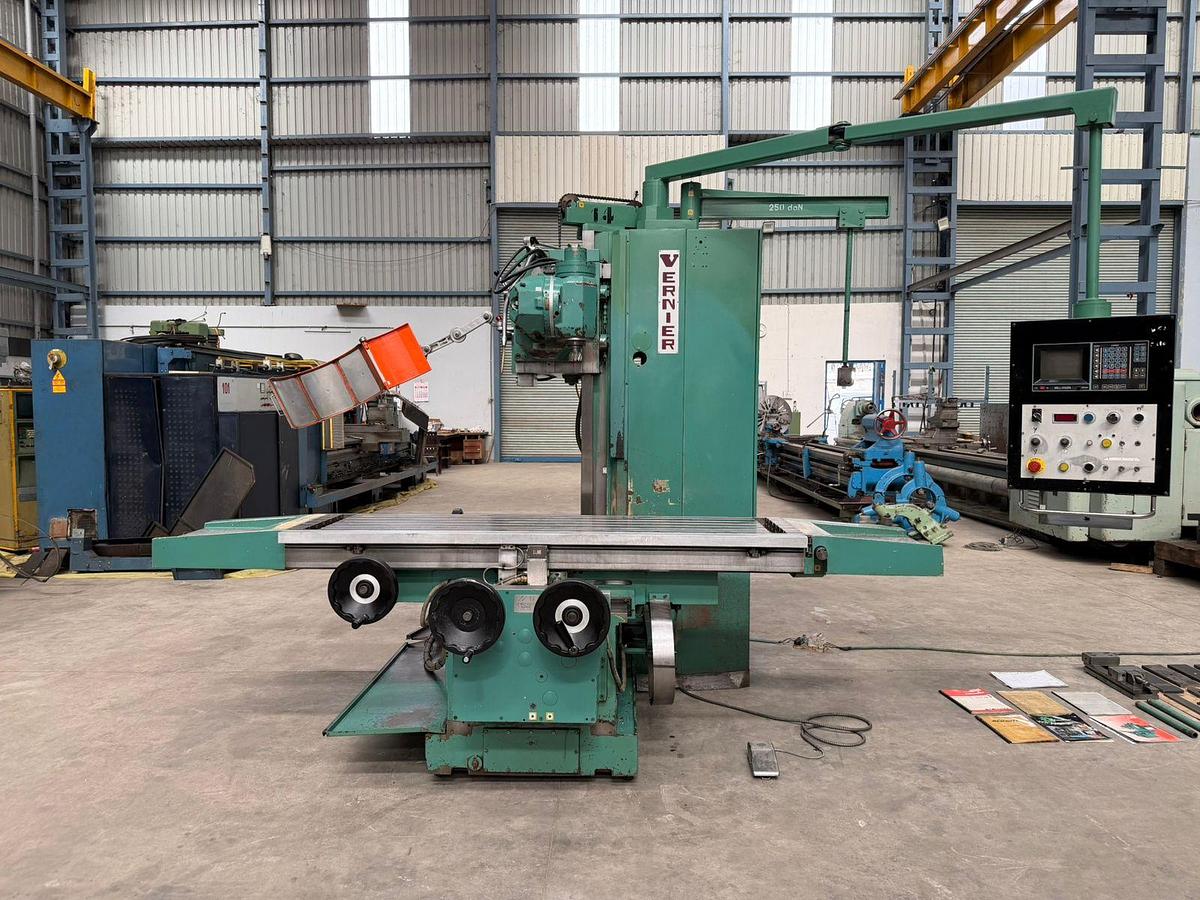

Vernier France 2000 mm x 500 mm Bed-Type Milling Machine

Bed-Type Milling Machine made by Vernier (France), Model DB 59L, available in excellent working condition. The machine has a Table Size of 2000 mm × 500 mm and is equipped with a Double-Swivel Type Universal Milling Head along with a 3-Axis DRO System. A Parking-Type System is provided for easy mounting & dismounting of the Vertical Milling Head. The machine is capable of performing Horizontal, Vertical & Angular Milling Operations. The technical details are as follows -

Make - Vernier (France)

Model - DB 59L

Table Size - 2000 mm × 500 mm

XYZ Travels - 1500 mm × 575 mm × 900 mm

Spindle Speeds - 16 RPM to 1600 RPM

Spindle Taper - ISO 40

Table Feed Rates - 5 mm/min to 400 mm/min

Max. Distance between Table & Vertical Spindle - 835 mm

Spindle Motor Power - 9.2 kW

Machine Weight - 6.20 Tons (Approximately)

- Equipped with a 3-Axis DRO System.

- Complete with a Double-Swivel Type Universal Vertical Milling Head.

- Parking-Type System provided for easy mounting & dismounting of the Vertical Head for Horizontal Milling Operations.

- Operating Manual & Electrical Drawings are available.

- Machine is in Excellent Working Condition.
