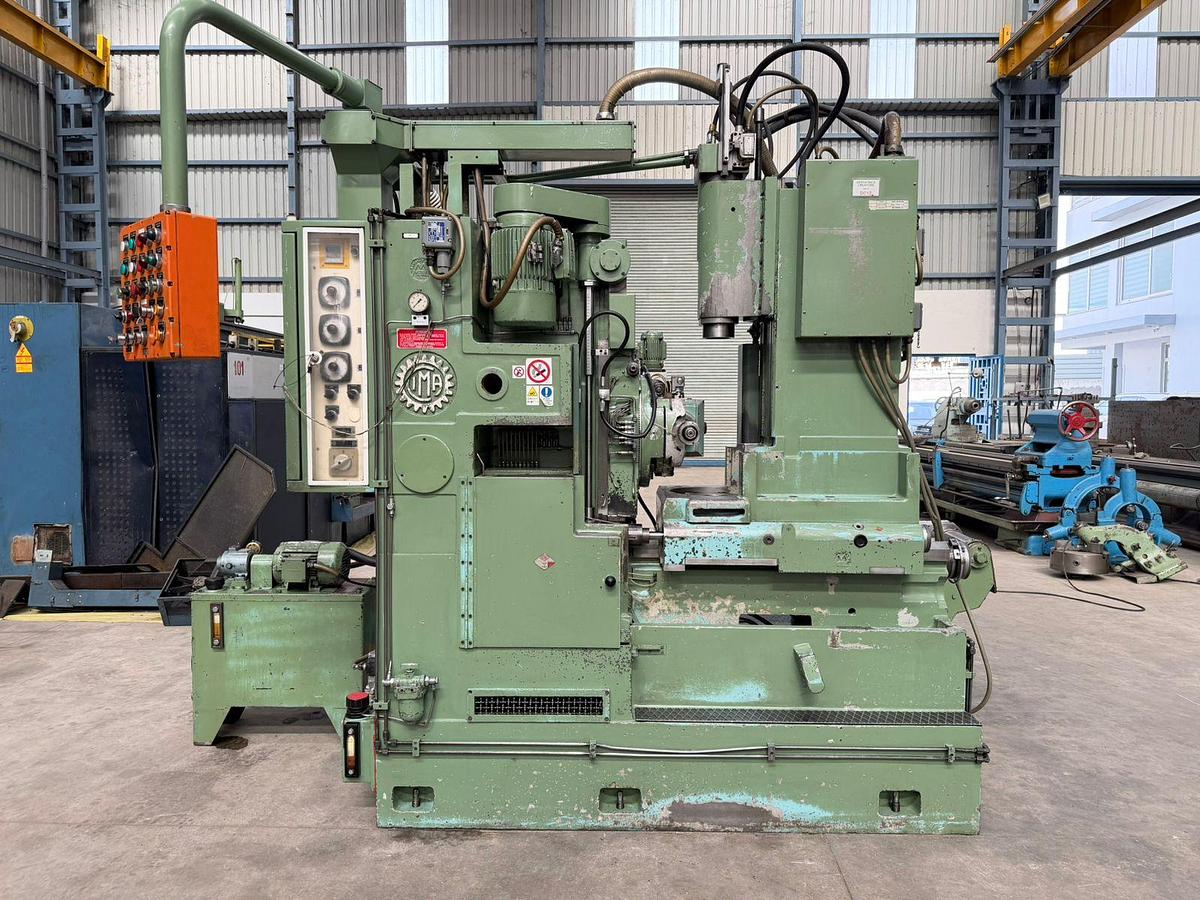

CIMA P4AUR Hydraulic Gear Hobbing Machine
CIMA P4AUR Hydraulic Gear Hobbing Machine
Contact us for price
Location:New Delhi, India
Description
High-Production Hydraulic Gear Hobbing Machine made by CIMA (Italy), Model P4AUR, available in excellent working condition. It is a Heavy-Duty, Hydraulic, Auto-Cycle Gear Hobbing Machine suitable for high-production gear cutting operations. The machine has a Maximum Module Capacity of 6 Modules and can accommodate Gear Diameter up to 300 mm. The machine is complete with Change Gears, Arbour, Chip Conveyor, Splash Guards, Coolant Tank & Pump, Operating Manuals & Electrical Drawings. The technical details are as follows -
Make - CIMA (Italy)
Model - P4AUR
Max. Gear Diameter - 300 mm
Max. Module Capacity - 6 Modules
Vertical Travel of Hob Slide - 220 mm
Max. Hob Cutter Dimensions - 120 mm Diameter × 120 mm Length
Hob Rotation Speeds - 145 RPM to 500 RPM
Max. Height from Table Top to Center - 800 mm
Table Diameter - 310 mm
Table Bore - 85 mm
Hob Shifting - 100 mm
Type - Hydraulic | Auto-Cycle | High-Production
- Complete with Change Gears, Arbour, Chip Conveyor, Coolant Tank & Pump.
- Operating Manual & Electrical Drawings are available.
- Machine is in Excellent Working Condition.
Specifications
| Manufacturer | CIMA |
| Model | P4AUR |
| Condition | Used |
| Stock Number | 2841 |
| Make | CIMA (Italy) |
| Model | P4AUR |
| Max. Gear Diameter | 300 mm |
| Max. Module Capacity | 6 Modules |
| Vertical Travel of Hob Slide | 220 mm |
| Max. Hob Cutter Dimensions | 120 mm Diameter × 120 mm Length |
| Hob Rotation Speeds | 145 RPM to 500 RPM |
| Max. Height from Table Top to Center | 800 mm |
| Table Diameter | 310 mm |
| Table Bore | 85 mm |
| Hob Shifting | 100 mm |
| Type | Hydraulic | Auto-Cycle | High-Production |
| Other Information 1 | - Complete with Change Gears, Arbour, Chip Conveyor, Coolant Tank & Pump. |
| Other Information 2 | - Operating Manual & Electrical Drawings are available. |
| Other Information 3 | - Machine is in Excellent Working Condition. |
