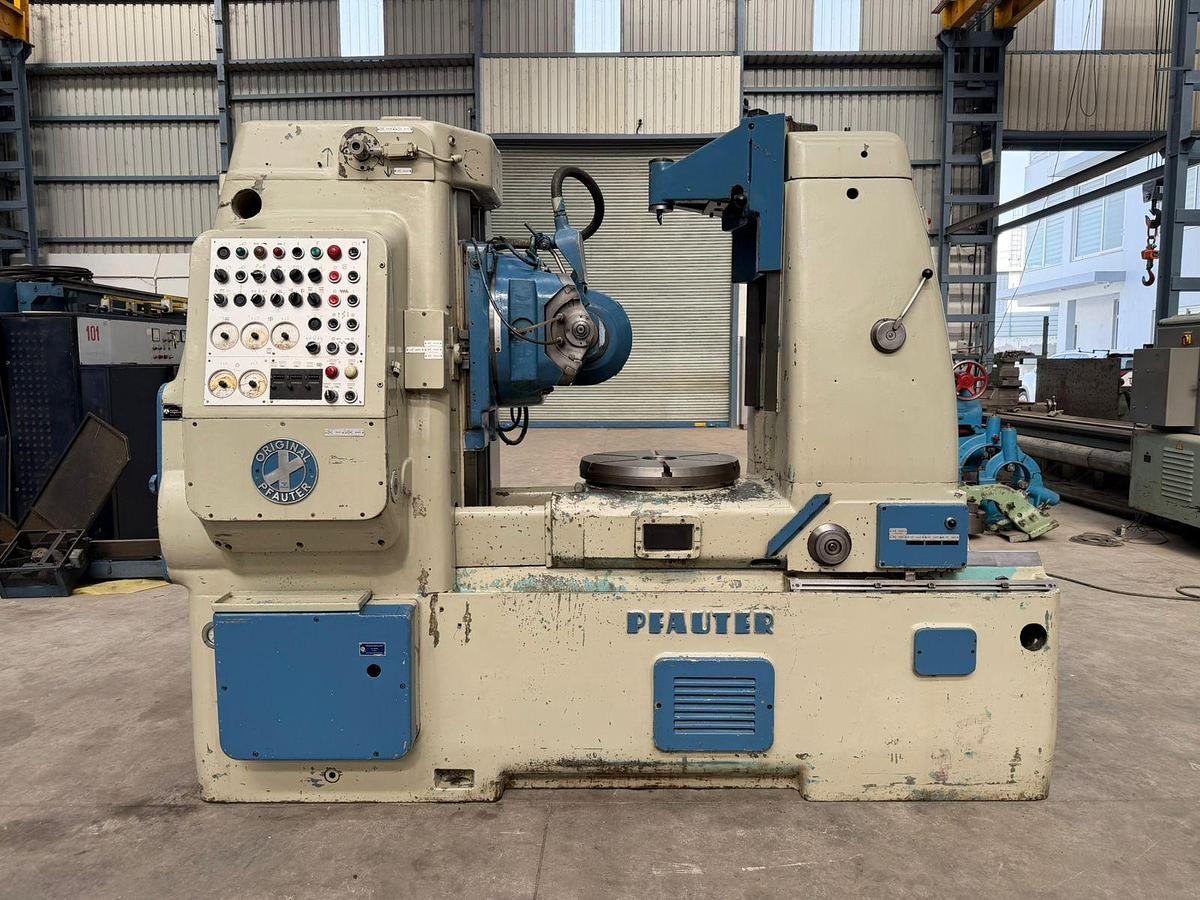

Pfauter P630 High-Production Gear Hobbing Machine

High-Production Hydraulic Gear Hobbing Machine made by Pfauter (Germany), Model P630, available in excellent working condition. The machine has a Maximum Module Capacity of 10 Modules and can accommodate Gear Diameters up to 630 mm. It is an original Double-Cut Cycle type Gear Hobbing Machine in which the Hob Rotation Speeds and Feed Rates can be independently set differently for the 1st Cut and 2nd Cut, making it suitable for efficient and high-production gear cutting operations. The machine is complete with Change Gears, Arbours, Mandrel, Chip Conveyor, Covers, Splash Guards, Coolant Tank, Coolant Pump, Operating Manual & Electrical Drawings. The technical details are as follows -

Make - Pfauter (Germany)

Model - P630

Max. Module Capacity - 10 Modules

Max. Gear Diameter - 630 mm

Max. Vertical Travel of Hob Slide - 425 mm

Table Diameter - 550 mm

Max. Hob Cutter Size - 192 mm Diameter × 215 mm Length

Max. Hob Shifting - 200 mm

Table Bore Diameter - 125 mm

Max. Height between Table Top & Center - 750 mm

Machine Weight - 9.10 Tons (Approximately)

- Original Double-Cut Cycle Machine in which Hob Rotation Speeds & Feed Rates can be independently set for the 1st & 2nd Cut.

- Complete with Change Gears, Arbours, Mandrels, Chip Conveyor, Coolant Tank & Pump.

- Complete with Covers, Splash Guards & other accessories.

- Operating Manual & Electrical Drawings are available.

- Machine is in Excellent Working Condition.
