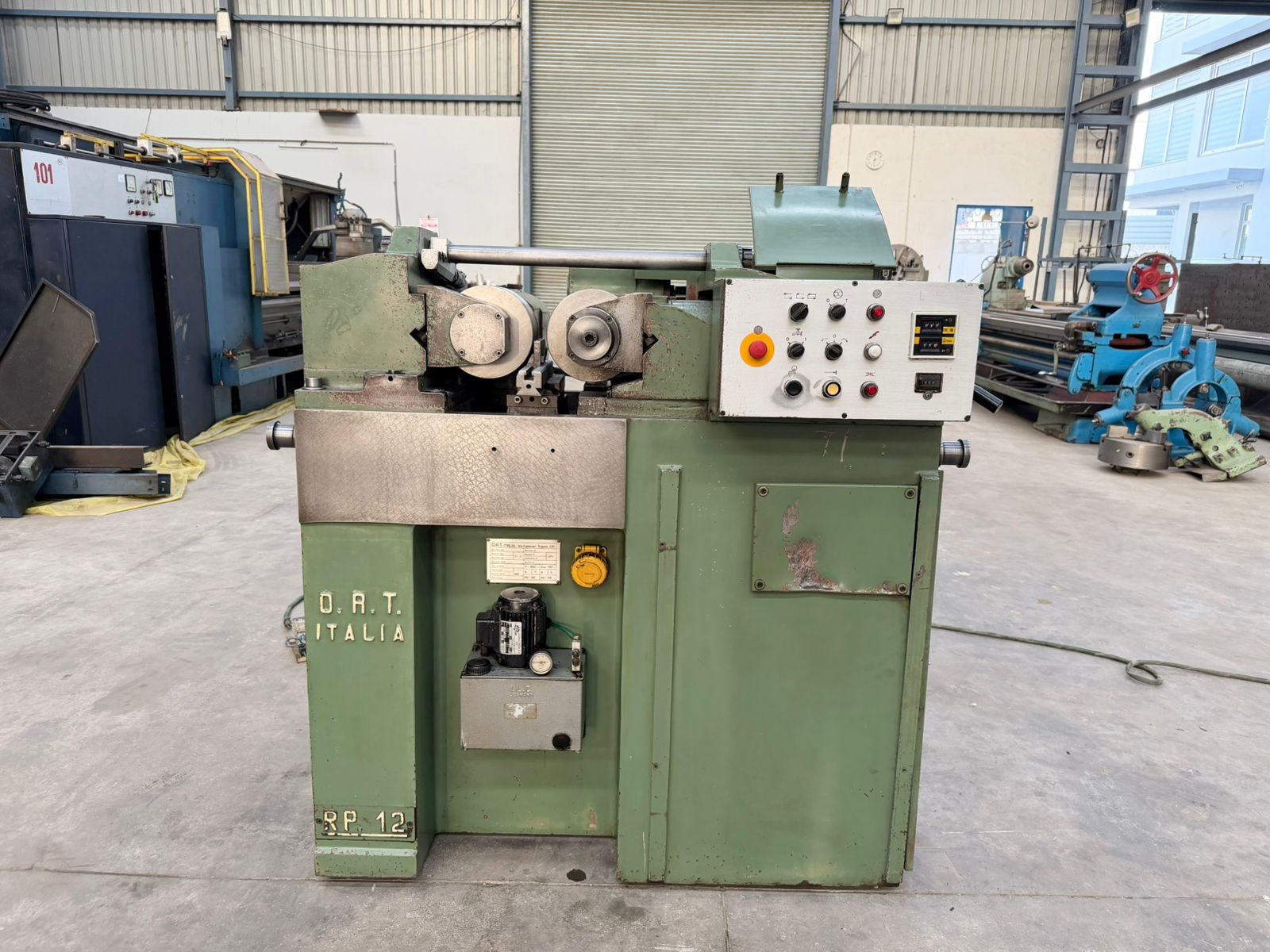

ORT Italy RP-12 Hydraulic Thread Rolling Machine

Description

Hydraulic Two-Die Thread Rolling Machine made by ORT (Italy), Model RP-12, available in excellent working condition. The machine has a Maximum Rolling Force of 12 Tons and a Workpiece Diameter Capacity of 2 mm to 40 mm. The technical details are as follows:

Make - ORT (Italy)

Model - RP-12

Max. Rolling Force - 12 Tons

Workpiece Diameter Range - 2 mm to 40 mm

Max. Thread Roll Size - 180 mm Diameter × 150 mm Width

Roll Bore Diameter - 54 mm

Spindle Speeds - 23 to 92 RPM

Machine Weight - 1455 kg

- Complete with 4 Sets of Thread Rolls.

- Machine can operate in both Auto-Cycle and Manual Modes.

- It is a Two-Die type Hydraulic Thread Rolling Machine.

- Machine is in excellent working condition.

Specifications

Manufacturer	ORT
Model	RP-12
Condition	Used
Stock Number	2845
Make	ORT (Italy)
Model	RP-12
Max. Rolling Force	12 Tons
Workpiece Diameter Range	2 mm to 40 mm
Max. Thread Roll Size	180 mm Diameter × 150 mm Width
Roll Bore Diameter	54 mm
Spindle Speeds	23 to 92 RPM
Machine Weight	1455 kg
Other Information 1	- Complete with 4 Sets of Thread Rolls.
Other Information 2	- Machine can operate in both Auto-Cycle and Manual Modes.
Other Information 3	- It is a Two-Die type Hydraulic Thread Rolling Machine.
Other Information 4	- Machine is in excellent working condition.
