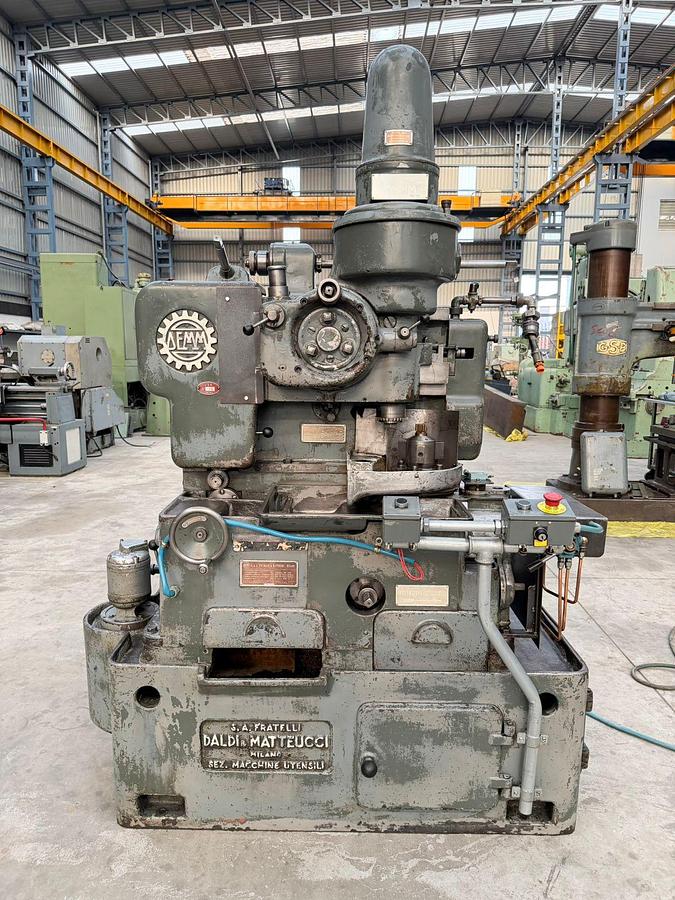

DEMM Italy SRI-180 Gear Shaper Machine
DEMM Italy SRI-180 Gear Shaper Machine
Contact us for price
Location:New Delhi, India
Description
Gear Shaping Machine made by Demm (Italy), Model SRI-180, available in excellent working condition. The machine has a maximum capacity of Module 4.5 and a maximum gear diameter of 180 mm. The machine is complete with Change Gears, Operating Manual, Electrical Drawings and is also equipped with an Automatic Pneumatic Job Clamping system. The technical details are as follows -
Make - Demm (Italy)
Model - SRI-180
Max. Module Capacity - 4.5 Modules
Max. Gear Diameter - 180 mm
Max. Stroke Length - 55 mm
Stroke Rates - 147 to 464 strokes/min
Spindle Diameter - 85 mm
Spindle Type - Hollow
Height between Table & Spindle Body - 200 mm
Max. Swing Diameter of Job - 220 mm
- Automatic Pneumatic Job Clamping system.
- Complete with Change Gears & other accessories.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Demm |
| Model | SRI-180 |
| Condition | Used |
| Stock Number | 2849 |
| Make | Demm (Italy) |
| Model | SRI-180 |
| Max. Module Capacity | 4.5 Modules |
| Max. Gear Diameter | 180 mm |
| Max. Stroke Length | 55 mm |
| Stroke Rates | 147 to 464 strokes/min |
| Spindle Diameter | 85 mm |
| Spindle Type | Hollow |
| Height between Table & Spindle Body | 200 mm |
| Max. Swing Diameter of Job | 220 mm |
| Other Information 1 | - Automatic Pneumatic Job Clamping system. |
| Other Information 2 | - Complete with Change Gears & other accessories. |
| Other Information 3 | - Operating Manual & Electrical Drawings are available. |
| Other Information 4 | - Machine is in excellent working condition. |
