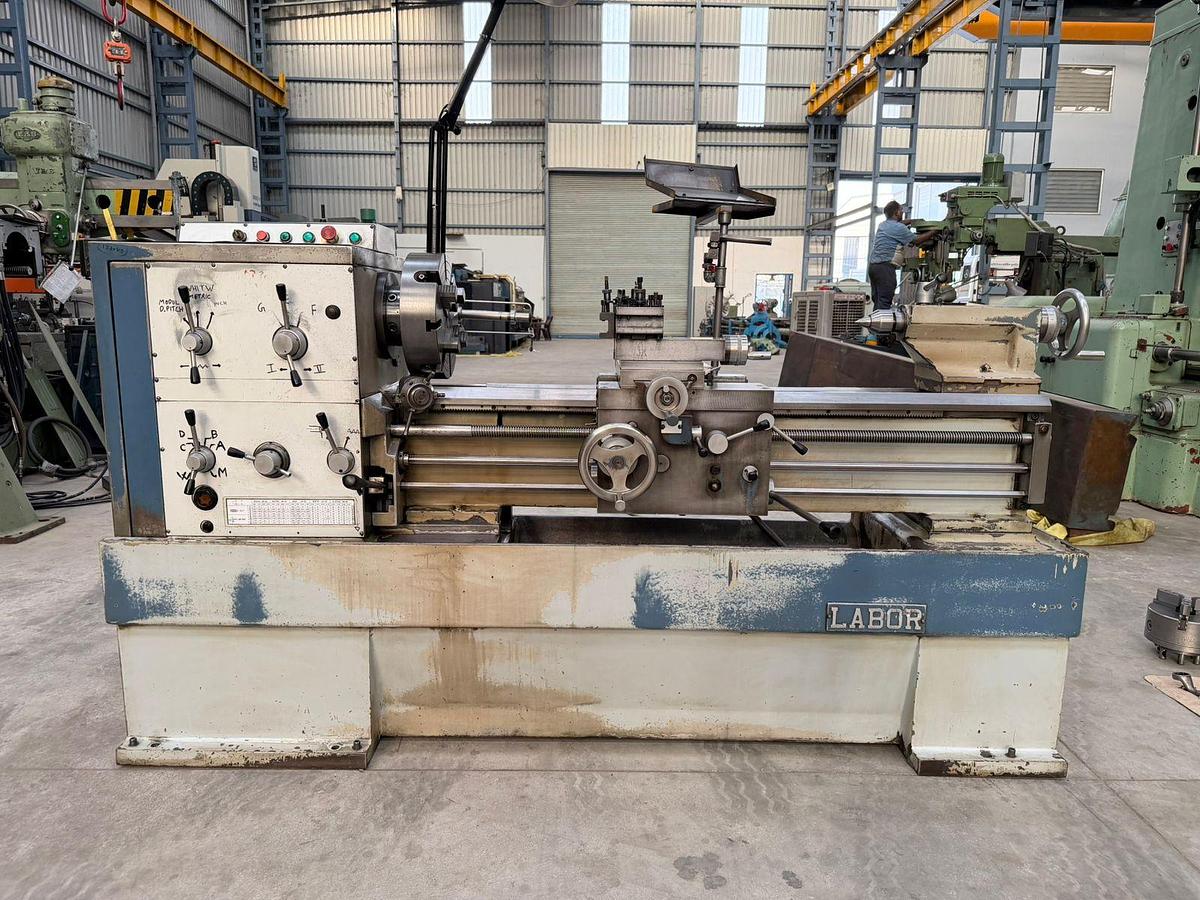

Labor Italy 1000 mm Length Gap-Bed Lathe Machine

Labor (Italy) make Gap-Bed type Lathe Machine, Model 180S, available in excellent working condition. The machine has a Distance Between Centres of 1000 mm and a Maximum Swing in Gap of 570 mm. It is complete with 4-Jaw Chuck, 3-Jaw Chuck, Steady Rest, Follow Rest, Tool Holders and other accessories. The technical details are as follows -

Make - Labor (Italy)

Model - 180S

Center Height - 185 mm

Max. Length of Job - 1000 mm

Max. Job Diameter over Cross-Slide - 210 mm

Max. Job Diameter over Bed - 370 mm

Max. Job Diameter over Gap-Bed - 570 mm

4-Jaw Chuck Diameter - 305 mm

3-Jaw Chuck Diameter - 200 mm

Bed Width - 285 mm

Spindle Speeds - 46 rpm to 1750 rpm

Spindle Bore - 52 mm

- Complete with Steady Steady, Follow Rest, & other accessories.

- Operating Manuals and Electrical Drawings are available.

- Machine is in excellent working condition.
