Stanko 165 x 2800 mm Length Heavy Duty Lathe Machine
Stanko 165 x 2800 mm Length Heavy Duty Lathe Machine
Contact us for price
Location:New Delhi, India
Description

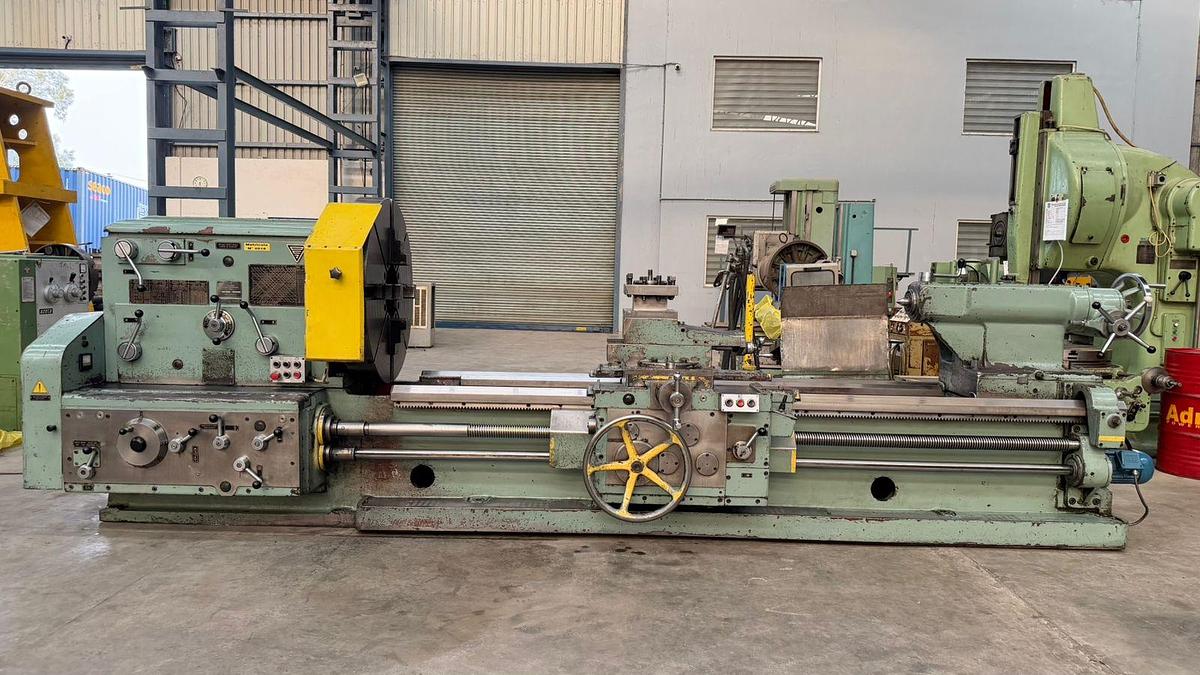

Heavy-duty Lathe Machine made by Stanko (Russia), Model 165, available in excellent working condition. It is a robust Heavy-Duty Centre Lathe with a Swing Over Bed of 1040 mm, Distance Between Centres of 2800 mm, a Bed Width of 770 mm, and an approximate machine weight of 11.86 Tons. The machine is suitable for heavy-duty turning, facing, boring and threading applications. The technical details are as follows -
Make - Stanko (Russia)
Model - 165
Center Height - 520 mm
Max. Length of Job - 2800 mm
Max. Job Diameter over Cross-Slide - 710 mm
Max. Job Diameter over Bed - 1040 mm
Spindle Speeds - 5 to 500 RPM
Bed Width - 770 mm
Chuck Diameter - 1000 mm
Spindle Bore - 90 mm
Swing Diameter near Chuck - 1120 mm
Machine Weight - 11.86 Tons (approximately)
- Complete with Steady Rest and Follow Rest.
- Motorised Rapid Travels of the Carriage and Cross-Slide.
- Operating Manual and Electrical Drawings available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Stanko |
| Model | 165 |
| Condition | Used |
| Stock Number | 2852 |
| Make | Stanko (Russia) |
| Model | 165 |
| Center Height | 520 mm |
| Max. Length of Job | 2800 mm |
| Max. Job Diameter over Cross-Slide | 710 mm |
| Max. Job Diameter over Bed | 1040 mm |
| Spindle Speeds | 5 to 500 RPM |
| Bed Width | 770 mm |
| Chuck Diameter | 1000 mm |
| Spindle Bore | 90 mm |
| Swing Diameter near Chuck | 1120 mm |
| Machine Weight | 11.86 Tons (approximately) |
| Other Information 1 | - Complete with Steady Rest and Follow Rest. |
| Other Information 2 | - Motorised Rapid Travels of the Carriage and Cross-Slide. |
| Other Information 3 | - Operating Manual and Electrical Drawings available. |
| Other Information 4 | - Machine is in excellent working condition. |
