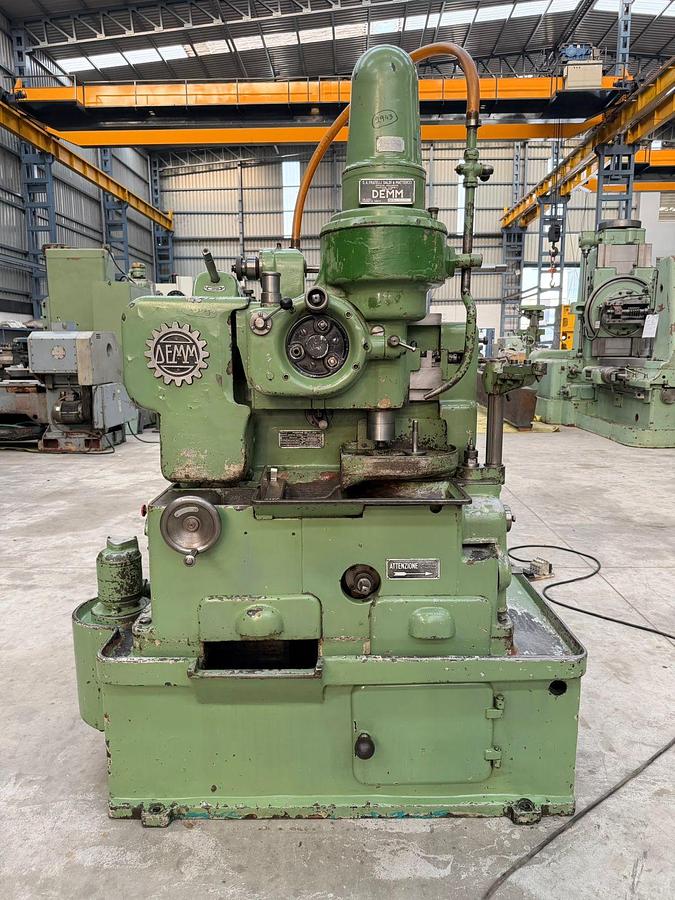

DEMM Italy SRI-180 Gear Shaper Machine with Tailstock
DEMM Italy SRI-180 Gear Shaper Machine with Tailstock
Contact us for price
Location:New Delhi, India
Description
Gear Shaping Machine made by Demm (Italy), Model SRI-180, available in excellent working condition. The machine is equipped with a Tailstock, making it suitable for long shafts, pinions, splined components and other long-length gear cutting applications. The machine has a maximum module capacity of 4.5 and a maximum gear diameter of 180 mm. The machine is complete with Change Gears, Operating Manual, Electrical Drawings and other accessories. The technical details are as follows -
Make - Demm (Italy)
Model - SRI-180
Max. Module Capacity - 4.5 Modules
Max. Gear Diameter - 180 mm
Max. Stroke Length - 55 mm
Stroke Rates - 147 to 464 strokes/min
Spindle Diameter - 85 mm
Spindle Type - Hollow
Height between Table & Spindle Body - 140 mm
Max. Swing Diameter of Job - 220 mm
- Equipped with Tailstock for long-length jobs.
- Complete with Change Gears and other accessories.
- Operating Manual & Electrical Drawings are available.
- Machine is in excellent working condition.
Specifications
| Manufacturer | Demm |
| Model | SRI-180 |
| Condition | Used |
| Stock Number | 2943 |
| Make | Demm (Italy) |
| Model | SRI-180 |
| Max. Module Capacity | 4.5 Modules |
| Max. Gear Diameter | 180 mm |
| Max. Stroke Length | 55 mm |
| Stroke Rates | 147 to 464 strokes/min |
| Spindle Diameter | 85 mm |
| Spindle Type | Hollow |
| Height between Table & Spindle Body | 140 mm |
| Max. Swing Diameter of Job | 220 mm |
| Other Information 1 | - Equipped with Tailstock for long-length jobs. |
| Other Information 2 | - Complete with Change Gears and other accessories. |
| Other Information 3 | - Operating Manual & Electrical Drawings are available. |
| Other Information 4 | - Machine is in excellent working condition. |
