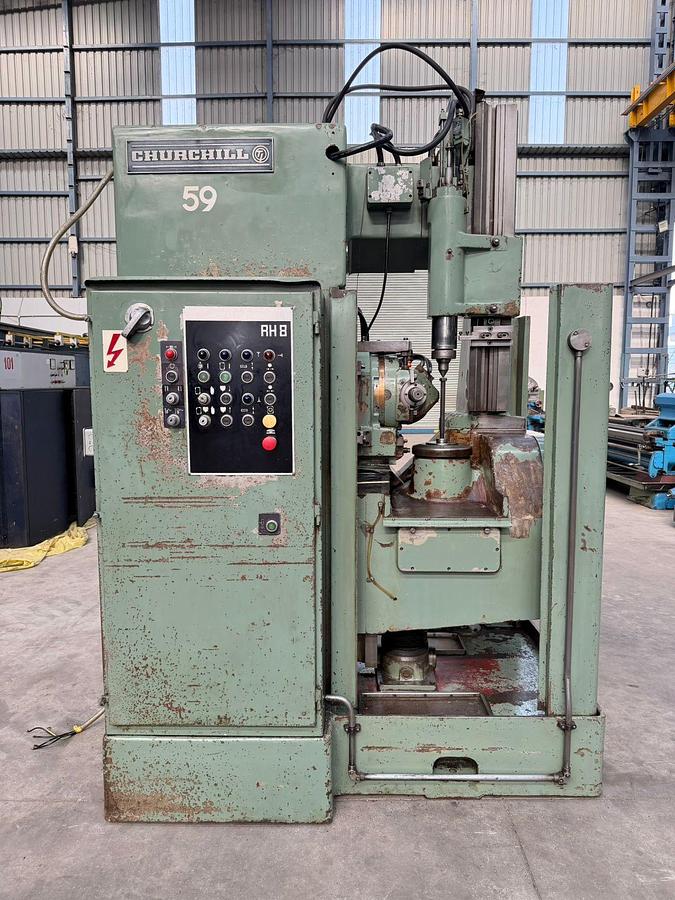

Churchill RH8 Spline Gear Hobbing Machine

Churchill RH8 Spline Gear Hobbing Machine

Contact us for price

Location:New Delhi, India

or
Call +91 98182 75782

Description

Churchill (England) make Spline & Spur Gear Hobbing Machine, Model RH8-15, available in excellent working condition. The machine has a Maximum Module Capacity of 6 Modules and can accommodate jobs up to 940 mm length, making it ideal for long shafts, splines and other long-length components. It is an Automatic Cycle High-Production Vertical Gear Hobbing Machine complete with Change Gears, Fixtures and other accessories. The technical details are as follows -


Make - Churchill (England)

Model - RH8 - 15

Max. Job Diameter - 203 mm (8 inches)

Max. Vertical Travel of Table - 203 mm (8 inches)

Max. Module Capacity - 6 Modules

Max. Height between Work Table to Tailstock Centre - 940 mm

Min. / Max. Height between Work Table to Hob Centre - 191 mm / 393 mm

Max. Hob Cutter Diameter - 102 mm

- Extra Height machine suitable for spline shafts and other long-length components.

- High-Production Automatic Cycle type Machine.

- Complete with Change Gears, Fixtures and other accessories.

- Machine is in excellent working condition.

Show All

Specifications

ManufacturerChurchill
ModelRH8 - 15
ConditionUsed
Stock Number2912
MakeChurchill (England)
ModelRH8 - 15
Max. Job Diameter203 mm (8 inches)
Max. Vertical Travel of Table203 mm (8 inches)
Max. Module Capacity6 Modules
Max. Height between Work Table to Tailstock Centre940 mm
Min. / Max. Height between Work Table to Hob Centre191 mm / 393 mm
Max. Hob Cutter Diameter102 mm
Other Information 1- Extra Height machine suitable for spline shafts and other long-length components.
Other Information 2- High-Production Automatic Cycle type Machine.
Other Information 3- Complete with Change Gears, Fixtures and other accessories.
Other Information 4- Machine is in excellent working condition.
