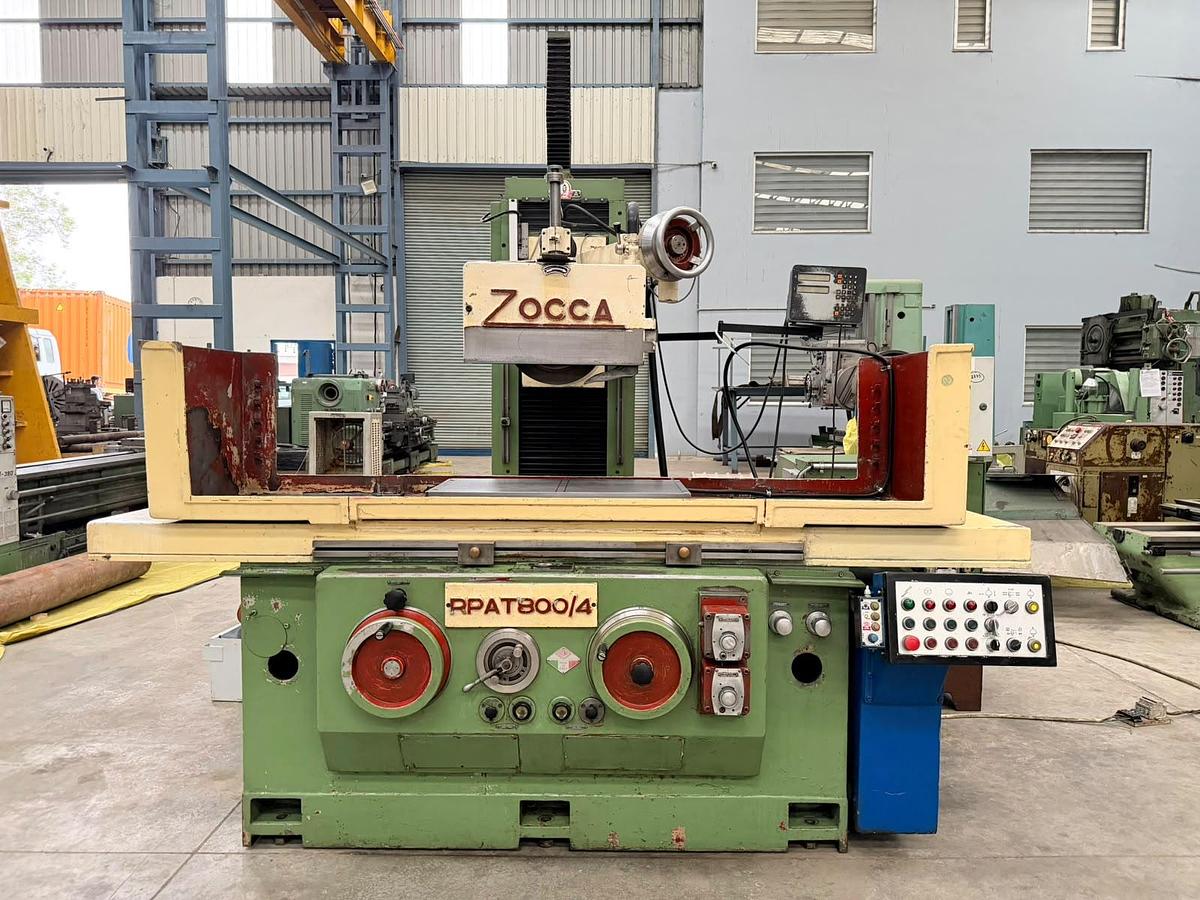

Zocca Italy 400 mm x 800 mm Heavy-Duty Hydraulic Surface Grinder

Zocca (Italy) make Heavy-Duty Hydraulic Surface Grinding Machine, Model RPAT 800/4, available in excellent working condition. The machine is equipped with a 400 mm × 800 mm Magnetic Chuck and features a column-moving cross-travel design, where the complete vertical column traverses across the table, providing superior rigidity and accuracy for heavy-duty precision grinding applications. It is a Heavy-Duty Hydraulic Surface Grinder equipped with a 400 mm Diameter × 75 mm Wide Grinding Wheel and designed for precision surface grinding applications. The machine is equipped with 2-Axis DRO and is complete with Hydraulic Wheel Dresser, Coolant Filtration Unit, Coolant Tank, Pump and Splash Guards. It is a Fully Automatic machine featuring Automatic Depth Adjustment (Auto-Cut) and Automatic Plunge Grinding Cycles. The technical details are as follows -

Make - Zocca (Italy)

Model - RPAT 800/4

Magnet Size - 400 mm x 800 mm

Grinding Wheel Size - Diameter 400 mm x 75 mm Width

Max. Height between Magnet to Wheel Centre - 505 mm

Longitudinal Travel - 900 mm

Cross Travel - 400 mm

Least Count of Vertical Travel - 5 Microns (0.005 mm)

- Equipped with a Wheel-Top Mounted Hydraulic Wheel Dresser.

- Features Automatic Depth Adjustment (Auto-Cut) and Automatic Plunge Grinding Cycles.

- Rigid Column-Moving Design for Heavy-Duty Precision Grinding Applications.

- Equipped with 2-Axis DRO on Cross & Vertical Travels.

- Complete with Coolant Filtration Unit, Coolant tank & Coolant Pump and Splash Guards.

- Machine is in excellent working condition.
