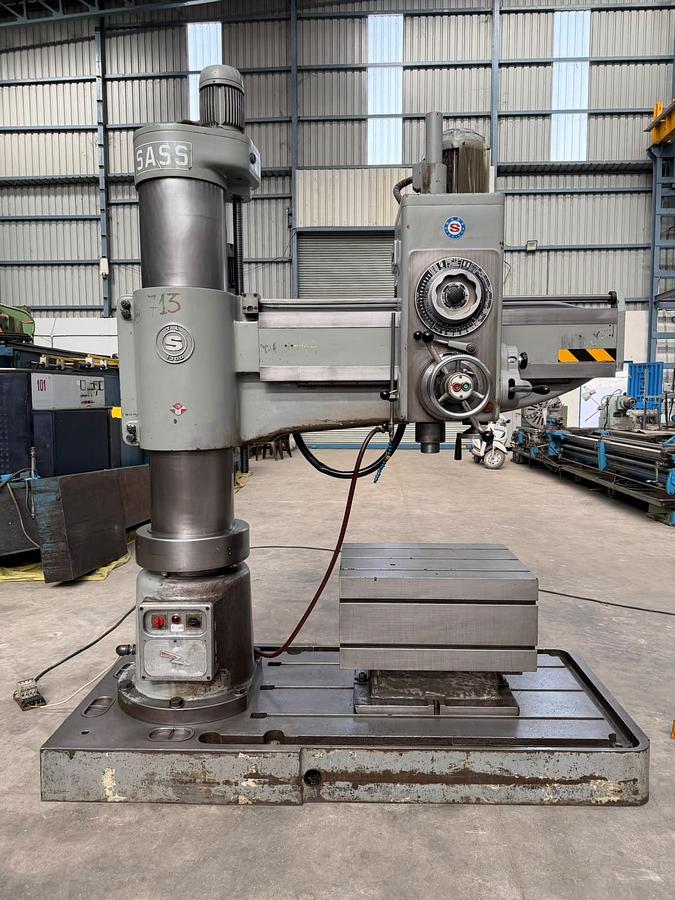

SASS Italy 60 mm x 1430 mm Radial Drilling Machine

SASS (Italy) make Heavy Duty Radial Drilling Machine, Model TL-1300, available in excellent working condition. The machine has a Drilling Capacity of 60 mm and a Radial Arm Length of 1430 mm, making it suitable for medium to heavy-duty drilling, tapping and boring applications. The machine is equipped with a Tilting Cube Table, making it suitable for angular drilling, taper drilling and tapping operations. It features Hydraulic Automatic Clamping for both the Drilling Head and Radial Arm, ensuring quick positioning and rigid locking during operation. The technical details are as follows -

Make - SASS (Italy)

Model - TL-1300

Drilling Capacity - 60 mm

Spindle Diameter - 85 mm

Arm Length - 1430 mm

Spindle Speeds - 32 rpm to 1945 rpm

Spindle Taper - MT-5

Spindle Feed Travel - 400 mm

Spindle Feed Rates - 0.09 mm/rev to 1.50 mm/rev

Vertical Travel of Arm - 700 mm

Max. Height between Spindle to Top of Base - 1400 mm

Tilting Cube Table Size - 750 mm x 555 mm

Tilting Angle of Cube Table - 0 to 90 degree

Machine Weight - 3.85 Tons (Approx.)

Clamping Type - Automatic ; Hydraulic

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.
