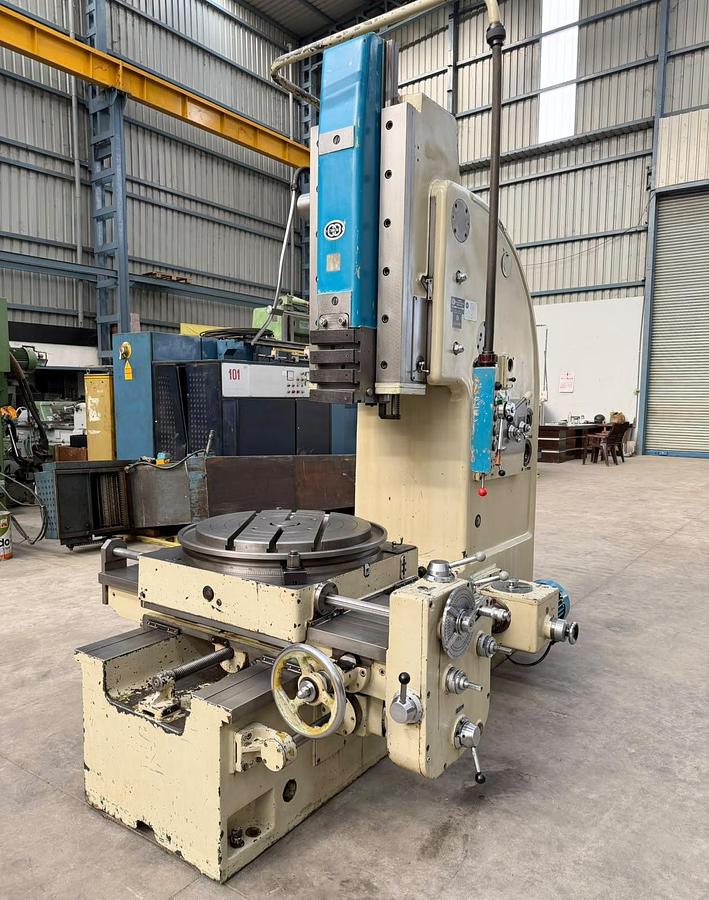

Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine

Heavy Duty Vertical Slotting Machine made by Stanko (Russia), Model 7M430, available in excellent working condition. The machine features Automatic Feed and Rapid Travels on all three table movements - Longitudinal, Cross and Rotary Table - making it highly suitable for heavy-duty production slotting operations. It has a Maximum Stroke Length of 570 mm. The Slotting Head is tiltable up to 10 degree, making it suitable for taper slotting and angular slotting operations. The technical details are as follows -

Make - Stanko (Russia)

Model - 7M430

Max. Stroke Length - 570 mm

Table Diameter - 630 mm

Longitudinal Travel - 650 mm

Cross Travel - 510 mm

Height between Table and Machine Body - 475 mm

Distance between Toolhead Edge to Column - 600 mm

Max. Distance between Table Center to Column - 1100 mm

Feed Rates - 0 to 2.4 mm/stroke

Head Tilting Range - 0 degree to 10 degree

Machine Weight - 5.50 Tons (Approximately)

- Automatic Feed & Rapid Travels on Rotary Table, Cross and Longitudinal Movements.

- Electrical Drawings & Operating Manuals are available.

- Complete with Tool Holders and various Slotting Tools.

- Machine is in excellent working condition.
