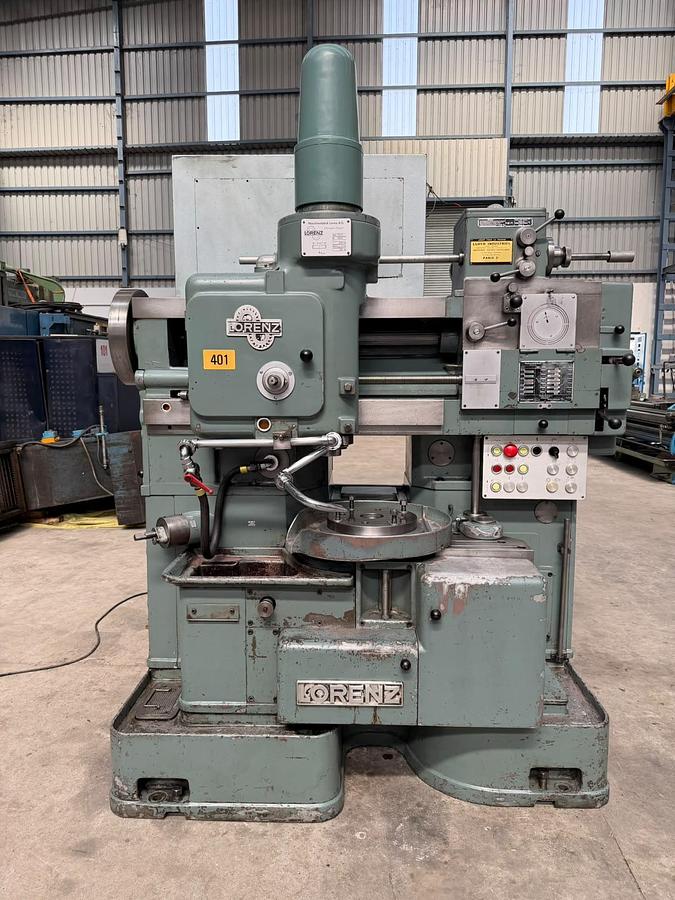

Lorenz Germany SNJ-5 Gear Shaping Machine

Lorenz (Germany) Gear Shaping Machine, Model SNJ-5, available in excellent working condition. This is one of the most advanced conventional mechanical gear shapers manufactured by Lorenz, known for its precision & improved productivity. It has a maximum module capacity of 5 modules and can cut gears up to 500 mm diameter. It is equipped with the feature of motorised rapid rotation of both the spindle and table, enabling faster setup. The machine is complete with Change Gears and additional accessories. The technical details are as follows -

Make - Lorenz (Germany)

Model - SNJ-5

Max. Module Capacity - 5 Modules

Max. Gear Diameter - 500 mm

Max. Stroke Length - 75 mm

Stroke Rates - 45 to 424 strokes/min

Spindle Diameter - 78 mm

Spindle Type - Hollow

Height between Table & Spindle Body - 265 mm

Table Bore Diameter - 120 mm

Max. Swing Diameter of Job - 600 mm

- Feature of Motorised Rapid Rotation of Spindle & Table.

- Complete with Change Gears and other accessories.

- Machine is in excellent working condition.
